Description

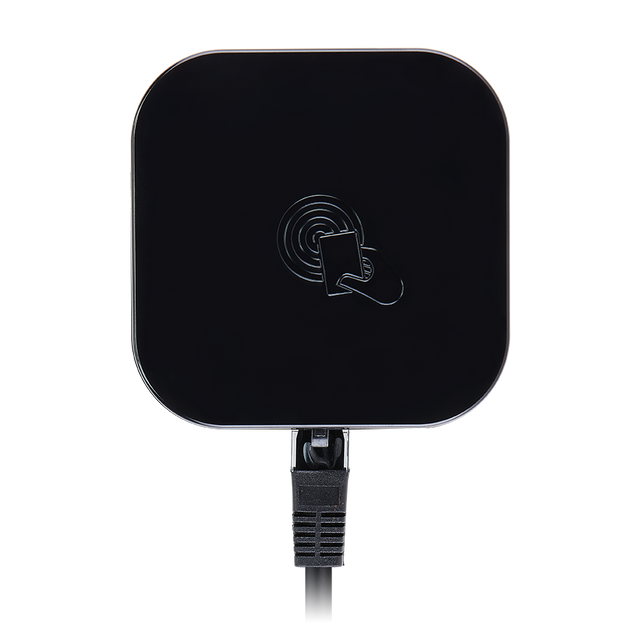

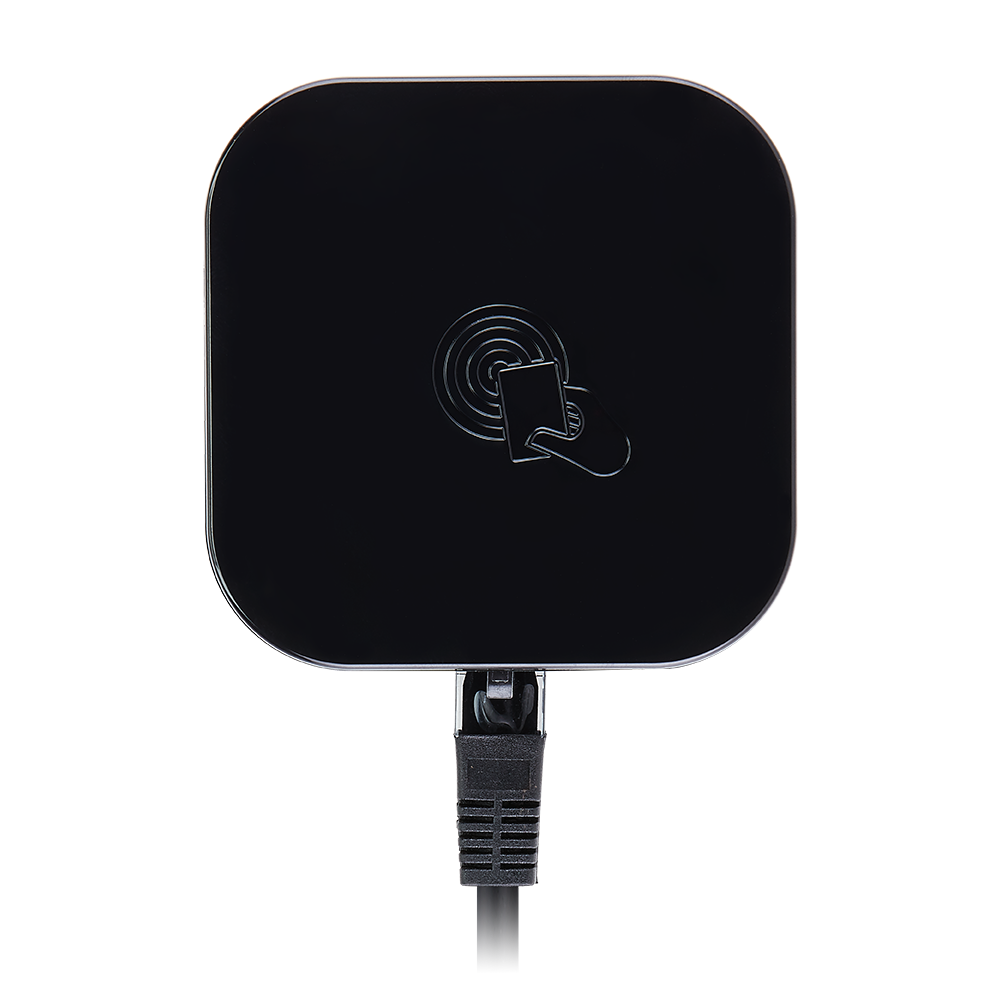

Near Field Communication (NFC) antenna designed for use with NFC readers, enabling short-range point-to-point contactless data transmission.
Built for indoor and outdoor environments, this rugged external bracket-mount design supports easy mounting on walls or metal panels and uses a durable UV-stabilized enclosure for improved robustness in outdoor deployments.
An embedded jack interface simplifies connection to an NFC reader, and custom cable options are available on request.
Connector & Cable
- Connector Type: RJ45 Jack
- Cable Length: 100cm
- Cable Type: 28 AWG (Ethernet)
Technical Specifications
Operating Temperature: -40°C to 85°C
Location: External
Mounting: Wall Mount
Type: Single
IP Rating: IP67
Impedance: 50Ω
VSWR: <1.3
Gain (Max): 8
Frequency: 13.56MHz
Length: 75mm
Width: 75mm
Height: 27.9mm
Weight: 32g
RoHS: Yes
NFC
Frequency: 13.56MHz
Connector Type: RJ45 Jack
Cable Length: 100cm
Cable Type: 28 AWG (Ethernet)
Impedance: 50Ω
VSWR: <1.3
Gain (Max): 8
