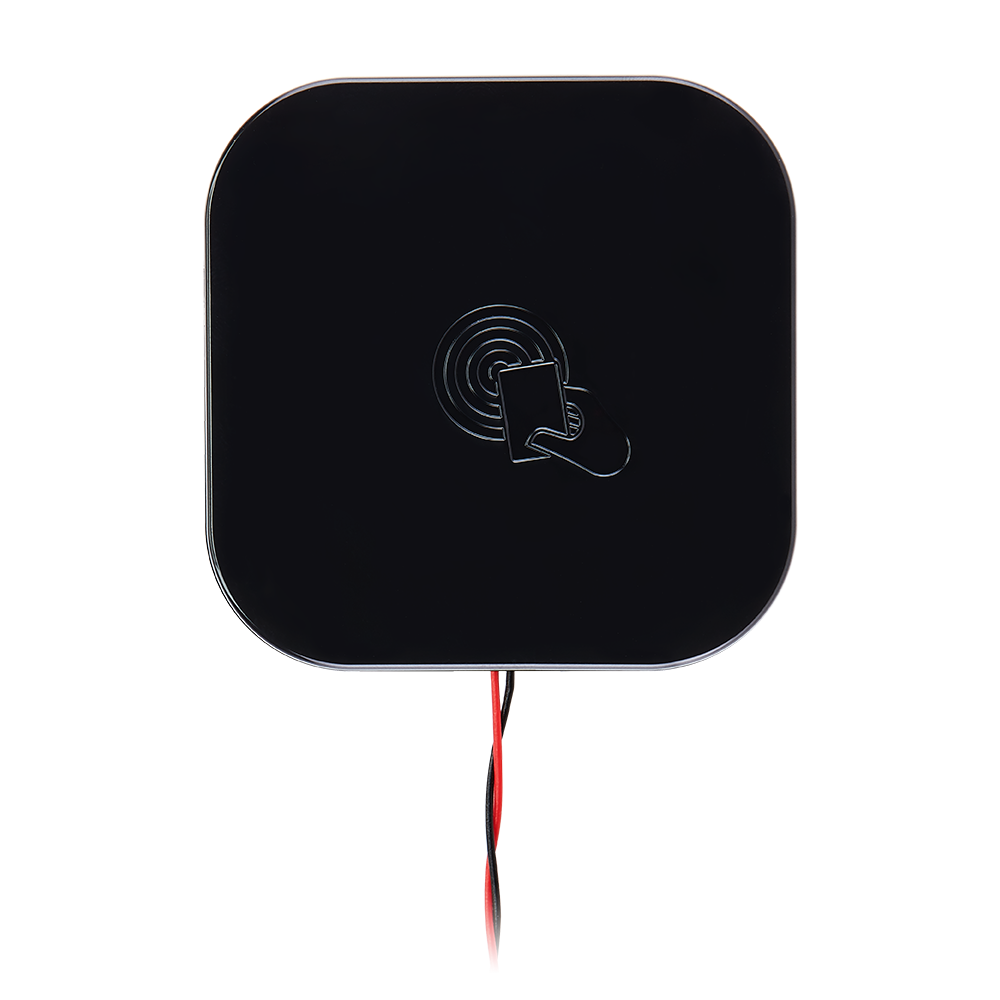

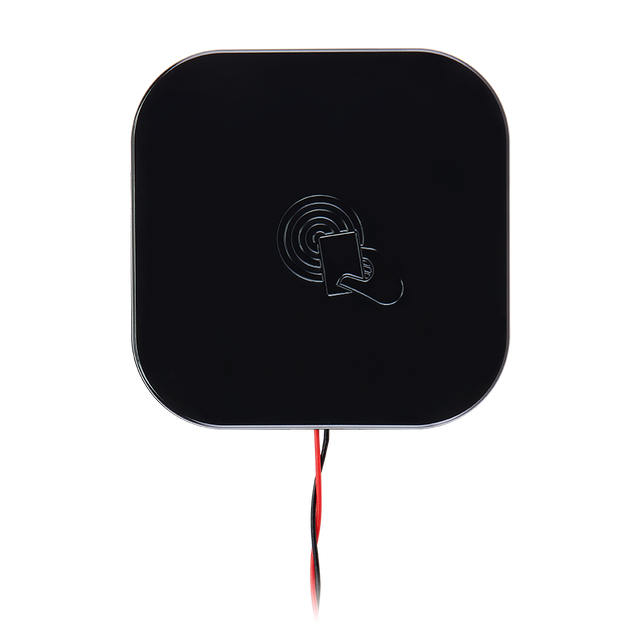

NFR.02 Antenna External Outdoor NFC bracket mount Radius ACH-F 100cm IP67

The Radius NFR.02 is an external bracket-mount NFC (Near Field Communication) antenna designed for use with NFC readers, enabling point-to-point data transmission without contact. The design is matched for optimal performance with typical NFC chipsets.

• Purpose-built for NFC readers: Tuned for reliable 13.56MHz operation.
• Rugged sealed housing: Waterproof enclosure suitable for indoor and outdoor environments.
• Robust mounting: Bracketed design intended for wall or metal panel installation.

Connector & Cable

• Connector Type: ACH Female (ACH(F))
• Cable Length: 100cm
• Cable Type: 28 AWG twisted pair

Technical Specifications

Operating Temperature: -55°C to +85°C
Location: External
Mounting: Wall Mount
Type: Single
IP Rating: IP67
Dimensions: 75*75*27.9mm RoHS and REACH Compliant
Weight: 32g

NFC

Frequency: 13.56 MHz
Impedance: 50Ω
Polarization: Linear
VSWR: <1.2:1
Gain (Max): 6
Connector Type: ACH(F)
Cable Length: 100cm
Cable Type: 28 AWG
