Description

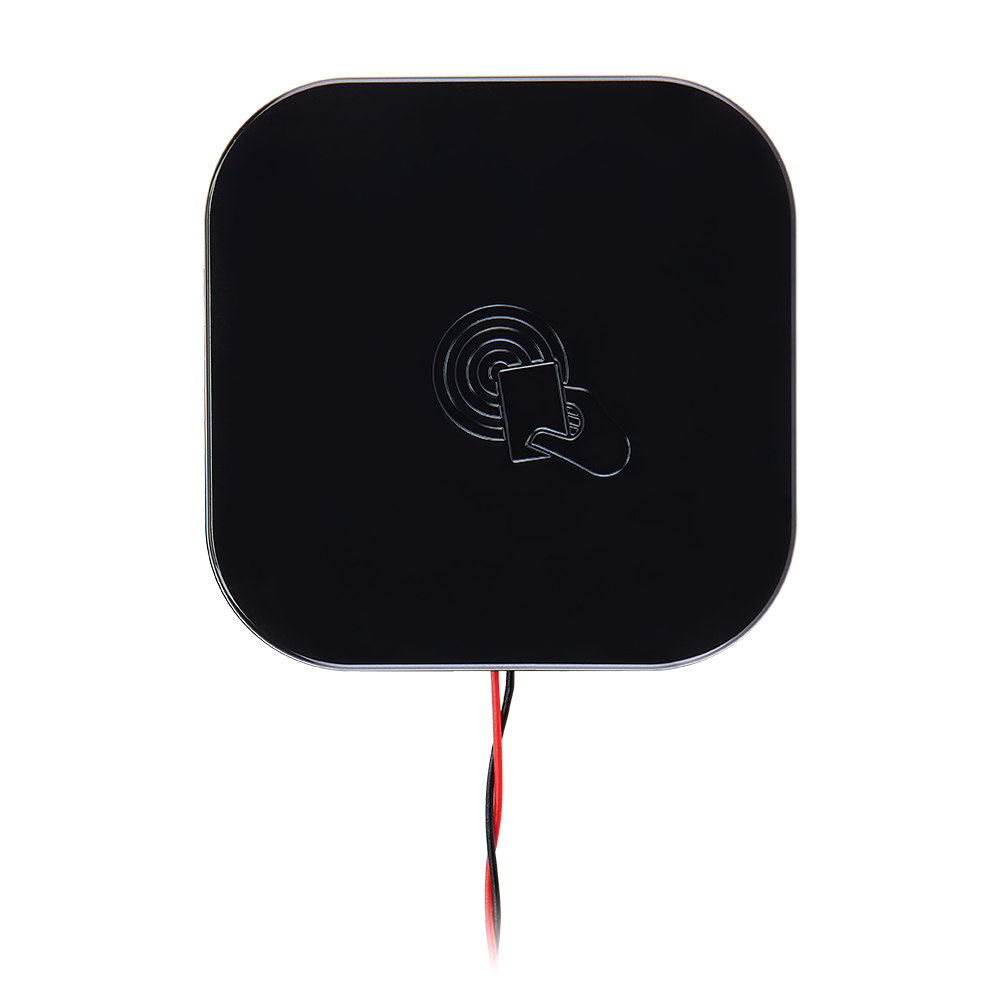

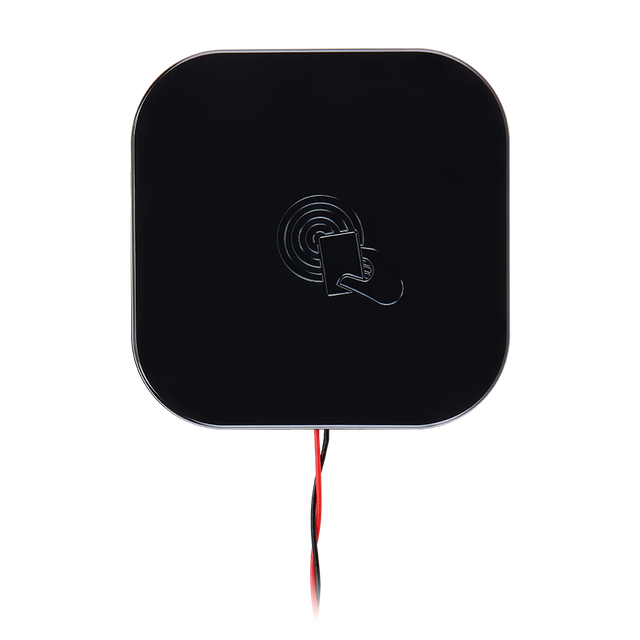

Radius NFR.03 is an external bracket-mount NFC (Near Field Communication) antenna designed for use with NFC readers, enabling contactless point-to-point data transmission. The antenna is matched for optimal performance with typical NFC chipsets and is housed in a rugged enclosure suitable for indoor and outdoor use.
Typical use cases include:
- Contactless Payment
- RFID
- Security
Connector & Cable
- Connector Type: ACH (F)
- Cable Length: 500cm
- Cable Type: 28AWG twisted pair
Technical Specifications
Operating Temperature: -40 cC to 85 cC
Location: External
Mounting: Wall Mount
Type: Single
IP Rating: IP67
Dimensions: 75*75*27.3mm RoHS and REACH Compliant
Weight: 55 g
NFC
Frequency: 13.56 MHz
Impedance: 50a9
VSWR: 1.5:1
Gain (Max): 3
Connector Type: ACH (F)
Cable Length: 500cm
Cable Type: 28AWG twisted pair
