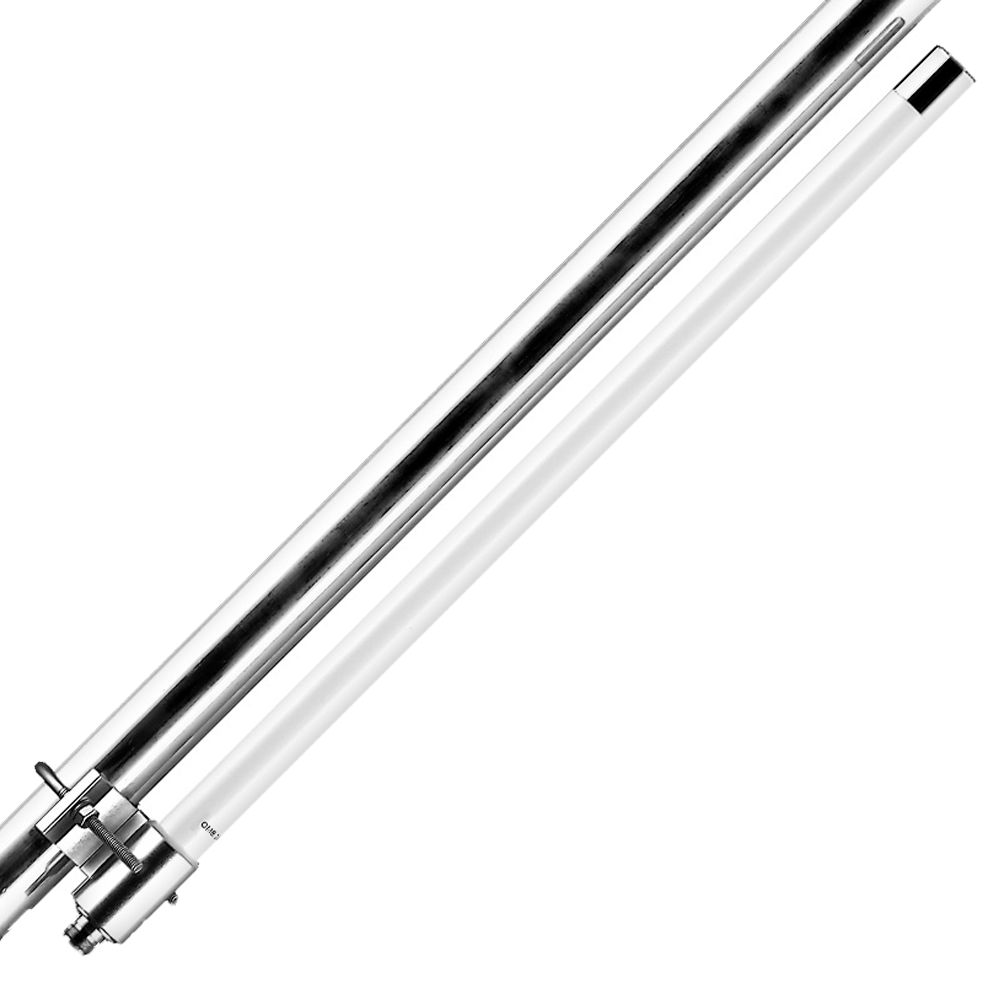

OMB.242.08F21 Antenna Outdoor Wi-Fi, ISM wall/pole mount Barracuda N-Type Female IP65 for Public Safety, Wireless Video Systems, Agriculture, Public Wireless Hotspot

This rugged omni-directional outdoor antenna is designed to deliver long-range 2.4GHz coverage with consistent performance in harsh environments. Its durable fiberglass radome and robust internal construction support reliable connectivity for outdoor Wi-Fi networks and ISM-band devices.

• Omni-directional coverage: Helps provide uniform 360° horizontal coverage for wide-area deployments
• Outdoor-ready construction: Weather-resistant enclosure designed for demanding installations
• High performance at 2.4GHz: Optimized for extended-range links and stable connections

Typical use cases include: Public Safety, Wireless Video Systems, Agriculture, and public hotspot deployments.

Connections

1x Wi-Fi/Bluetooth/ZigBee 2.4–2.5GHz (ISM)

Connector & Cable

• Connector Type: N-Type Female

Technical Specifications

Operating Temperature: -40°C to +60°C
Antenna Technologies: Dipole, Collinear
Location: External
Mounting: Wall Mount, Pole Mount
Short-Range Wireless Standards: Wi-Fi, Bluetooth, ZigBee, ISM
Type: Single
IP Rating: IP65
Dimensions: Length 553mm, Diameter 24mm
Weight: 380g
Wind Survival: >150mph(>241km/h)

Wi-Fi / Bluetooth / ZigBee (2.4–2.5GHz ISM)

Frequency: 2400~2500 MHz
Standards: IEEE 802.11b, IEEE 802.11g, IEEE 802.11n; Bluetooth; ZigBee
Peak Gain (dBi): 8.0
Average Gain (dB): -0.12
Efficiency (%): 97
Impedance: 50 Ohms
Polarization: Vertical
Radiation Pattern: Omni
VSWR: ≤ 1.3
Max. input power: 50W
Vertical Beamwidth: 57°
Horizontal Beamwidth: 360°
Connector Type: N Type Female
Connector Location: Bottom
