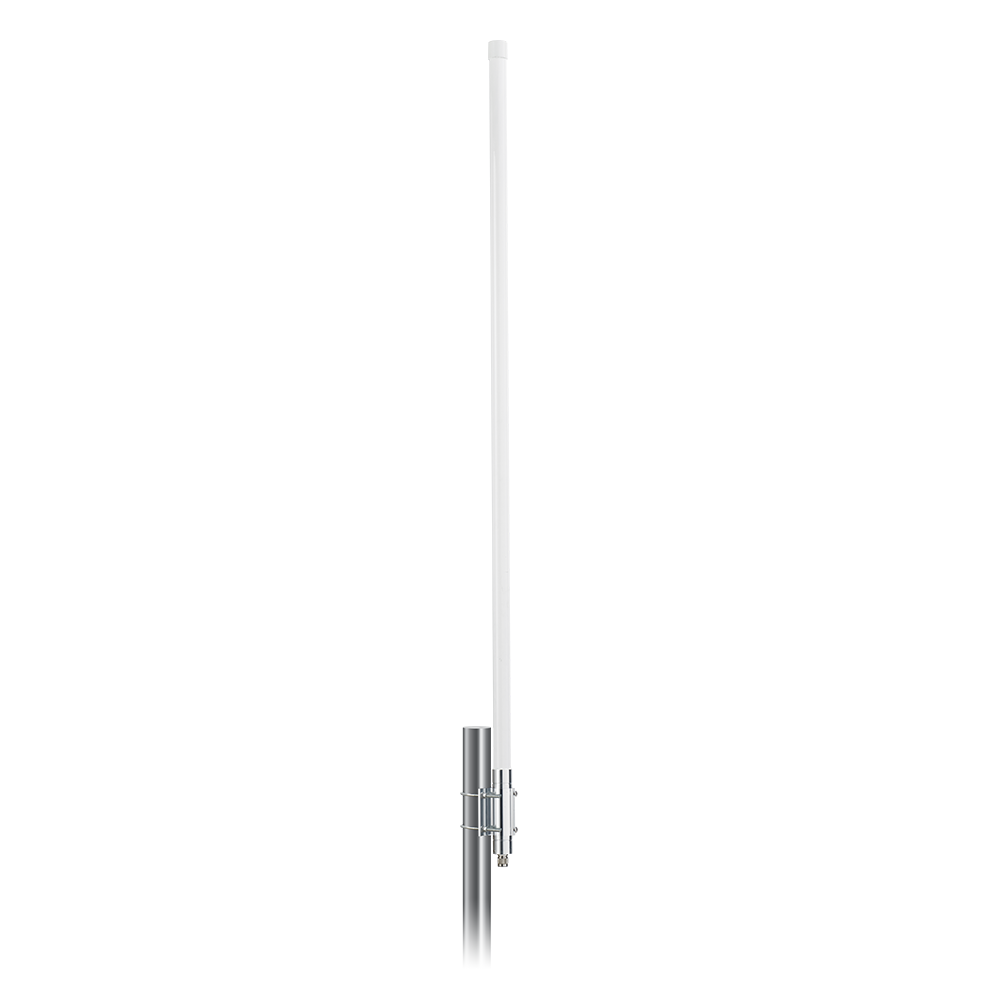

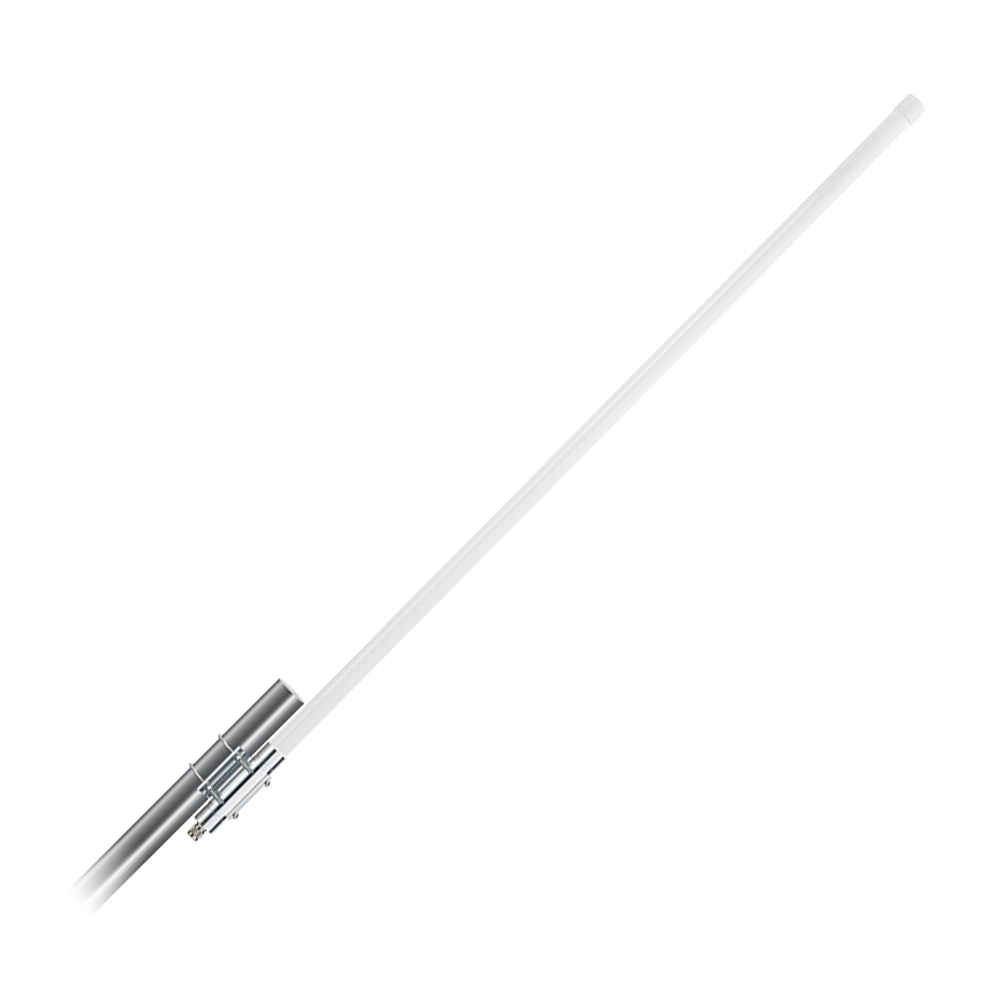

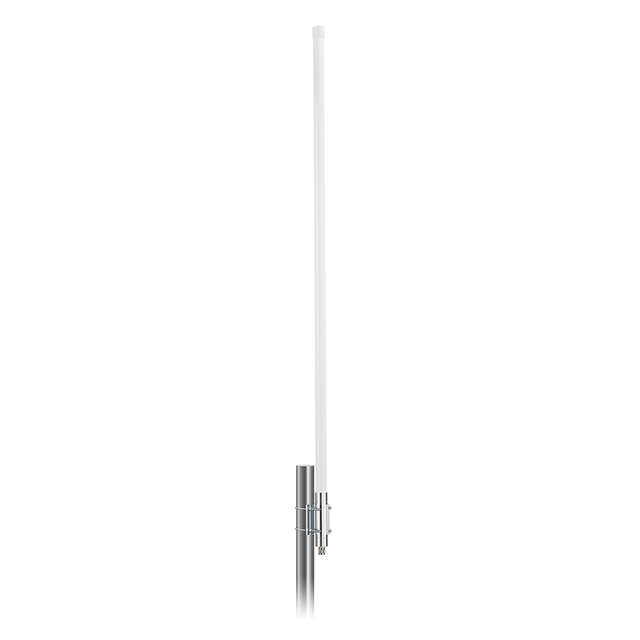

OMB.410.B06F21 Antenna Outdoor ISM, LoRa wall/pole mount Barracuda N-Type Female IP67 for smart grid, smart metering, industrial/environmental monitoring, remote asset monitoring

Barracuda is a rugged outdoor omnidirectional antenna designed for 410–425MHz coverage. Its fiberglass enclosure and weatherproof sealing support reliable long-range links in harsh environments, helping reduce node count in wide-area mesh deployments.

• Omnidirectional pattern for consistent 360° coverage
• Designed for smart grid spectrum operation (410–425MHz)
• Robust fiberglass radome for outdoor durability
• Weatherproof protection suitable for exposed installations
• Wall/pole mounting bracket included for flexible deployment

Typical use cases: smart grid, smart metering, industrial/environmental monitoring, remote asset monitoring, and mesh network deployments.

Connector & Cable

• Connector Type: N-Type Female

Technical Specifications

Operating Temperature: -40°C to 55°C
Location: External
LPWAN & IoT Communication: LoRa
Mounting: Wall Mount, Pole Mount
Short-Range Wireless Standards: ISM
Type: Single
IP Rating: IP67
Dimensions: 1500(L) x 80(W) x 65(D)
Diameter: Ø34mm
Weight: 1300g
Wind Resistance: 200 km/h

ISM/LoRa

Frequency: 410~425 MHz
Peak Gain (dBi): 6
Average Gain (dB): -0.5
Efficiency (%): 88.9
VSWR: <1.2:1
Impedance (Ohm): 50 Ω
Polarization: Linear
Radiation Pattern: Omni
Max. Input Power (W): 50W
Connector Type: N-Type Female
