Description

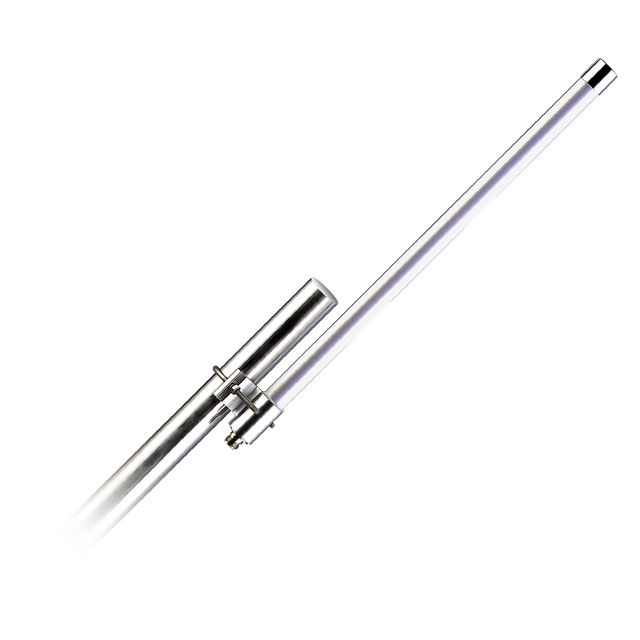

Barracuda OMB.450.B03F21 is a rugged fiberglass omni-directional outdoor antenna designed for 450–470MHz operation. Its collinear dipole array structure delivers consistent 360° horizontal coverage, helping improve link reliability and reduce the number of nodes required in mesh deployments.
The UV-resistant housing and weatherproof construction make it well-suited for harsh environments and long-term outdoor installations where durable, stable RF performance is required.
- Uniform 360° omni-directional coverage for wide-area deployments
- Robust fiberglass radome for demanding environments
- Designed for 450MHz band systems including LTE Band 31, CDMA and ISM/LoRa use cases
- Supplied with mounting hardware for wall or pole installations
Typical applications include:
- Metering
- Industrial / environmental monitoring
- Remote asset monitoring
- Mesh network applications
Connector & Cable
- Connector Type: N-Type Female
Technical Specifications
Operating Temperature: -40°C to +85°C
Antenna Technologies: Collinear, Dipole
Cellular Technologies: 4G/LTE
Location: External
LPWAN & IoT Communication: LoRa
Mounting: Pole Mount, Wall Mount
Short-Range Wireless Standards: ISM
Type: Single
IP Rating: IP65
Length: 523 mm
Radome Diameter: 24mm
Bracket Dimension: 70 x 73mm
Weight: 350g
Wind Resistance: >150mph (>241km/h)
450–470MHz (LTE Band 31 / CDMA / ISM / LoRa)
Frequency: 450 ~ 470 MHz
Standards: LTE Band 31 / CDMA 450 / ISM / LoRa
Antenna Type: Collinear Dipole Array
Peak Gain: 3 dBi
Polarization: Vertical
Impedance: 50 ohms
VSWR: 1.5:1
Max Input Power: 100 watts
Radiation: Omni-Directional
Vertical Beamwidth: 67 Deg
Horizontal Beamwidth: 360 Deg
Connector Type: N Type Female
