OMB.6960.B07F21 Antenna Outdoor Wideband 5G, 4G/LTE, Wi-Fi 6E/7 wall/pole mount Barracuda N-Type Female IP67 for Remote Monitoring, Security, Public Safety, Non-Terrestrial Network applications

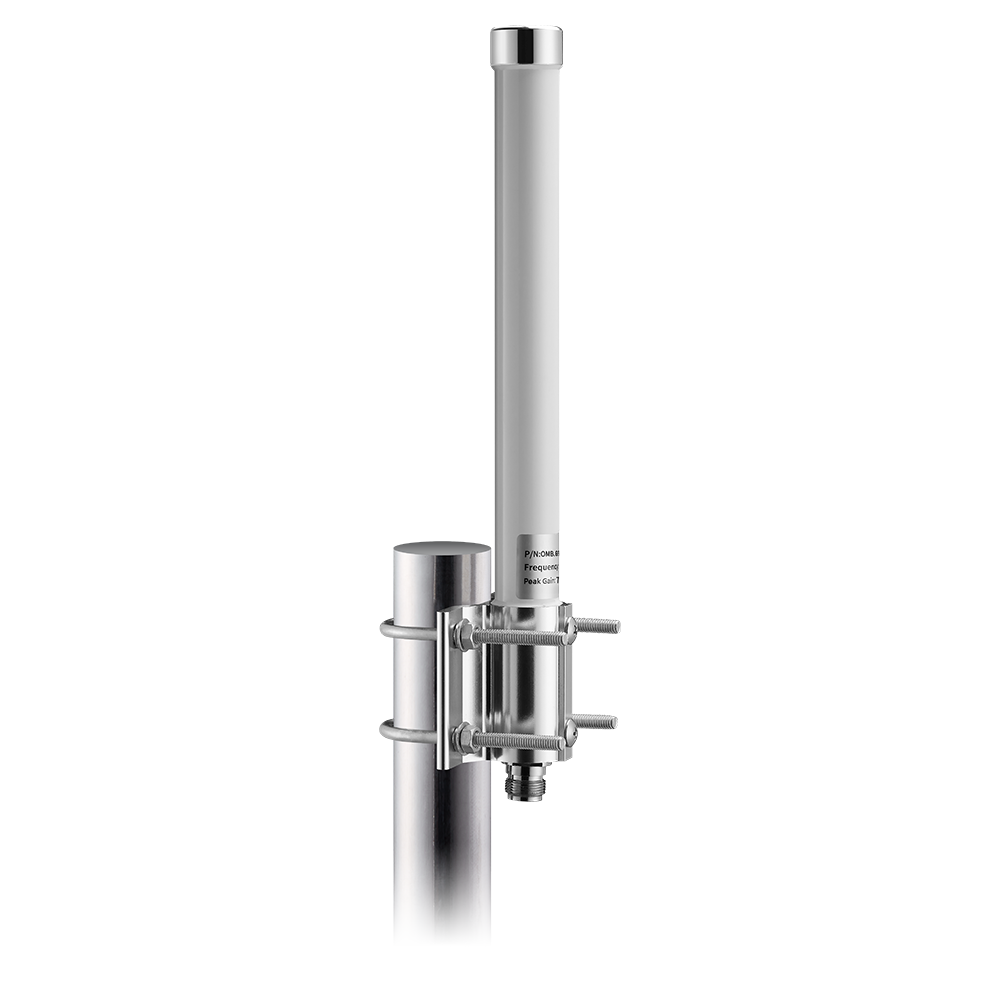

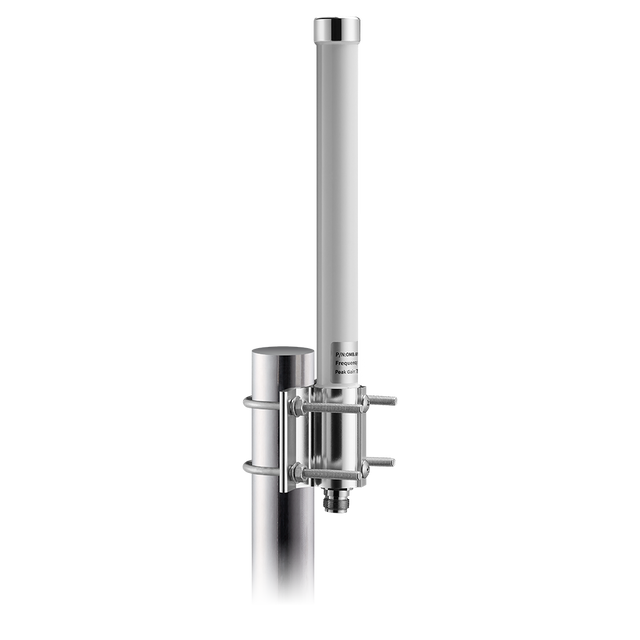

This rugged outdoor omnidirectional antenna is designed to support wideband cellular connectivity alongside extended Wi-Fi (including Wi-Fi 6). Its collinear dipole array construction helps deliver consistent all-around coverage, making it well-suited for deployments that require reliable links and simplified installation on structures.

• Wideband coverage: Supports sub-6 GHz cellular operation and extended Wi-Fi ranges (including Wi-Fi 6).
• Omnidirectional performance: Helps provide uniform azimuth coverage for broad-area connectivity.
• Outdoor-ready housing: Built for harsh environments with a robust fiberglass radome.
• NTN suitability: Recommended for NTN (Non-Terrestrial Network) devices operating on Band 255 (Global), Band 256 (Europe), and Band 23 (North America).

Typical applications include: Remote Monitoring, Security, and Public Safety.

Connector & Cable

• Connector Type: N-Type Female

Technical Specifications

Operating Temperature: -40°C to 85°C
Antenna Technologies: Collinear Dipole Array
Cellular Technologies: 5G
Location: External
Mounting: Wall Mount, Pole Mount
Short-Range Wireless Standards: Wi-Fi
Type: Single
IP Rating: IP67
Frequency: 600MHz - 8000MHz
Impedance: 50 Ω
VSWR: 2:1
Polarization: Linear
Radiation Pattern: Omni
Max Input Power: 150W
Radome Dimensions: Ø26 x 300mm
Bracket Dimensions: 60 x 40 x 65mm
Weight: 300g
Wind Resistance: 200 km/h

Download Datasheet PDF
