OMB.868.B08F21 Antenna Outdoor High-Gain ISM, LoRa wall/pole mount Barracuda N-Type Female IP65 for IoT, Metering, Industrial/Environmental Monitoring, Asset Monitoring

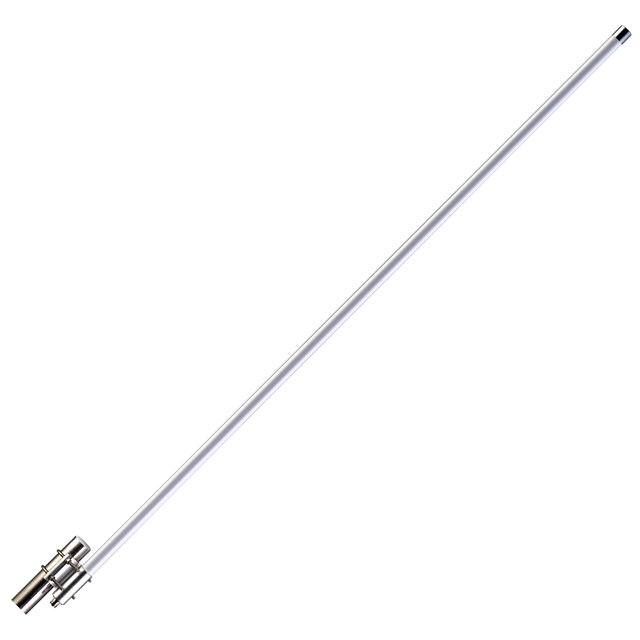

Barracuda OMB.868.B08F21 is a rugged, omnidirectional outdoor antenna designed for the 868 MHz ISM band. Its collinear design provides high peak gain to extend coverage, helping reduce the number of gateways/nodes required in LPWAN and mesh deployments.

• Optimized for 868 MHz ISM: ideal for LoRa base stations and low-power radio networks
• Omnidirectional coverage: uniform azimuth radiation for wide-area deployment
• Robust fiberglass radome: UV-resistant and designed for harsh outdoor environments
• Weatherproof design: IP65-rated for all-weather operation
• Flexible mounting: integrated bracket for wall or pole installation

Typical use cases include IoT deployments, metering, industrial/environmental monitoring, and remote asset monitoring.

Connector & Cable

• Connector Type: N-Type Female

Technical Specifications

Operating Temperature: -40°C to +60°C
Antenna Technologies: Collinear Dipole Array
Location: External
LPWAN & IoT Communication: LoRa, SigFox
Mounting: Wall Mount, Pole Mount
Type: Single
IP Rating: IP65
Dimensions: Length 1474 mm (Ma x ); Radome Diameter 24 mm; Bracket Dimension 70 x 73mm (Ma x )
Weight: 720g
Wind Resistance: >150mph (>241km/h)
Storage Temperature: -40°C to +80°C
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing

ISM 868 MHz (LoRa/SigFox)

Frequency: 860 – 870 MHz
Standards: ISM 868, LoRa, SigFox
Radiation: Omni-Directional
Peak Gain: 8 dBi
Polarization: Vertical
Impedance: 50 ohms
VSWR: 1.5:1
Max Input Power: 50 watts
Vertical Beamwidth: 13 Deg
Horizontal Beamwidth: 360 Deg
Connector Type: N Type Female
