Description

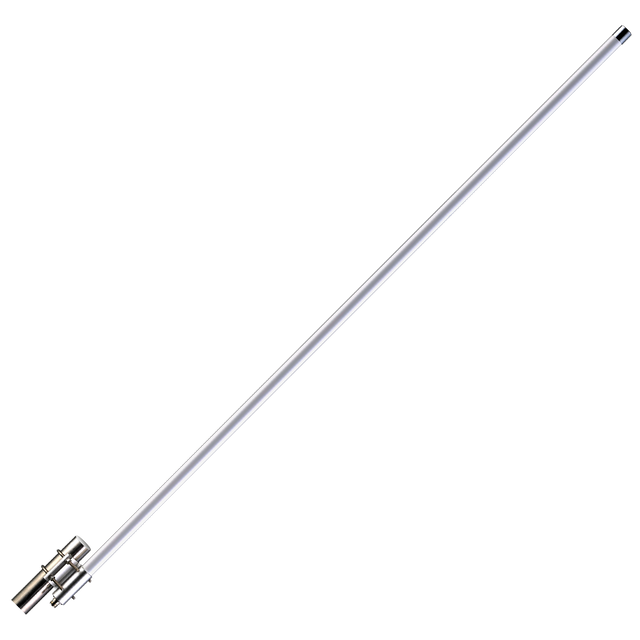

The Barracuda is a rugged, fiberglass omnidirectional outdoor antenna designed for long-distance coverage in the 915MHz ISM band. Its collinear design helps deliver strong, uniform 360° azimuth coverage—ideal for extending range and reducing node count in mesh deployments.
- Built for harsh environments: UV-resistant fiberglass radome for robust outdoor operation
- Optimized for LPWAN deployments: suitable for LoRa, SigFox, Helium and other ISM-band networks
- Omnidirectional coverage: consistent azimuth radiation to support wide-area connectivity
- Flexible mounting options: includes wall-mount and pole-mount bracket for easier installation
Typical use cases include metering, industrial & environmental monitoring, remote asset monitoring, and mesh network deployments.
Connector & Cable
- Connector Type: N-Type Female Connector
Technical Specifications
Operating Temperature: -20°C to +60°C
Antenna Technologies: Collinear
Location: External
LPWAN & IoT Communication: LoRa, SigFox, LPWA
Mounting: Wall Mount, Pole Mount
Type: Single
IP Rating: IP65
Dimensions: 1094.55mm x Ø26.6mm Wall and Pole Mount RoHS and REACH Compliant
Weight: 500g
ISM / LoRa (915MHz)
Frequency: 902MHz - 928MHz
Standards: ISM, LoRa, SigFox, Helium
Peak Gain (dBi): 5.9
Average Gain (dB): -1.21
Efficiency (%): 75.7
Polarization: Linear
Impedance (Ohm): 50Ω
VSWR: 2
Radiation Pattern: Omni
Max Input Power (W): 30W
Connector Type: N-Type Female
