Description

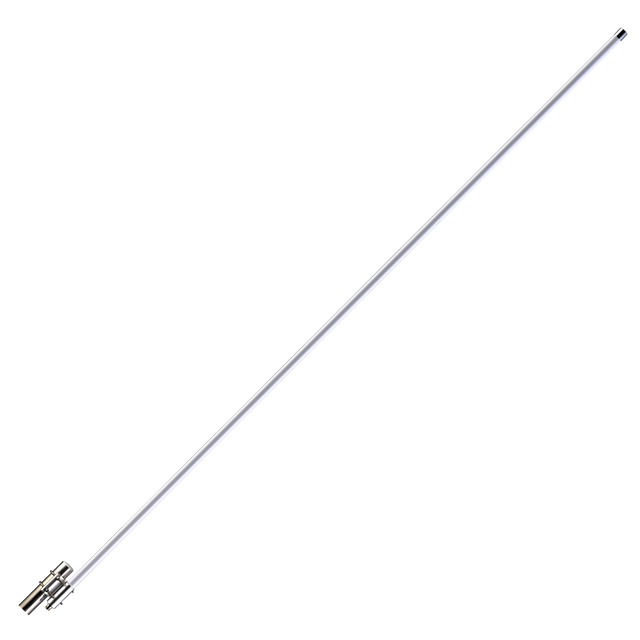

Sigfox, LoRa omnidirectional outdoor antenna designed for long-distance coverage in the 915MHz ISM band. The fiberglass radome and rugged construction make it suitable for robust outdoor environments, providing stable 360° azimuth coverage for wide-area deployments.
Its collinear design helps optimize horizontal-plane coverage, improving range and reducing the number of nodes required in mesh-style networks. Suitable for direct connection to access points or telemetry units, with included hardware for wall or pole mounting.
- Frequency band support: 915MHz ISM band (902–928MHz)
- Omnidirectional coverage: uniform azimuth radiation for broad area coverage
- Rugged enclosure: UV-resistant fiberglass radome for harsh environments
- Mounting flexibility: designed for wall or pole installation
Typical use cases include metering, industrial & environmental monitoring, remote asset monitoring, and mesh network deployments (including 915MHz Helium-style networks).
Connector & Cable
- Connector Type: N-Type Female
Technical Specifications
Operating Temperature: -40°C to +60°C
Antenna Technologies: Collinear, Dipole Array
Location: External
LPWAN & IoT Communication: LoRa, SigFox
Mounting: Wall Mount, Pole Mount
Type: Single
Dimensions: Height 2240mm N-Type Female Connector Wall and Pole Mount RoHS and REACH Complia
Weight: 994g
ISM 915 / LoRa / SigFox
Frequency: 902~928MHz
Standards: ISM 915, LoRa, SigFox, LPWA
Polarization: Vertical
Impedance: 50 ohms
VSWR: <2:1
Peak Gain: 11dBi
Radiation: Omnidirectional
Vertical Beam-width: 12 Deg
Horizontal Beam-width: 360 Deg
Max Input Power: 200 watts
Connector Type: N Type Female
Wind Resistance: >150mph(>241km/h)
Operating Humidity: 10%~90% non-condensing
