Description

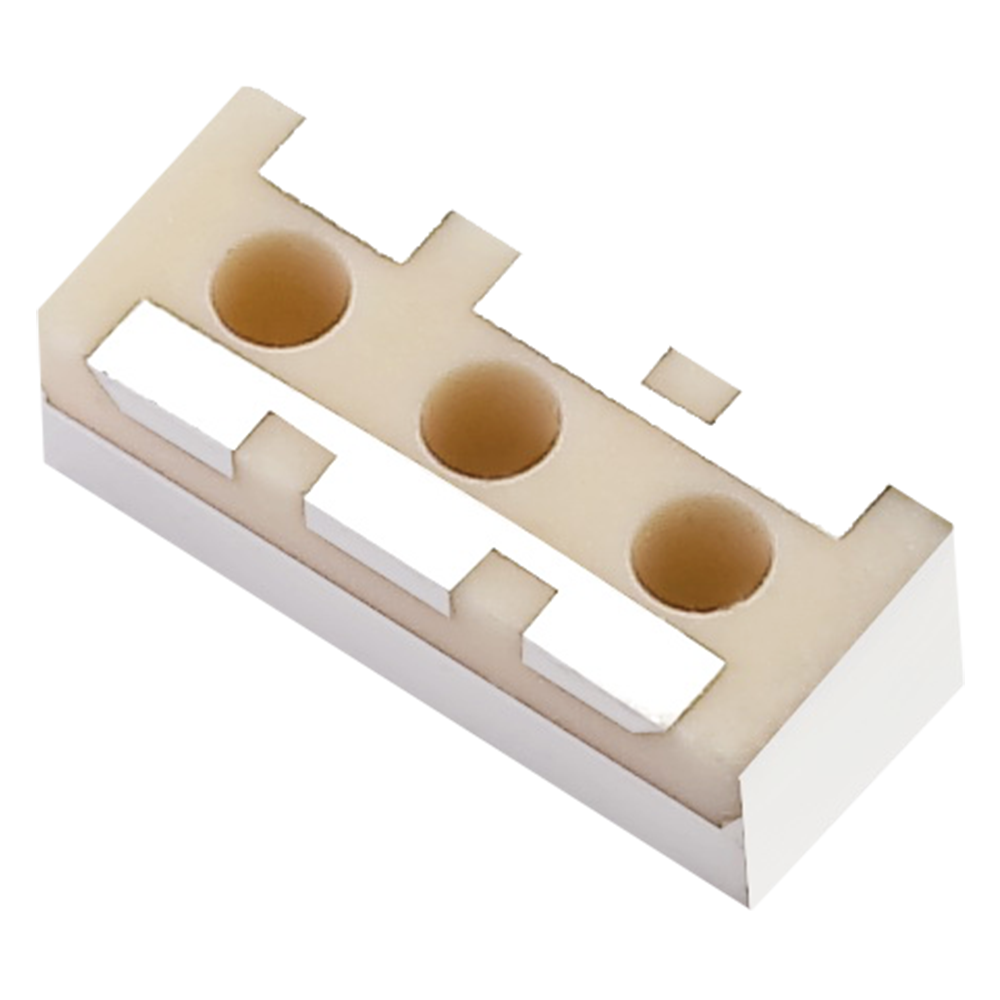

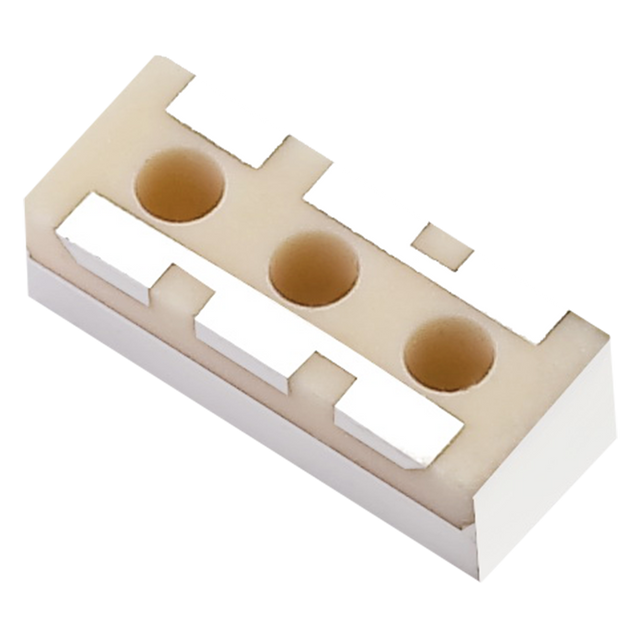

This embedded dielectric ceramic PIFA antenna is designed for 2.4GHz connectivity in compact devices, supporting Wi-Fi, Bluetooth, and ZigBee operation. Its small footprint helps enable space-constrained designs while delivering strong isolation performance versus traditional PCB antennas.
- 2.4GHz ISM band coverage for Wi-Fi/Bluetooth/ZigBee designs
- Compact embedded form factor to minimize device space impact
- Improved isolation characteristics versus typical PCB antenna solutions
Integration guidance: The antenna is intended for placement on the top right-hand corner edge of the component side of the board (or bottom left corner edge). It must be positioned on a non-ground (copper/metal-free) area, with the feed-point matched directly to the module.
Technical Specifications
Operating Temperature: -40°C to +85°C
Antenna Technologies: PIFA
Location: Internal
Mounting: SMD/SMT Mount
Short-Range Wireless Standards: Wi-Fi, Bluetooth, ZigBee
Type: Single
Dimensions: 10*4*3mm
Weight: 2g
Wi-Fi / Bluetooth / ZigBee (2.4GHz ISM)
Frequency: 2400-2484 MHz
Impedance: 50 Ω
Polarization: Linear
VSWR: 2.0 Max
Radiation Pattern: Omni
Efficiency (%): 79.1
Average Gain (dB): -1.02
Peak Gain (dBi): 1.5
