Description

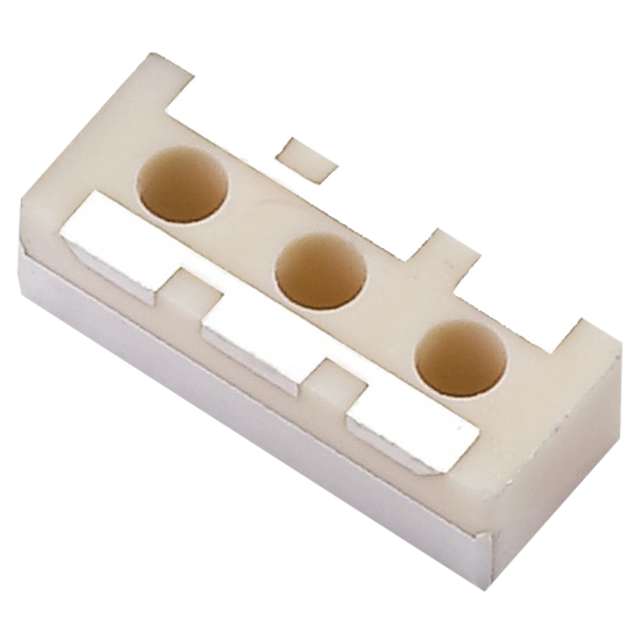

This compact 2.4GHz ceramic dielectric PIFA antenna is designed for embedded wireless devices requiring reliable short-range connectivity with strong isolation and consistent performance versus many PCB-trace alternatives.
It is intended for placement at the board edge (top-left corner of the component side / bottom-right corner edge) on a non-ground (copper/metal-free) area, with the feed-point matched directly to the wireless module.
- Designed for embedded 2.4GHz ISM designs supporting Wi-Fi, Bluetooth and ZigBee
- Ceramic dielectric PIFA construction for small footprint and stable performance
- Corner-edge placement guidance to help optimize radiation and isolation in end devices
Note: Module makers may specify peak-gain limits under free-space conditions; in real devices, antenna gain can reduce due to ground plane, nearby components, and housing, so choosing an antenna with some margin can help maintain in-device performance.
Technical Specifications
Operating Temperature: -40~+85°C
Antenna Technologies: PIFA
Location: Internal
Mounting: SMD/SMT Mount
Short-Range Wireless Standards: Wi-Fi, Bluetooth, ZigBee, ISM
Type: Single
Dimensions: 10*4*3mm
Weight: 2g
2.4 GHz ISM (Wi-Fi/Bluetooth/ZigBee)
Frequency: 2400MHz ~ 2484MHz
Polarization: Linear
Impedance: 50 Ω
VSWR: 2.0 max
Peak Gain: 3.27dBi max
Termination: Ag (Environmentally Friendly Lead-Free)
Moisture Sensitivity Level (MSL): 3
