Description

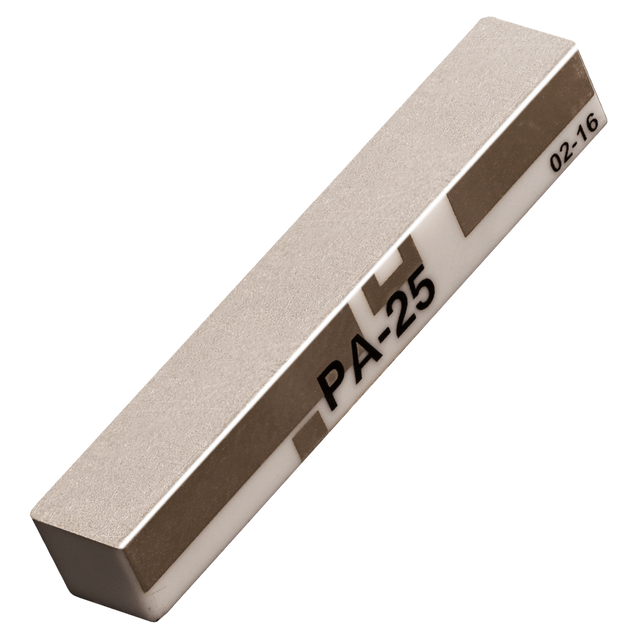

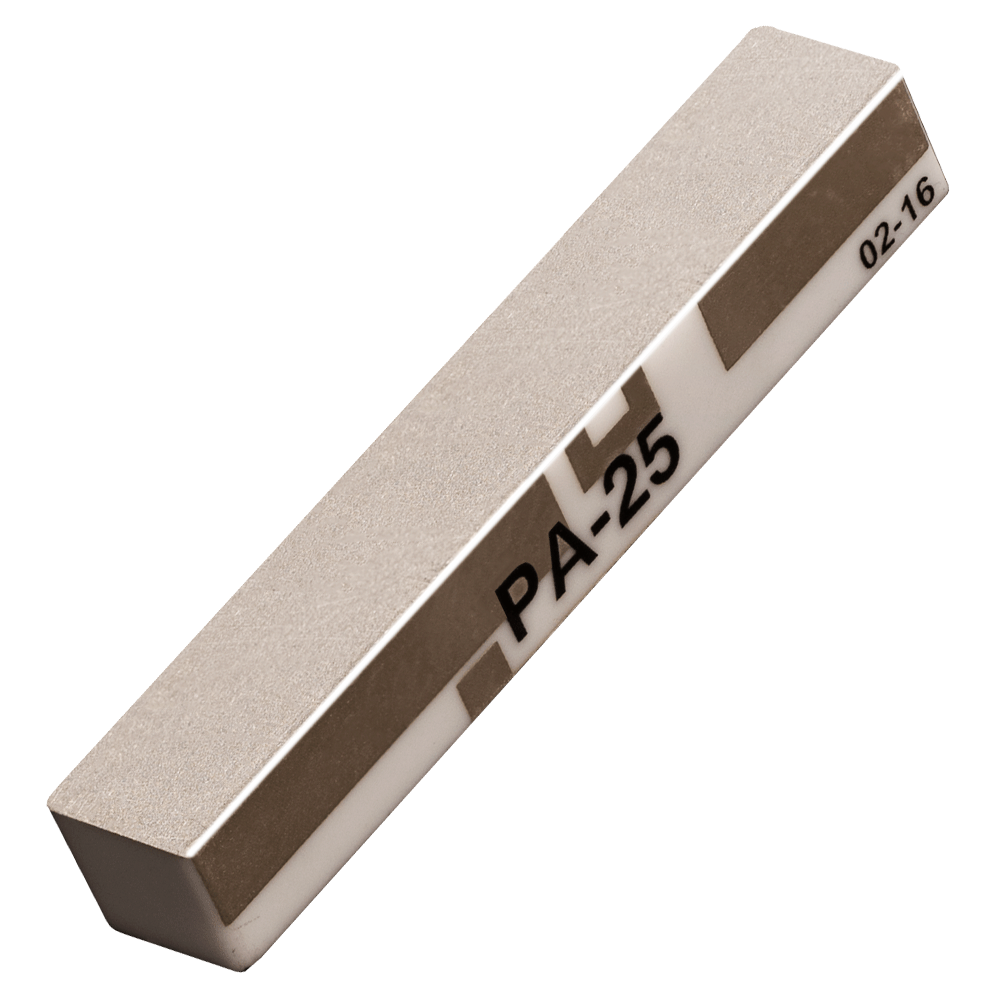

The PA.25A is a compact, high-efficiency ceramic cellular antenna designed for in-device mounting. It is intended for SMT assembly and supports multiband cellular operation across key 2G/3G frequency ranges, making it well-suited for space-constrained embedded designs.
Typical use cases include:
- Body Worn Devices
- Hand-held IoT Devices
- Medical Devices
- Remote Monitoring
Installation / Environmental
The following is an example on how to integrate the PA.25A into a design. This antenna has 4 pins, where one pin is used for the RF Feed. It is recommended using a minimum of 97x40mm ground plane (PCB) to ensure optimal performance.
The antenna should be placed mid-point on the short side of the PCB to take advantage of the ground plane. Top view of PCB.
Please find the Integration files in Altium, 2D formats and the 3D model for the PA.25A on the product page.
Technical Specifications
Operating Temperature: -40°C to 85°C
Antenna Technologies: PIFA
Cellular Technologies: 3G
Location: Internal
Mounting: SMD/SMT Mount
Type: Single
Impedance: 50 Ω
Polarization: Linear
VSWR: 3:1
Dimensions: 35*5*6mm Manufactured in an IATF16949 Approved Facility RoHS & REACH Compliant
Material: Ceramic
Termination: Ag (environmental-friendly Pb free)
Weight: 3g
Cellular (3G/2G)
Frequency: 824-960 MHz; 1710-2200 MHz
Standards: 3G/2G
Radiation Pattern: Omni
Max. Input Power: 2W
Efficiency (%): 80.7 (824-960); 61.0 (1710-2200)
Average Gain (dB): -0.93 (824-960); -2.14 (1710-2200)
Peak Gain (dBi): 2.91 (824-960); 4.56 (1710-2200)
Test Conditions: Tested on a 110*40mm ground plane and covered.
