Description

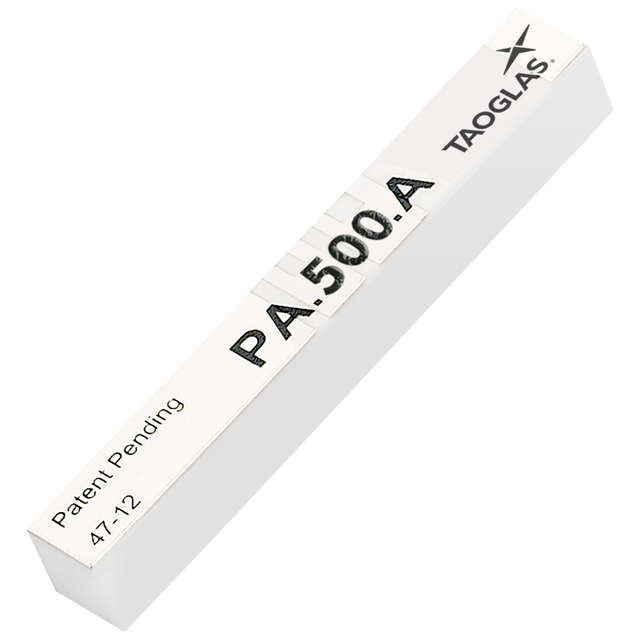

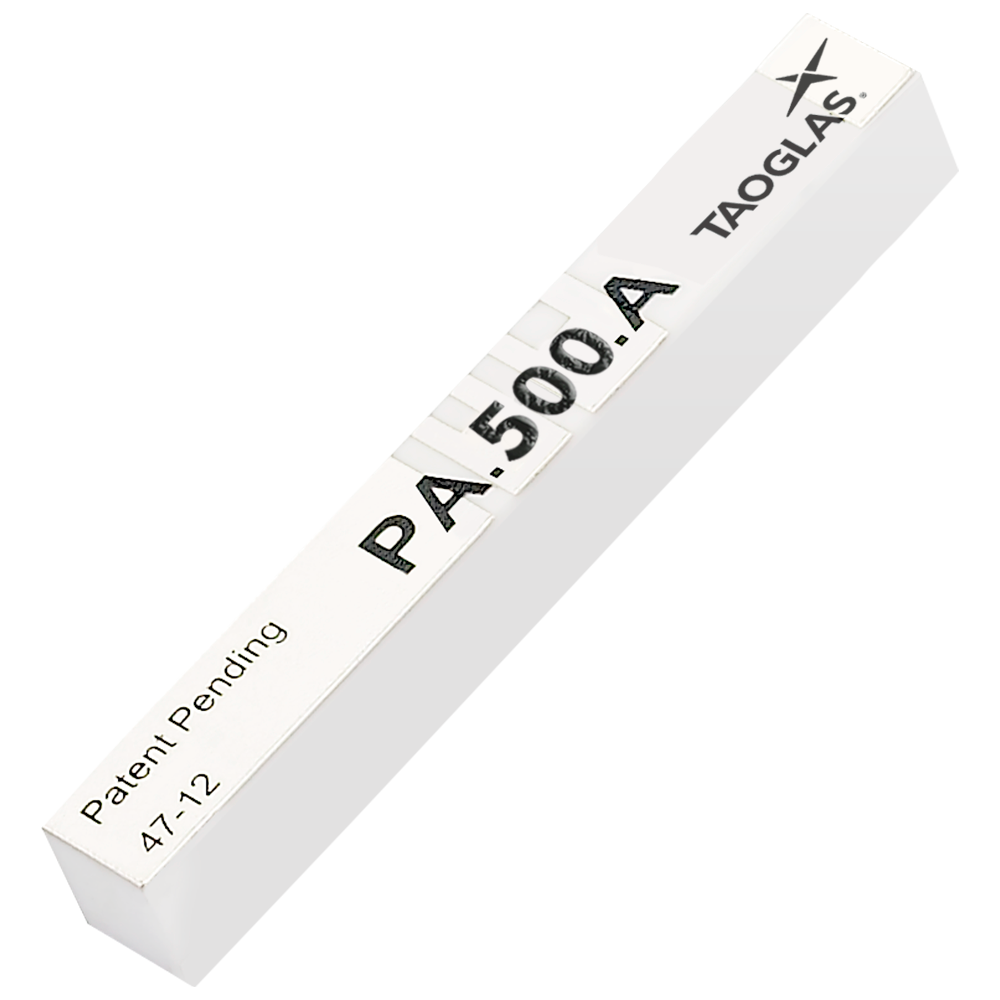

The PA.500.A is a compact ceramic chip antenna designed for cellular Band 28 device designs. It targets IoT products operating in the 703–803MHz range and is engineered for reliable performance at this challenging low-band frequency.
This antenna is designed with no clearance area to help simplify PCB integration where space is limited.
Typical use cases include:
- Compact IoT Sensors
- Tablets and Smartphones
- Telematics and Tracking
Technical Specifications
Operating Temperature: -40°C to 85°C
Antenna Technologies: Chip
Cellular Technologies: 4G/LTE
Location: Internal
Mounting: SMD/SMT Mount
Type: Single
Dimensions: 40 x 5 x 6 mm
4G/LTE Band 28
Frequency: 703-803 MHz
Impedance: 50 Ω
Polarization: Linear
VSWR: <2
Efficiency (%): 45.5
Average Gain (dB): -3.5
Peak Gain (dBi): -1.3
Radiation Pattern: Omni
Max. Input Power (W): 5W
