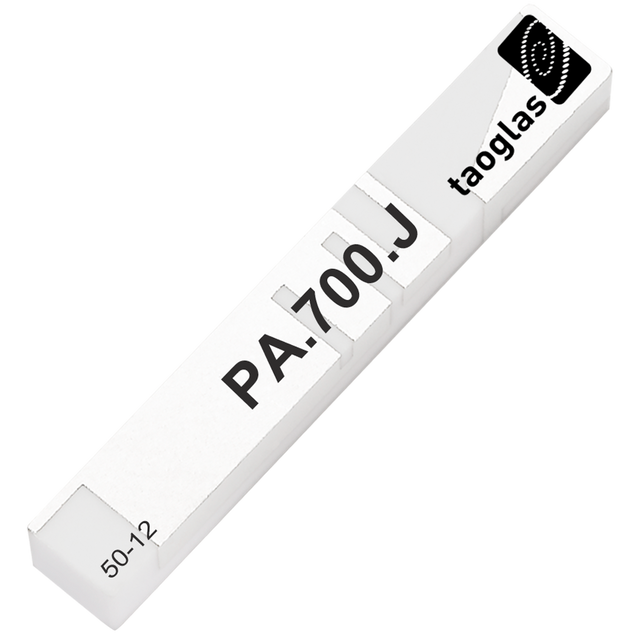

PA.700.J Antenna Wideband 4G/LTE SMD/SMT PIFA Samurai

The Samurai PA.700.J is a wideband embedded cellular antenna designed for efficient on-board integration in compact devices. It supports global cellular operation across low and high bands, helping reduce integration complexity while maintaining strong RF performance.

• Wideband cellular coverage: supports 4G/3G/2G operation across multiple global bands
• Embedded SMD/SMT integration: designed for precision PCB mounting to streamline assembly
• High-efficiency design: engineered to help improve over-the-air device performance in small form factors
• Automotive-grade approval: First Tier Automotive TS16949 Approved

Technical Specifications

Operating Temperature: -40 C to +85 C
Antenna Technologies: PIFA
Cellular Technologies: 4G/LTE
Location: Internal
Mounting: SMD/SMT Mount
Type: Single
Frequency: 698MHz - 2700MHz
Impedance: 50a9
Polarization: Linear
VSWR: 2:1
Dimensions: 40 x 6 x 5mm
Weight: 3g
RoHS: Yes
