Description

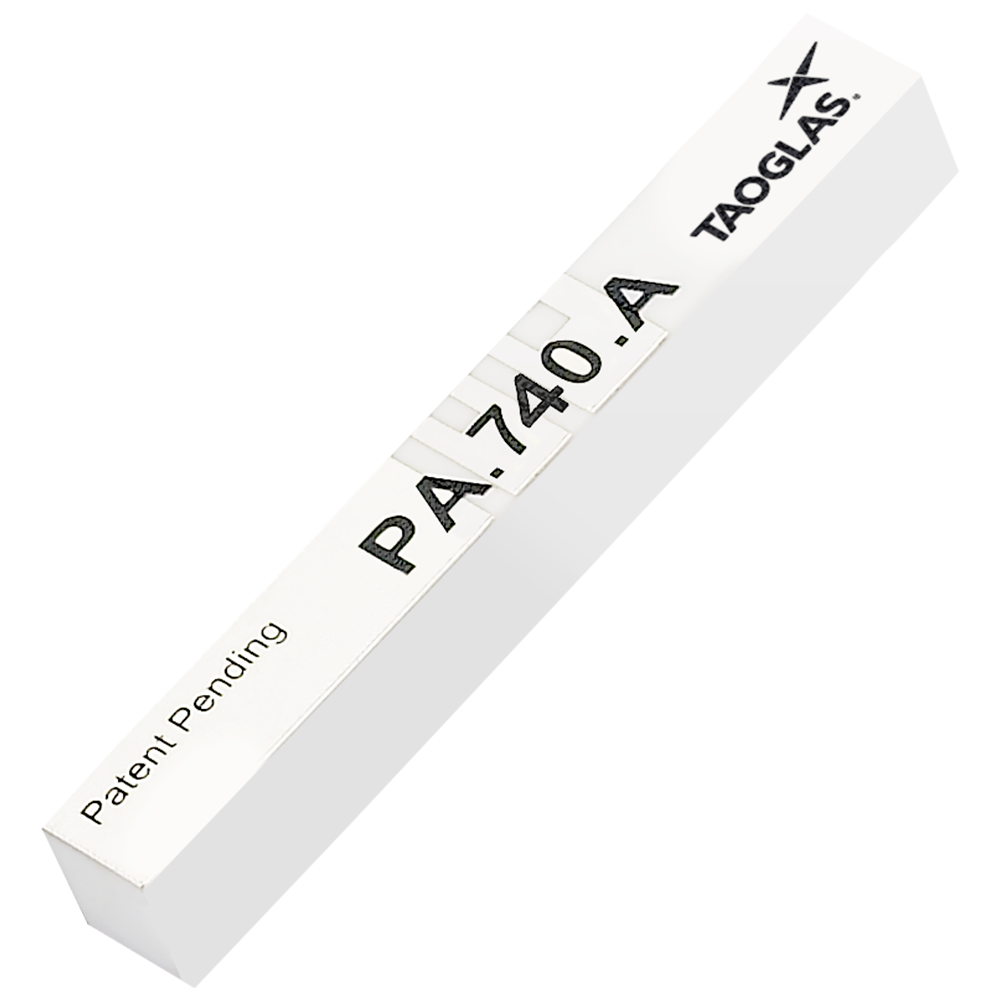

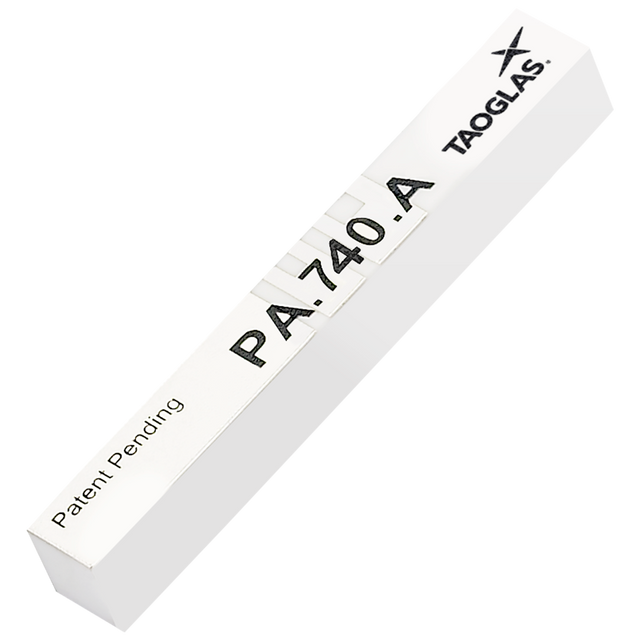

Warrior X PA.740.A is a patent-pending, high-efficiency wideband SMD ceramic antenna designed for worldwide 4G LTE and FR1 5G NR coverage (including support for China FR1 bands). It is optimized to deliver strong efficiency when mounted directly on the device main PCB.
The antenna is supplied on tape-and-reel for high-volume manufacturing and is intended to be securely mounted during the PCB reflow process. It also supports legacy 3G/2G fallback and performs well on NB-IoT and Cat-M bands.
Typical applications include:
- Transportation
- Robotics
- Wearables
- Autonomous/UAVs
- Industrial IoT
This antenna is designed to be more resistant to detuning than many other embedded antenna integrations. If required, it can be tuned for the device environment using a matching circuit or other PCB-level techniques.
Technical Specifications
Operating Temperature: -40 C to 85 C
Cellular Technologies: 5G
Location: Internal
LPWAN & IoT Communication: NB-IoT, Cat-M
Mounting: SMD/SMT Mount
Type: Single
Dimensions: 40 x 5 x 6mm RoHS & REACH Compliant
Weight: 3g
Material: Ceramic
Termination: Ag (environmental Pb free)
5GNR/4G LTE/3G/2G, NB-IoT, Cat-M
Frequency: 617-698, 698-824, 824-960, 1427-1518, 1710-2200, 2300-2690, 3300-5000, 5150-5925 MHz
Impedance: 50 9
Polarization: Linear
Radiation Pattern: Omni
Max. Input Power: 10W
Efficiency (%): 15.6 to 66.9
Peak Gain (dBi): -3.78 to 5.69
VSWR: 2:1
