Description

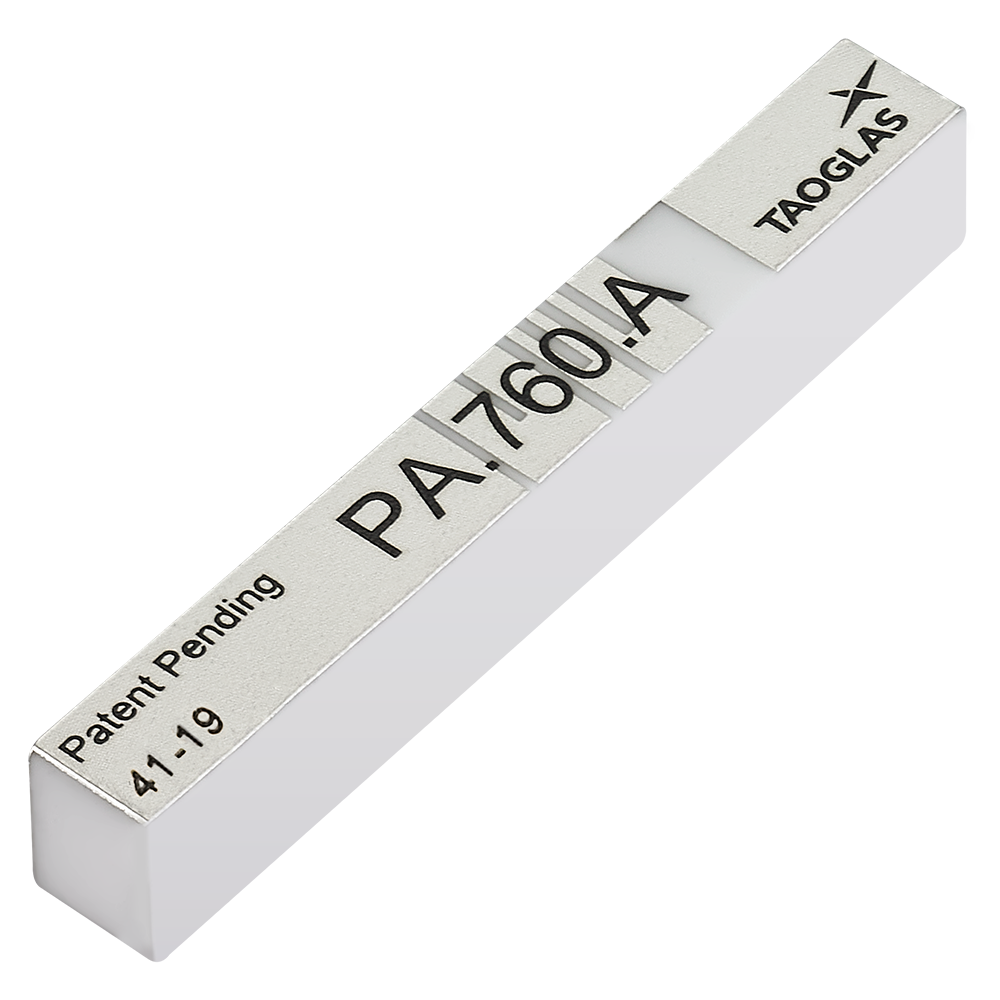

This patent-pending, high-efficiency wideband embedded antenna is designed for compact devices requiring global 5G NR and 4G coverage in a small PCB footprint. It supports newly established 5G NR bands for worldwide deployments and is backward compatible with 3G/2G where needed.
Supplied on tape & reel for high-volume manufacturing, it is intended to be integrated directly onto the device PCB and can be tuned in the final device environment using a matching circuit if required—helping reduce redesign effort and tooling cost.
- Wideband cellular coverage: Designed to cover 600–6000 MHz, including support for 600 MHz Band 71.
- Embedded integration: SMD ceramic format optimized for mounting on the device main PCB.
- IoT-ready: Suitable for NB-IoT and Cat-M frequency bands.
Typical applications include: Transportation, Robotics, Wearables, Autonomous/UAVs, Industrial IoT.
Technical Specifications
Operating Temperature: -40°C to 85°C
Cellular Technologies: 5G
Location: Internal
LPWAN & IoT Communication: NB-IoT, Cat-M
Mounting: SMD/SMT Mount
Short-Range Wireless Standards: Wi-Fi
Type: Single
Dimensions: 40 x 5 x 6 mm Manufactured in an IATF16949 Certified Facility RoHS & REACH Compl
Weight: 3g
5G NR / 4G / 3G (Wideband)
Frequency: 600MHz - 6000MHz
Impedance: 50 Ω
Polarization: Linear
Radiation Pattern: Omni
VSWR: 2:1
Termination: Ag (environmental Pb free) - Solder Pad
Cable Length: None
Band Performance (Efficiency / Avg Gain / Peak Gain):
617~698 MHz: 40.5% / -3.9 dB / -0.7 dBi
698~806 MHz: 49.6% / -3.1 dB / 0.5 dBi
824~960 MHz: 53.2% / -2.7 dB / 1 dBi
1427~1518 MHz: 28.8% / -5.4 dB / -0.5 dBi
1710~2200 MHz: 66.8% / -1.7 dB / 3.4 dBi
2490~2690 MHz: 53.8% / -2.7 dB / 2.9 dBi
3300~5000 MHz: 42.6% / -3.7 dB / 4.3 dBi
5150~5925 MHz (LTE5200/Wi-Fi 5800): 51.5% / -2.9 dB / 3 dBi
