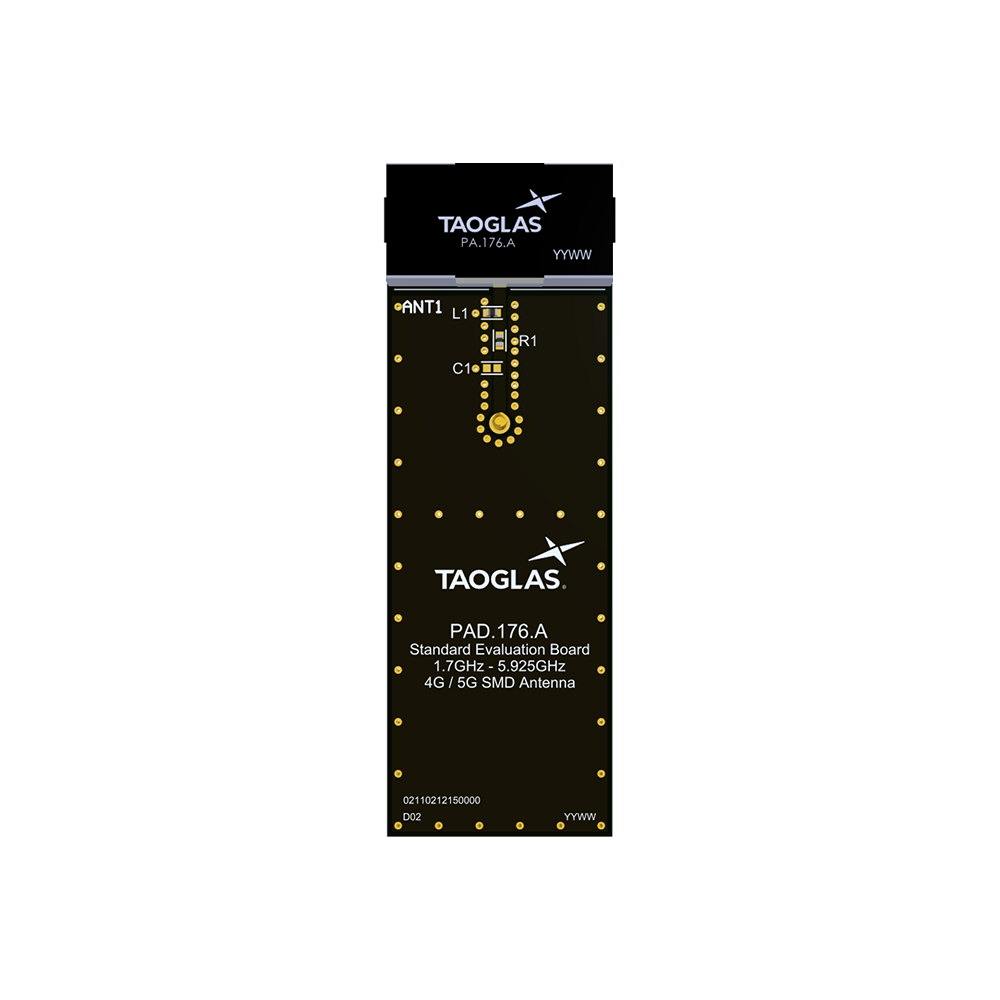

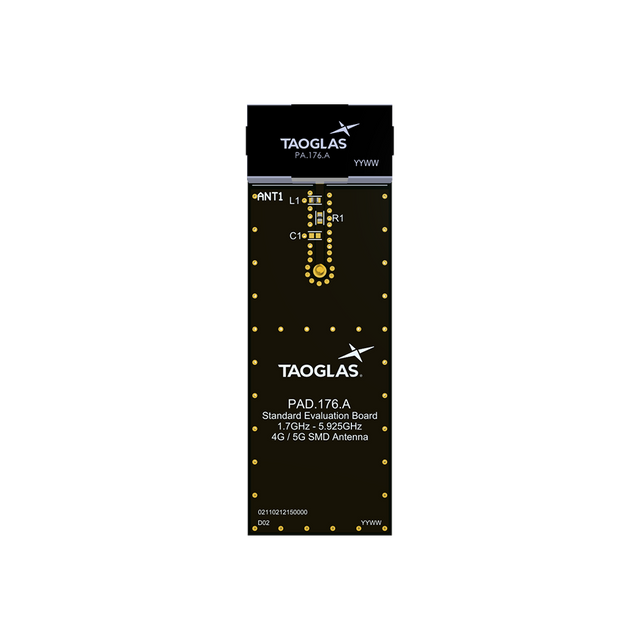

PAD.176.A Antenna MIMO High-Band 5G, 4G/LTE evaluation board SMA-F for Telematic Control and On-board Diagnostic Units, Wireless Medical Devices, First Responder and Public Safety Devices, UAV’s and Robotics

The PAD.176.A evaluation board is designed to help you quickly evaluate and integrate the PA.176.A miniature high-band cellular SMD antenna in your device design. It supports efficient PCB-based antenna development, making it easier to validate performance early and reduce integration risk in compact products.

• Designed for rapid evaluation: simplifies antenna bring-up, tuning, and comparative testing.
• Supports compact designs: enables development where PCB edge placement and minimal keep-out area are important.
• MIMO-ready concept: allows placement of multiple antennas in close proximity for MIMO configurations.

Typical applications include:

• Telematic Control and On-board Diagnostic Units
• Wireless Medical Devices
• First Responder and Public Safety Devices
• UAV’s and Robotics
• Media and Smart Home

Connector & Cable

• Connector Type: SMA-Female

Installation / Environmental

Care should be taken to follow layout instructions, provided in the datasheet, and in placing an antenna on the edge of the board with adequate clearance to metal. Minimum ground-plane requirements must be met to achieve targeted efficiencies.

The following is an example on how to integrate the PA.176.A into a design. This antenna has 6 pins, where one pin is used for the RF Feed. It is recommended using a minimum of 49x20mm ground plane (PCB) to ensure optimal performance.

Technical Specifications

Operating Temperature: -40°C to 85°C
Cellular Technologies: 5G
Location: Internal
Mounting: SMD/SMT Mount
Type: Single
Width: 20 mm
Length: 60 mm
Height: 0.75 mm
Materials: Ceramic

5G/4G High-Band Cellular

Frequency: 1710-1880, 1850-1990, 1920-2170, 2300-2690, 3000-3500, 3200-4650, 5150-5925 MHz
Standards: 5G/4G/3G
Impedance: 50 Ω
Polarization: Linear
Radiation Pattern: Omni
Max Input Power: 2W
Connector Type: SMA-Female
