PATR.SP.18.W.0.3M Antenna External Low-Profile MIMO IP69K 5G, GNSS, Wi-Fi 6E/7, SDARS, LMR/TETRA screw mount Patriot Series 18-in-1 for First Responders, Fleet Vehicles, Police Vehicles, Ford Interceptor vehicle

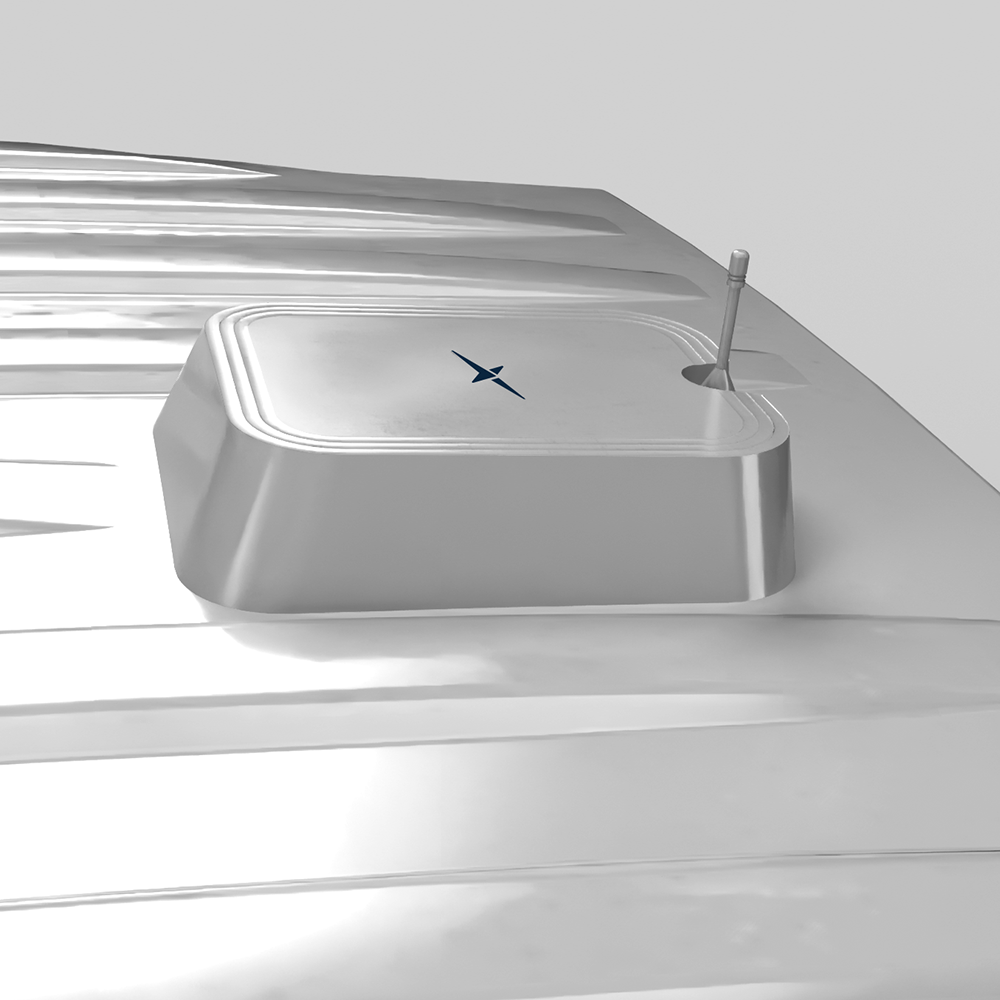

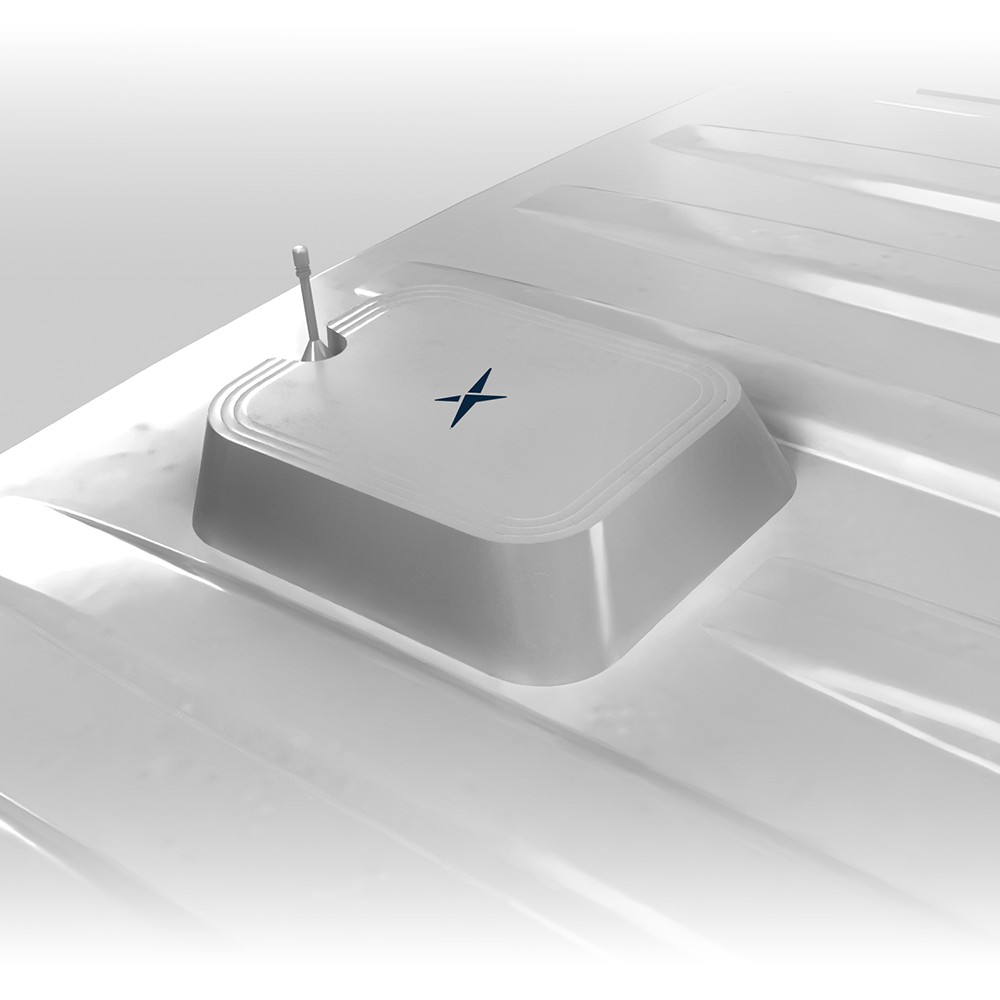

The Patriot Series super-compact combination antenna is designed to reduce roof clutter by consolidating multiple wireless services into a single low-profile, rugged solution. Engineered for vehicle-roof integration using existing OEM mounting connections, it supports concurrent broadband connectivity, navigation, telemetry, and voice services for demanding fleet deployments.

• High-density multi-function design: up to 18-in-1 connectivity in one enclosure.
• Rugged housing: impact resistant and sealed for harsh washdown and environmental exposure.

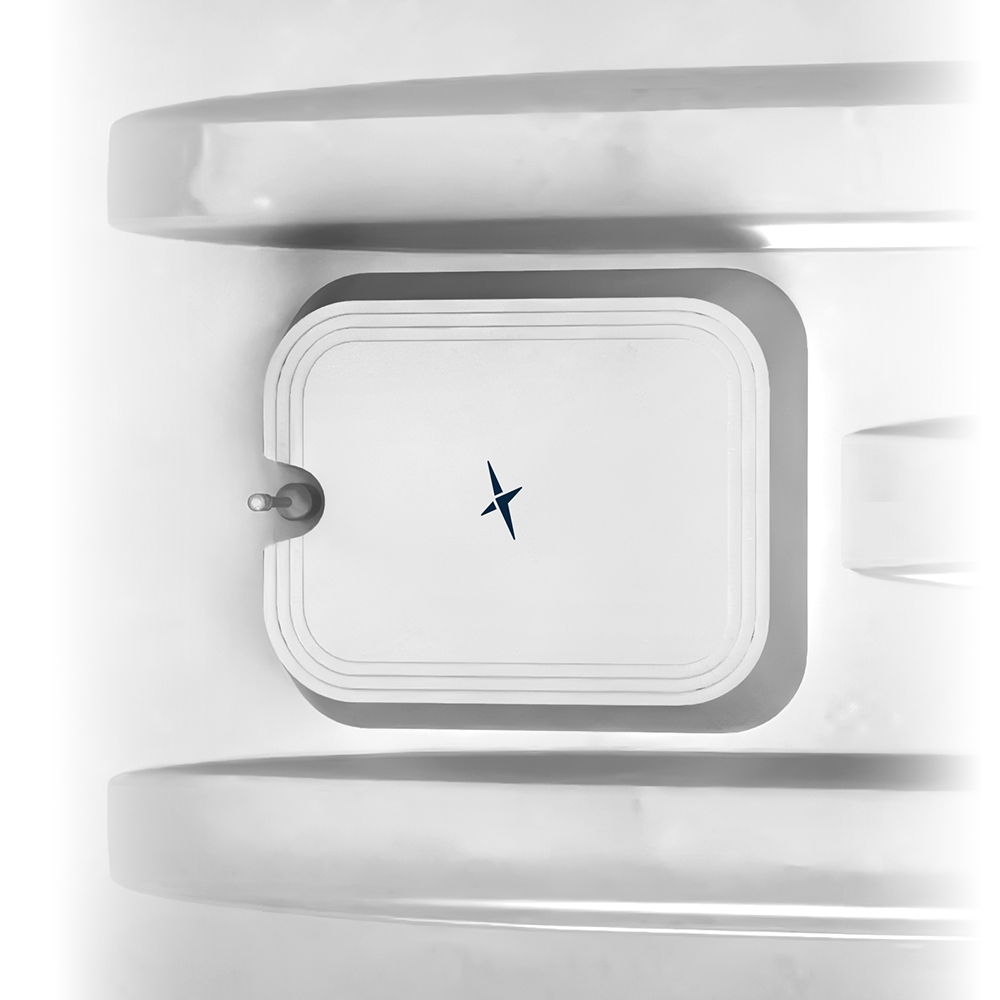

• Vehicle-optimized installation concept: designed to integrate cleanly onto vehicle roofs and mount behind roof ribs.
• Interchangeable whip support: supplied with two whips to cover different LMR/TETRA frequency needs.

Connections

9x 5G/4G MIMO 617-6000 MHz
5x Wi-Fi MIMO 2.4/5.8/7.125 GHz
2x Multi-Band GNSS Antenna (L1 & L1/L5 and secondary GNSS L1)
1x SDARS
1x LMR/TETRA Interchangeable Whip 380-400 MHz and 700-900 MHz

Technical Specifications

Operating Temperature: -40°C to +85°C
Antenna Technologies: MIMO, Whip
Cellular Technologies: 5G
Location: External
LPWAN & IoT Communication: Cat-M, NB-IoT
Mounting: Screw Mount
Satellite Navigation: GNSS
Short-Range Wireless Standards: Wi-Fi, ISM
Type: Combination
IP Rating: IP69K
Impedance: 50Ω
Dimensions: 205 x 180 x 60 mm RoHS and REACH Compliant
Weight: 840g

5G/4G Cellular (9x MIMO)

Frequency: 617-6000 MHz
Standards: 5G/4G
Polarization: Linear
Impedance: 50Ω
Radiation Pattern: Omni directional
Max. Input Power: 10W
Connector Type: SMA, RP-SMA, Quad FAKRA (Code E, Code D)
Cable Length: 30cm
Cable Type: RG-174/TGC-1.5DS

Wi-Fi (5x MIMO)

Frequency: 2.4/5.8/7.125 GHz
Standards: Wi-Fi
Connector Type: SMA, RP-SMA, Quad FAKRA (Code E, Code D)
Cable Length: 30cm
Cable Type: RG-174/TGC-1.5DS

GNSS (L1/L5)

Frequency: 1176.45, 1561, 1575.42, 1603 MHz
Polarization: RHCP
Impedance: 50Ω
VSWR (max.): 2:1
Connector Type: SMA, RP-SMA, Quad FAKRA (Code E, Code D)
Cable Length: 30cm
Cable Type: RG-174/TGC-1.5DS

GNSS 2 (L1)

Frequency: 1561, 1575.42, 1602 MHz
Polarization: RHCP
Impedance: 50Ω
VSWR (max.): 3:1 (1561 MHz), 2:1 (1575.42 MHz), 2:1 (1602 MHz)
Connector Type: SMA, RP-SMA, Quad FAKRA (Code E, Code D)
Cable Length: 30cm
Cable Type: RG-174/TGC-1.5DS

SDARS

Frequency: 2.3 GHz
Connector Type: SMA, RP-SMA, Quad FAKRA (Code E, Code D)
Cable Length: 30cm
Cable Type: RG-174/TGC-1.5DS

LMR/TETRA Interchangeable Whip

Frequency: 380-400 MHz and 700-900 MHz
Notes: Supplied with two interchangeable whips: FW.38.M6.F (Ø13 x 164 mm) covering 380-400 MHz; FW.79.M6.F (Ø13 x 65 mm) covering 700-900 MHz
