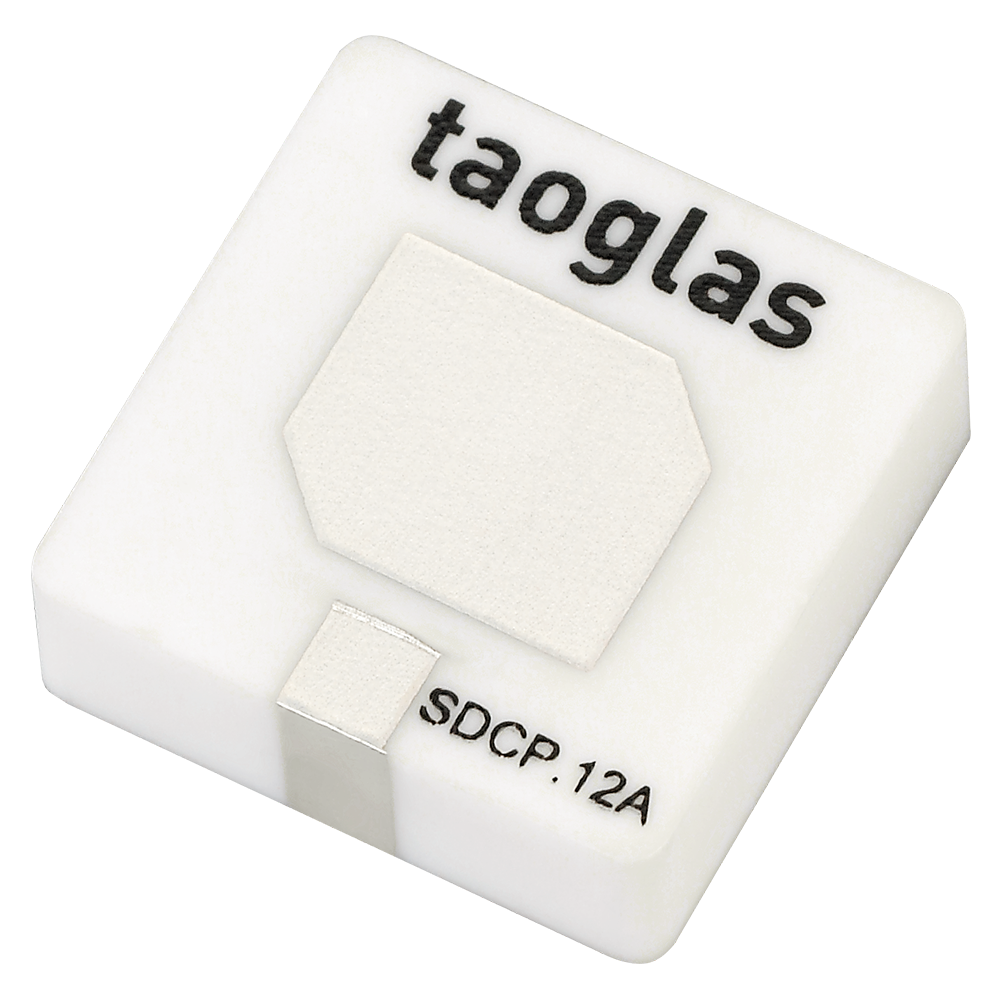

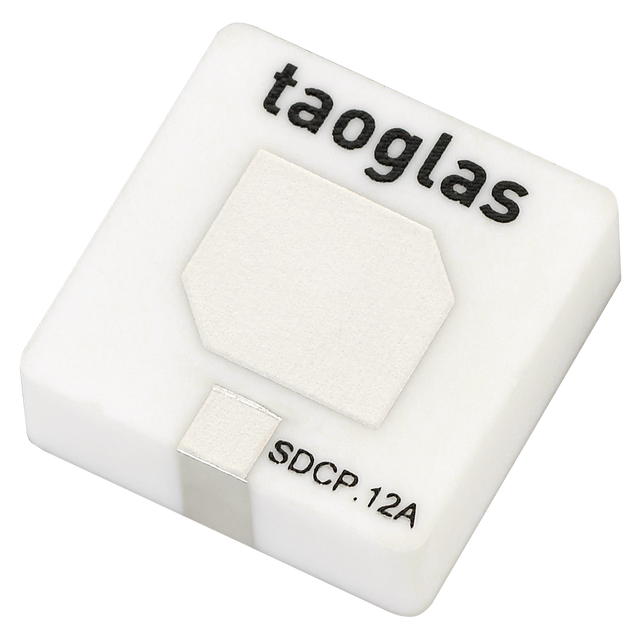

SDCP.5900.12.4.A.40 Antenna DSRC, C-V2X SMD/SMT patch for Automotive Rearview Mirror Back Mount, In-Vehicle Window Mount, Embedded in Roadside Transceivers

This compact embedded ceramic patch antenna is designed for DSRC systems in the 5.9GHz band. Its directional performance supports short-range, low-latency vehicle communications, while circular polarization helps maintain more consistent link quality when the device orientation changes.

• Directional patch design: helps extend communication range compared to omnidirectional solutions
• Circular polarization (RHCP): improves stability on moving platforms where orientation can vary
• Embedded form factor: small size for integration into space-constrained enclosures and assemblies
• SMD/SMT termination: suited to high-volume manufacturing processes

Typical use cases include: Automotive Rearview Mirror Back Mount, In-Vehicle Window Mount, and Embedded in Roadside Transceivers.

Technical Specifications

Operating Temperature: -45°C to +85°C
Antenna Technologies: Patch
Location: Internal
Mounting: SMD/SMT Mount
Type: Single
Dimensions: 12*12*4mm IATF16949 Production & Quality Approved RoHS & REACH Compliant
Weight: 2.0g

DSRC / C-V2X

Frequency: 5850-5925 MHz
Standards: DSRC, C-V2X
Impedance (Ohm): 50 Ohms
Polarization: RHCP
VSWR: < 2
Axial Ratio: < 4
Peak Gain (dBi): 4.64
Average Gain (dBi): -2.15
Efficiency (%): 60.45
Humidity: Non-condensing 65°C 95% RH
Moisture Sensitivity Level (MSL): 3 (168 Hours)
