Description

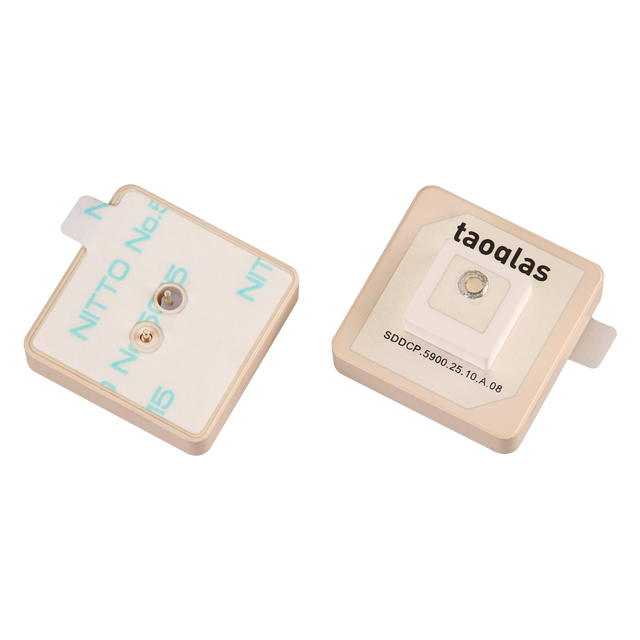

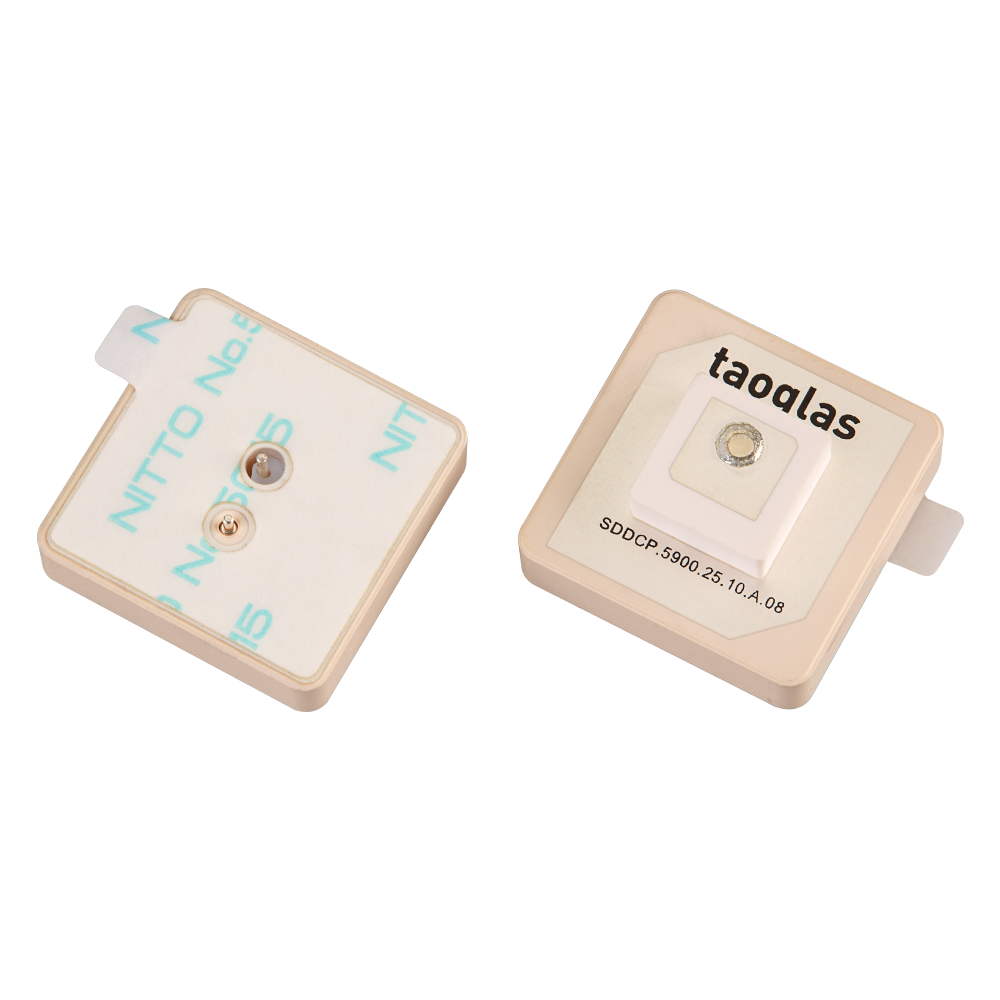

A compact, passive embedded ceramic stacked patch antenna designed to support both SDARS and DSRC in a single, space-efficient footprint. The stacked dual-patch approach enables strong performance across both bands, helping simplify integration where SDARS and DSRC capability are required in one antenna element.
- Dual-band stacked patch design: Supports SDARS and DSRC with a dual-feed patch assembly.
- Compact embedded form factor: 25 x 25mm footprint with low overall height for tight integration spaces.
- Automotive-focused integration: Suitable for OEM automotive implementations, including shark-fin style roof-mounted antenna systems.
- Optimized on a reference ground plane: Tuned and tested on a 70 x 70 mm ground plane for center positioning.
Connections
SDARS 2320-2345 MHz (LHCP)
DSRC 5850-5925 MHz (RHCP)
Technical Specifications
Operating Temperature: -40°C to +85°C
Antenna Technologies: Patch
Location: Internal
Mounting: SMD/SMT Mount, Through-Hole Mount
Type: Combination
Frequency: 2320MHz - 5925MHz
Impedance: 50 Ω
Dimensions: 25 x 25 x 10mm RoHS and REACH Compliant
Weight: 13.9g
SDARS
Frequency: 2320-2345 MHz
Polarization: LHCP
Efficiency (%): 80.3
Return Loss (dB): -10
Peak Gain (dBi): 5.4
Impedance: 50 Ω
VSWR: 2:1
DSRC
Frequency: 5850-5925 MHz
Polarization: RHCP
Efficiency (%): 68.5
Return Loss (dB): -10
Peak Gain (dBi): 3.5
Impedance: 50 Ω
VSWR: 2:1
