SDWA.01 Antenna MIMO High-Gain Wi-Fi 6E/7, ISM SMD/SMT mount for Wi-Fi® 6 enabled devices, Smart home and consumer electronics, Industrial and commercial IoT equipment, Set-top boxes and gateways

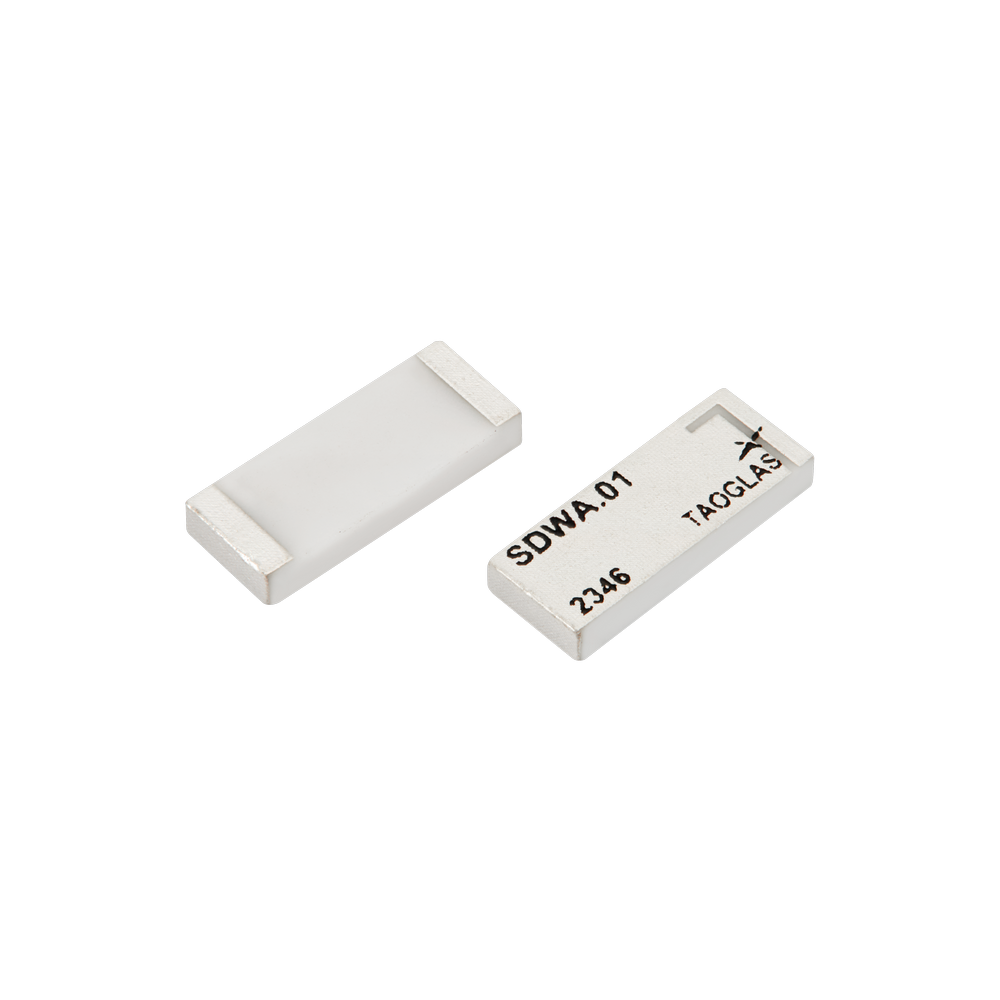

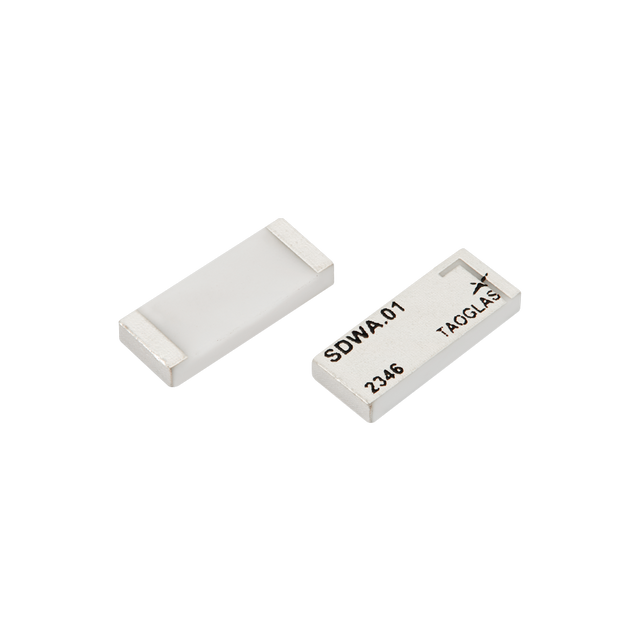

The SDWA.01 is a high-efficiency ceramic SMD embedded antenna for Wi-Fi applications that require high data rates and wide coverage. It supports operation across the 2.4 GHz, 5 GHz, and 6 GHz bands, including the Wi‑Fi® 6 spectrum for future-proof designs.

• Wideband Wi‑Fi support: Covers 2.4/5/6 GHz bands, including the 6 GHz extension used by Wi‑Fi 6E/7.
• Compact, low-profile design: Ultra-low profile helps integration into thin, space-constrained products.
• Designed for PCB integration: Optimized for corner mounting on a device PCB.
• MIMO-ready: Can be used in pairs to support MIMO configurations.
• Manufacturing-friendly: Supplied on tape and reel for standard SMD assembly.

Typical applications include: Wi‑Fi® 6 enabled devices, smart home and consumer electronics, industrial and commercial IoT equipment, set-top boxes and gateways, and compact networking/connectivity devices.

Installation / Environmental

The following is an example on how to integrate the SDWA.01 into a design. This antenna has 2 pins, where one pin is used for the RF Feed. The manufacturer recommends using a minimum of 100x50mm ground plane (PCB) to ensure optimal performance.

Top view of PCB reference design
Please find the Integration files in Altium, 2D formats and the 3D model for the SDWA.01 here:
https://www.taoglas.com/product/sdwa-01-24002500-49005850-smd-mount-antenna/

4.1 Schematic and Symbol Definition
The circuit symbol for the SDWA.01 is shown below. The antenna has 2 pins as indicated below.

Pin Description
1 RF Feed
2 Mechanical, No Connection

Above is a schematic symbol of SDWA.01 and a table of the pin definitions.

Technical Specifications

Operating Temperature: -40°C to +85°C
Location: Internal
Mounting: SMD/SMT Mount
Short-Range Wireless Standards: Wi-Fi, Bluetooth, ISM
Type: Single
Dimensions: 10.0 x 4.0 x 1.5 mm
Weight: 1g
Material: Ceramic
Impedance: 50 Ω
Polarization: Linear
VSWR: <2.5
Gain (Max): 4.9 dBi

Wi-Fi / Bluetooth (Embedded)

Frequency: 2400-2500 MHz, 5150-5850 MHz, 5925-7125 MHz
Standards: Wi-Fi® (Including Wi-Fi® 6), Bluetooth®
Wi-Fi Bands: 2.4/5.8/7.125GHz
Radiation Pattern: Omni directional
Max. Input Power: 10W
Efficiency (%): 55.3 (2.4GHz), 64.9 (5GHz), 44.0 (6GHz)
Average Gain (dB): -2.57 (2.4GHz), -1.88 (5GHz), -3.57 (6GHz)
