Description
This compact SMD mount patch antenna is designed for reliable GNSS performance, supporting GPS, GLONASS, and Galileo systems. With a low-profile 25x25x4mm ceramic construction, it is ideal for integration into navigation devices, vehicle tracking systems, telematics, and other applications where space is at a premium. The antenna is pre-tuned for a 50x50mm ground plane, ensuring optimal signal reception and easy integration into high-volume manufacturing processes. Custom tuning options are available for specific device requirements.
Connections
GPS/GALILEO 1575MHz
GLONASS 1602MHz
Single Feed SMD
Technical Specifications
Operating Temperature: -40ºC to +85ºC
Antenna Technologies: Patch
Location: Internal
Mounting: SMD/SMT Mount
Satellite Navigation: GNSS
Type: Single
Connection 1 - GNSS (GPS/GALILEO/GLONASS)
Frequency: 1575.42 MHz (GPS/GALILEO), 1602 MHz (GLONASS)
Impedance: 50 Ω
VSWR: ≤3:1 (1575.42 MHz), ≤5:1 (1602 MHz)
Gain (Max): 3.66 dBic (Zenith)
Efficiency: 78.41% (1575.42 MHz), 73.49% (1602 MHz)
Polarization: RHCP
Dimensions: 25 x 25 x 4 mm
Weight: 9.5 g

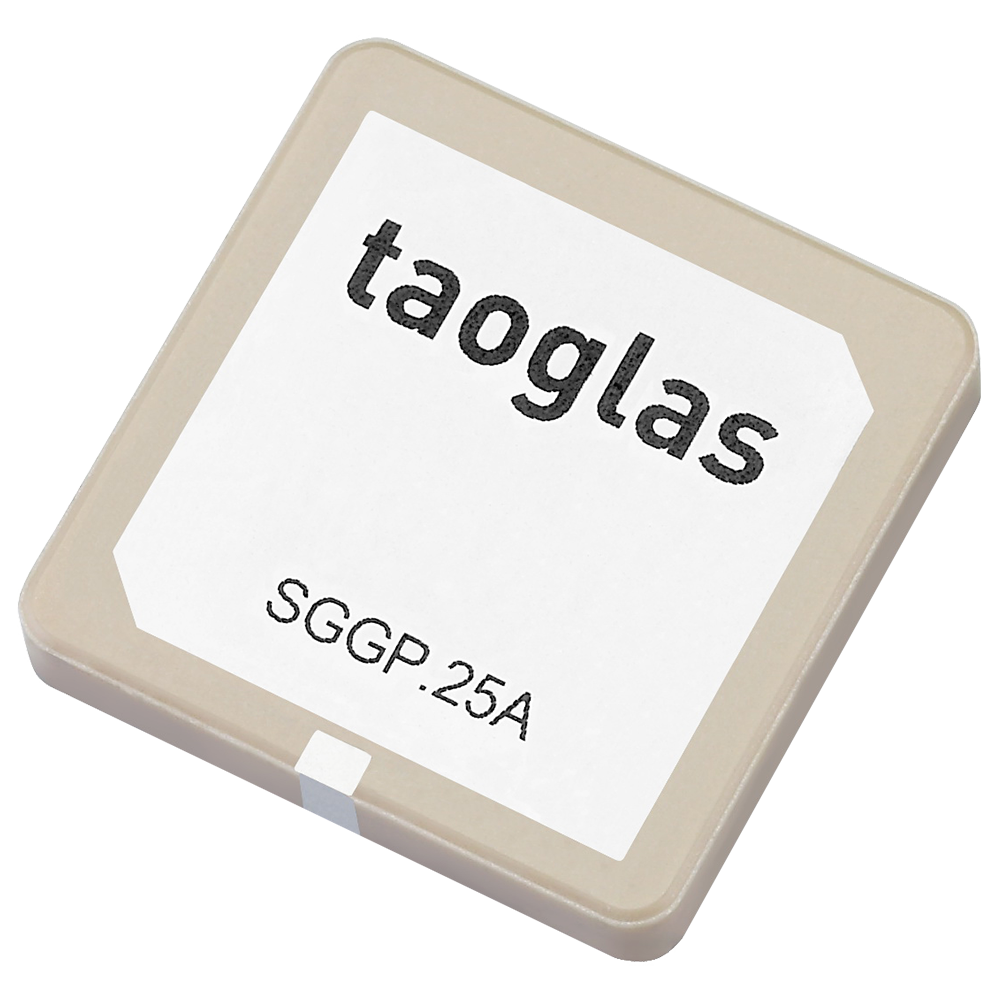

SGGP.25.4.A.02 GNSS SMD mount Patch Antenna
