Description

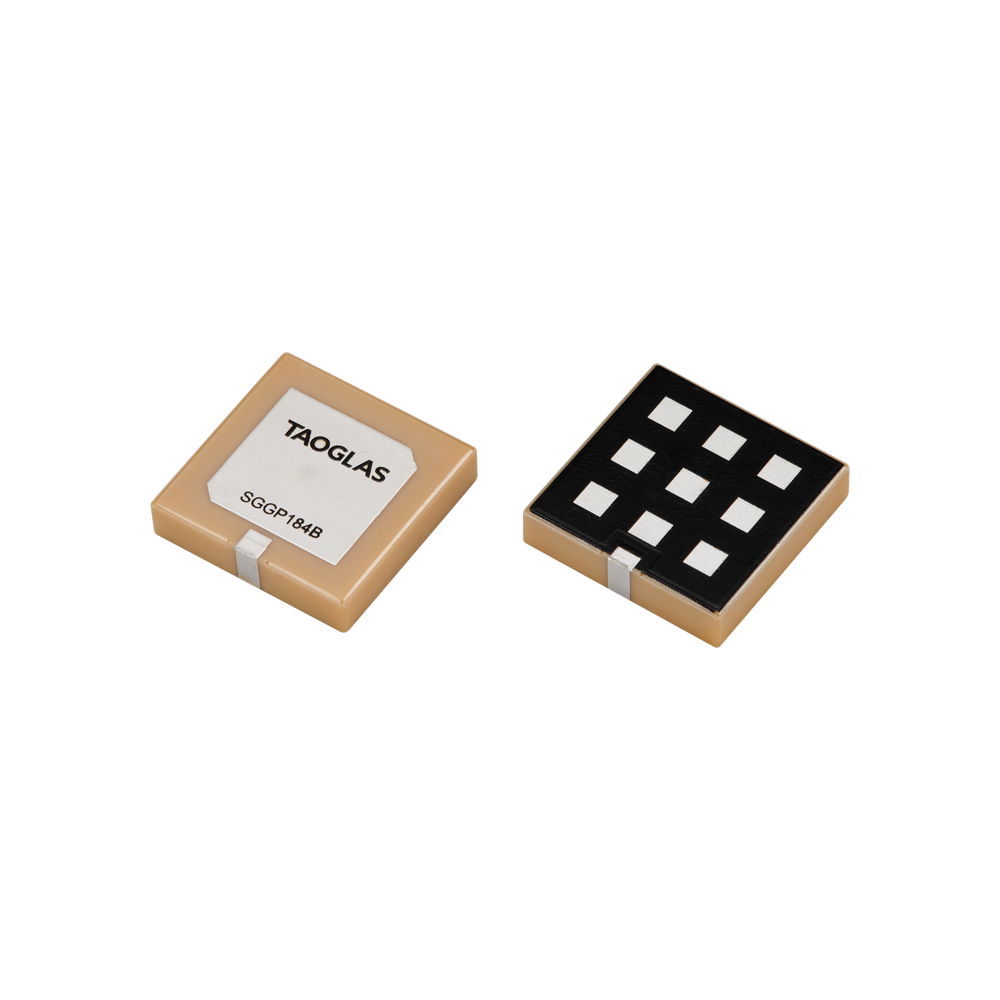

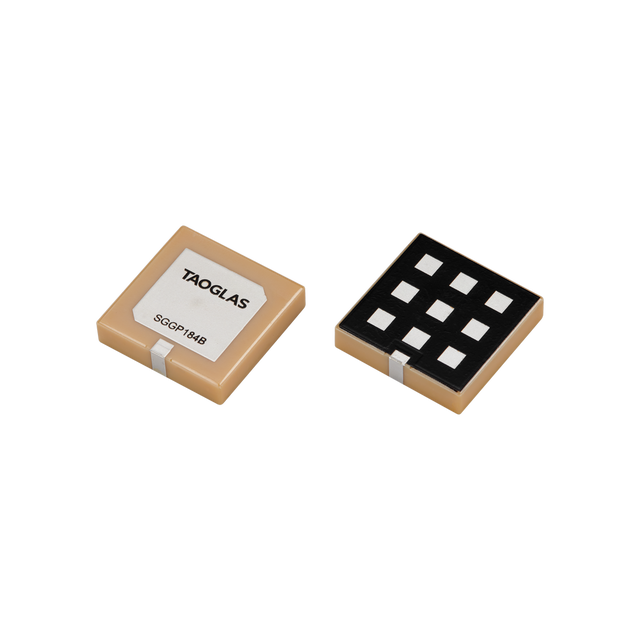

This compact ceramic passive GNSS patch antenna is designed for space-constrained embedded designs needing reliable positioning from multiple satellite constellations.
- Low-profile ceramic patch form factor for compact device designs
- Multi-constellation GNSS support (GPS/GLONASS/Galileo/BeiDou)
- SMD/SMT mounting for streamlined PCB assembly
- Additional solder mask helps improve durability during high-volume assembly
Typical use cases include vehicle tracking and fleet management systems, wearables, and navigation devices.
Technical Specifications
Operating Temperature: -40°C to 105°C
Antenna Technologies: Patch
Location: Internal
Mounting: SMD/SMT Mount
Satellite Navigation: GNSS
Type: Single
Dimensions: Ø18 x 4 mm
Weight: 5.18g
Material: Ceramic
GNSS (Passive)
Standards: GPS/GLONASS/Galileo/BeiDou
Frequency: 1559-1565, 1565-1586, 1596-1610 MHz
GNSS Bands: B1I (1561 MHz), L1/E1 (1575.42 MHz), G1 (1602 MHz)
Polarization: RHCP
Impedance: 50 Ω
VSWR: <2
Efficiency (%): 29.6, 43.2, 46.4
Average Gain (dB): -5.28, -3.64, -3.33
Peak Gain (dBi): -0.09, 1.22, 1.99
Test Conditions: Tested on a 50x50mm Ground Plane
