Description

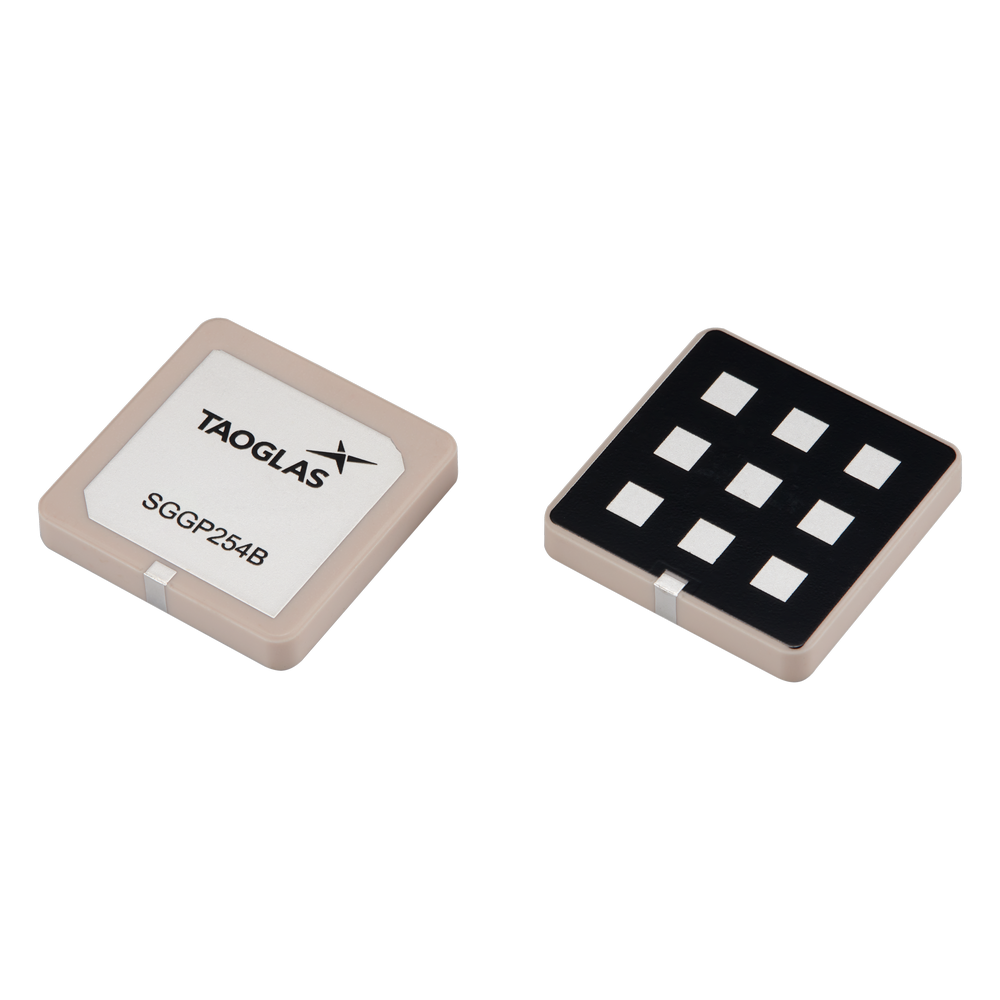

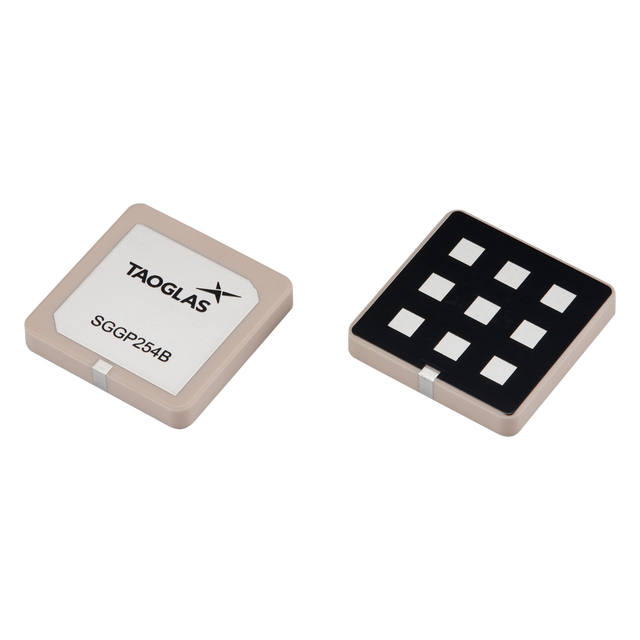

The SGGP254B is a compact ceramic GNSS passive patch antenna designed for space-constrained device designs. Its low-profile 25mm x 25mm footprint supports GPS/GLONASS/Galileo/BeiDou operation and is suited to high-volume assembly with an added solder mask to help improve durability during reflow.
- Compact embedded patch format: ideal for small product enclosures
- Multi-constellation GNSS support: enables broad satellite compatibility
- Designed for SMT integration: suitable for automated manufacturing
- Compliance: RoHS & REACH compliant
Typical applications include:
- Vehicle Tracking and Fleet Management Systems
- Wearables
- Navigation Devices
Automotive-grade testing and documentation options (e.g., AEC-Q200 testing support, PPAP, IMDS) may be available on request.
Technical Specifications
Operating Temperature: -40°C to 105°C
Antenna Technologies: Patch
Location: Internal
Mounting: SMD/SMT Mount
Satellite Navigation: GNSS
Type: Single
Frequency: 1559-1610 MHz
Polarization: RHCP
Impedance: 50 Ω
VSWR: <2
Gain (Max): 2.57 dBi
Dimensions: Ø25 x 4 mm
Weight: 10g ± 3%
Compliance: RoHS & REACH Compliant
