Description

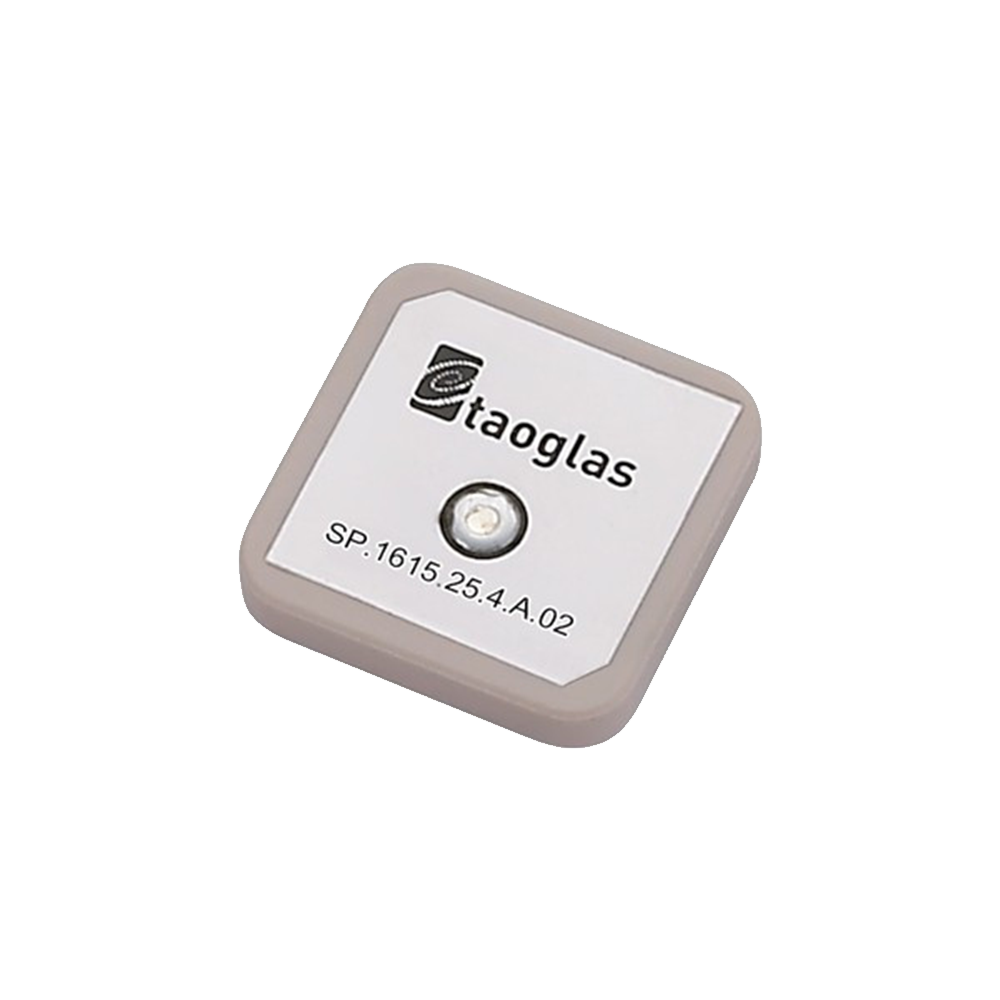

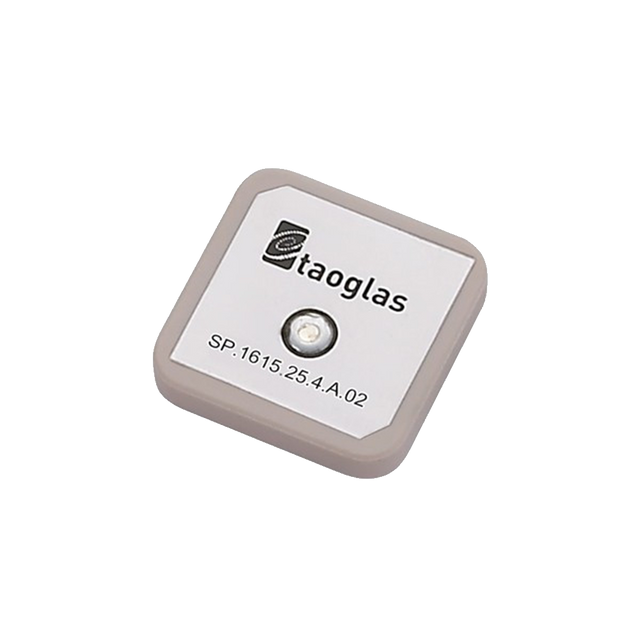

This miniaturized ceramic patch antenna is designed for Globalstar applications in compact, embedded devices. It is optimized for stable upper-hemisphere radiation performance when integrated with a reference ground plane, making it well-suited to mobile Globalstar designs.
- Compact embedded patch form factor for space-constrained devices
- Designed for Globalstar 1615 MHz operation
- Stable radiation characteristics and low axial ratio performance when properly integrated
- Integration-friendly mounting approach using pin and double-sided adhesive
Technical Specifications
Operating Temperature: -40 C to +105 C
Antenna Technologies: Patch
Location: Internal
Mounting: Pin/Adhesive Mount
Type: Single
Dimensions: 25*25*4mm
Weight: 5.8g
Globalstar
Frequency: 1615.68 4.1 MHz
Center Frequency: 1615 MHz 3 MHz (With 6040mm GND Plane)
Impedance: 50 Ohm
VSWR: 1.5 max (Center Frequency)
Bandwidth: 26 MHz min (Return Loss@-10 dB)
Peak Gain: 5 dBi
Polarization: LHCP (Left Hand Circular Polarization)
Axial Ratio: 3 Max. @ Zenith
Termination Style: Pin
