Description

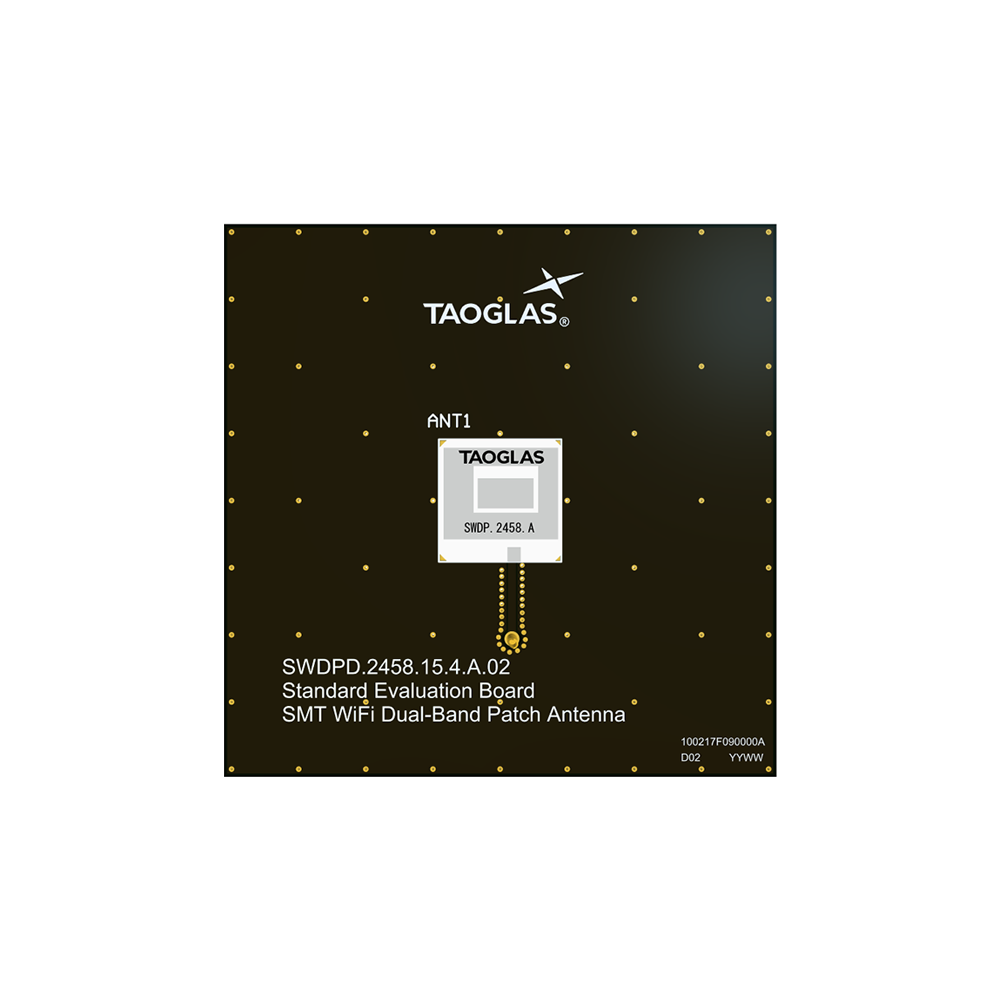

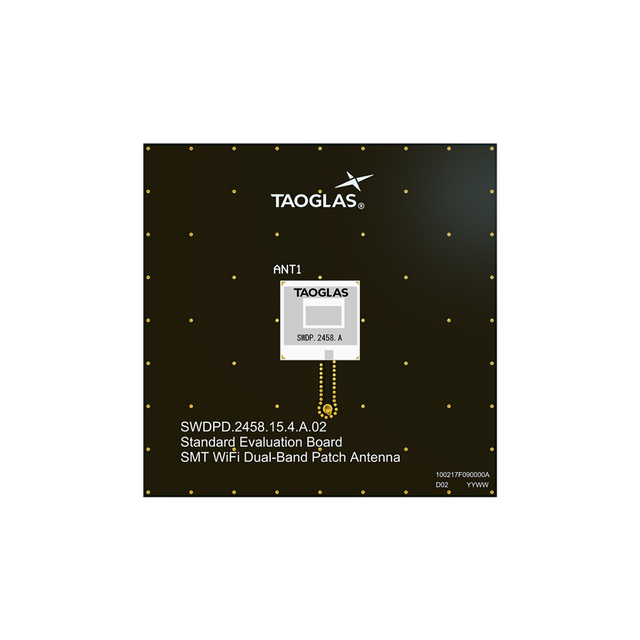

This evaluation board is designed for the SWDP.2458.15.4.A.02 embedded dual-band Wi-Fi® ceramic patch antenna, providing a convenient platform for performance evaluation and integration testing in compact devices.
The ceramic patch design delivers high efficiency and directional coverage in a small footprint, making it well-suited for applications where improved range and coverage are required versus typical low-gain chip antennas. Dual linear polarization across the 2.4GHz and 5.8GHz Wi-Fi bands helps improve isolation between bands and reduce interference from nearby transmitters.
Key features
- Embedded dual-band Wi-Fi® ceramic patch antenna evaluation platform
- Compact patch size suitable for small device designs
- Dual linear polarization for improved isolation
- SMD mounting approach supports high-volume manufacturing concepts
- Designed around a 70x70mm ground plane reference
Typical applications
- Access Points
- Tablets
- High definition, high throughput video streaming routers
- High data MIMO bandwidth routers
- Automotive
- Home and industrial in-wall Wi-Fi® automation
- Drones/Quad-copters
- UAV
- Long range Wi-Fi® remote control applications
Custom tuning may be necessary for different ground planes and device environments. Custom tuned versions for different ground planes and housing environments may be available subject to NRE and minimum order quantity.
Technical Specifications
Operating Temperature: -40°C to 85°C
Antenna Technologies: Patch
Location: Internal
Mounting: SMD Mount
Short-Range Wireless Standards: Wi-Fi
Type: Single
Dimensions: 15mm*15mm*4mm 2400MHz to 2500MHz 5150MHz to 5850Mhz SMD Mount Lightweight and Ro
Weight: 3.5g
Wi-Fi Dual-Band (Ceramic Patch)
Frequency: 2400~2500MHz, 4900~5500MHz, 5500~5850MHz
Standards: IEEE 802.11 Dual-Band Wi-Fi® systems
Polarization: Linear (Dual Linear Polarization)
Impedance: 50Ω
Input Power: 10W
Efficiency (%): 48.45, 44.95, 42.64
Average Gain (dBi): -3.15, -3.47, -3.70
Peak Gain (dBi): 5.70, 5.29, 4.03
Antenna Dimensions: 15mm*15mm*4mm
Reference Ground Plane: 70*70mm
