Description

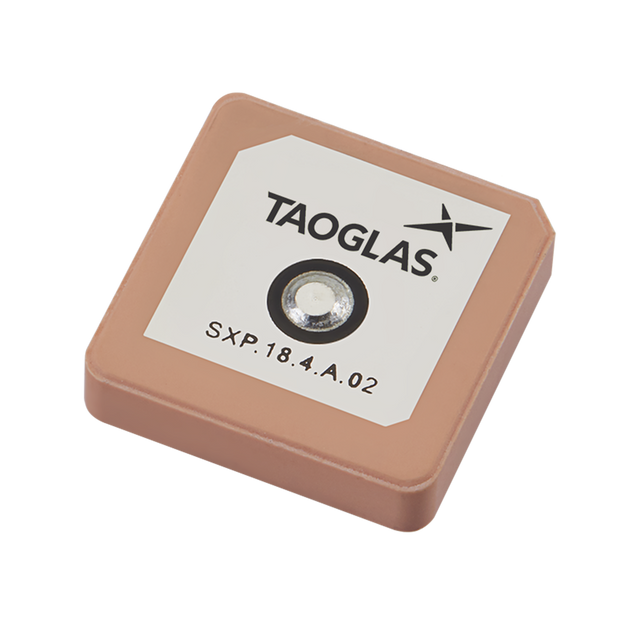

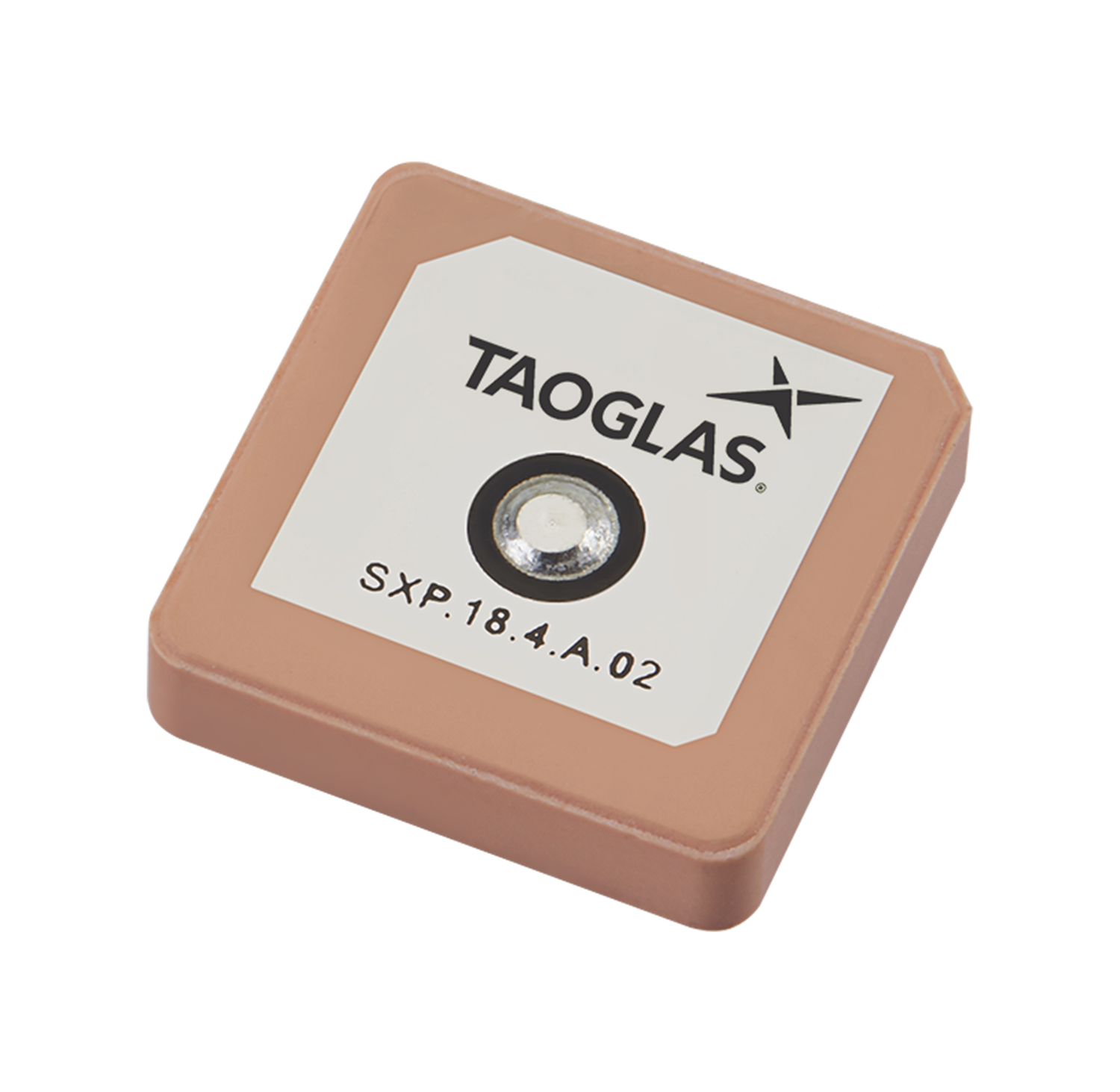

This compact ceramic patch antenna is designed for Satellite Digital Audio Radio Services (SDARS) and SiriusXM operation across the 2320–2345 MHz band. It provides left-hand circular polarization (LHCP) and strong zenith-gain performance for reliable satellite radio reception in vehicle device environments.
- SDARS/SiriusXM band support: Optimized for satellite radio services in automotive installations
- Compact patch form factor: 18mm x 18mm footprint for space-constrained designs

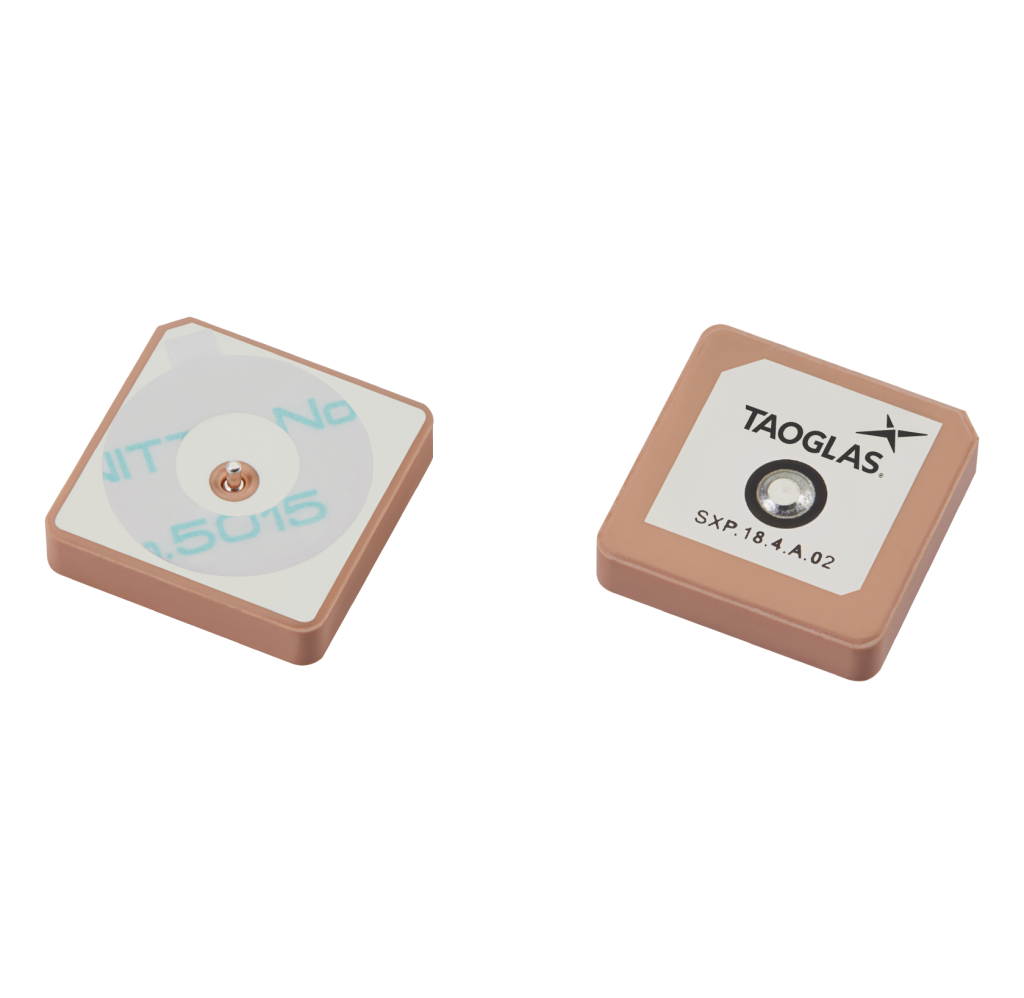

- Mounting options: Pin termination with adhesive mounting support for secure integration
Custom tuning options may be available for optimization in specific device environments.
Technical Specifications
Operating Temperature: -40°C to 85°C
Antenna Technologies: Patch
Location: Internal
Mounting: Pin/Adhesive Mount
Type: Single
Dimensions: of just 18mm x 18mm x 4mm, and is manufactured with high-quality ceramic. It is
Weight: 4.9g
SDARS/SiriusXM
Frequency: 2320MHz - 2345MHz
Standards: SDARS/SiriusXM
Centre Frequency: 2332.5 MHz ± 12.5 MHz
SIRIUS Frequency: 2326.25 MHz ± 6.25 MHz
XM Frequency: 2338.75 MHz ± 6.25 MHz
Polarization: LHCP
Impedance: 50 Ω
VSWR: <2:1
Return Loss: SIRIUS: -10 dB max.; XM: -10 dB max.
Zenith Gain: SIRIUS: +8 dBiC typ.; XM: +9.5 dBiC typ.
Efficiency: SIRIUS: 86 %; XM: 87 %
Termination Style: Pin
Material: Ceramic
Pin Diameter: 0.9mm
Pin Length: 2.4mm
