Description

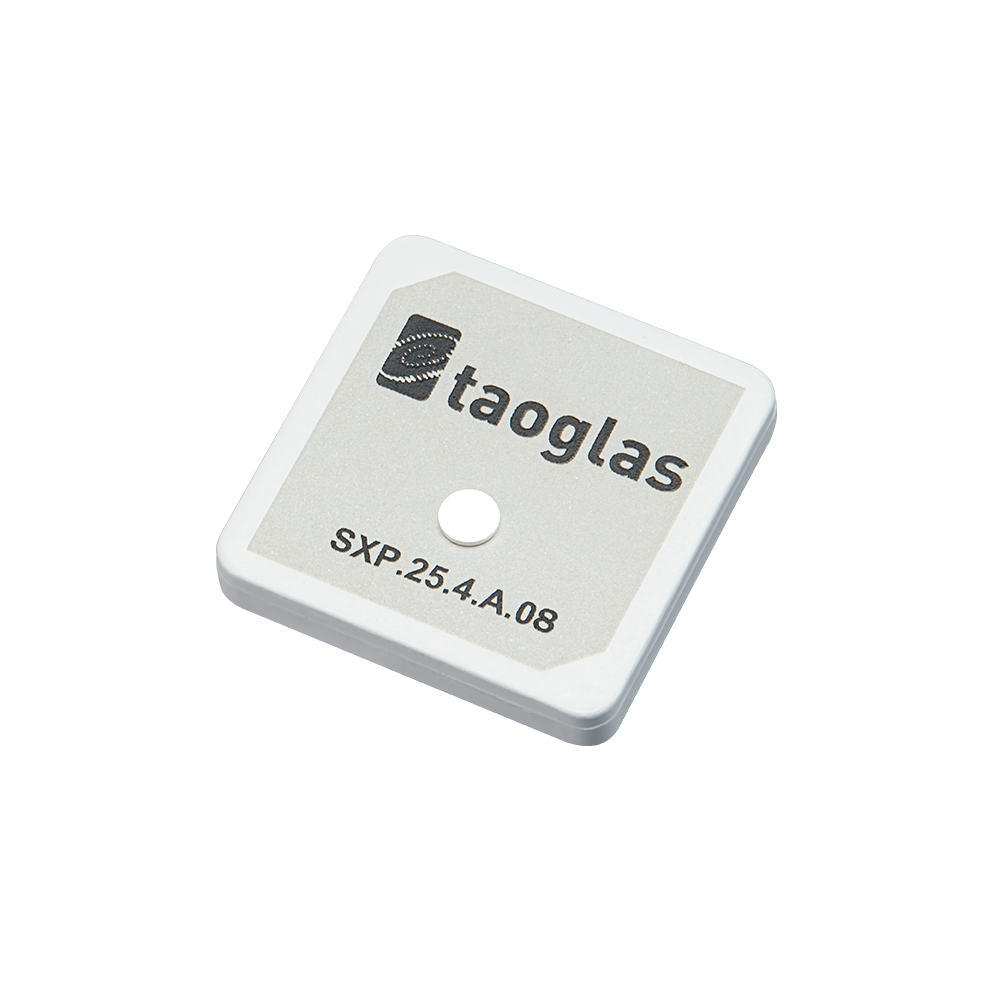

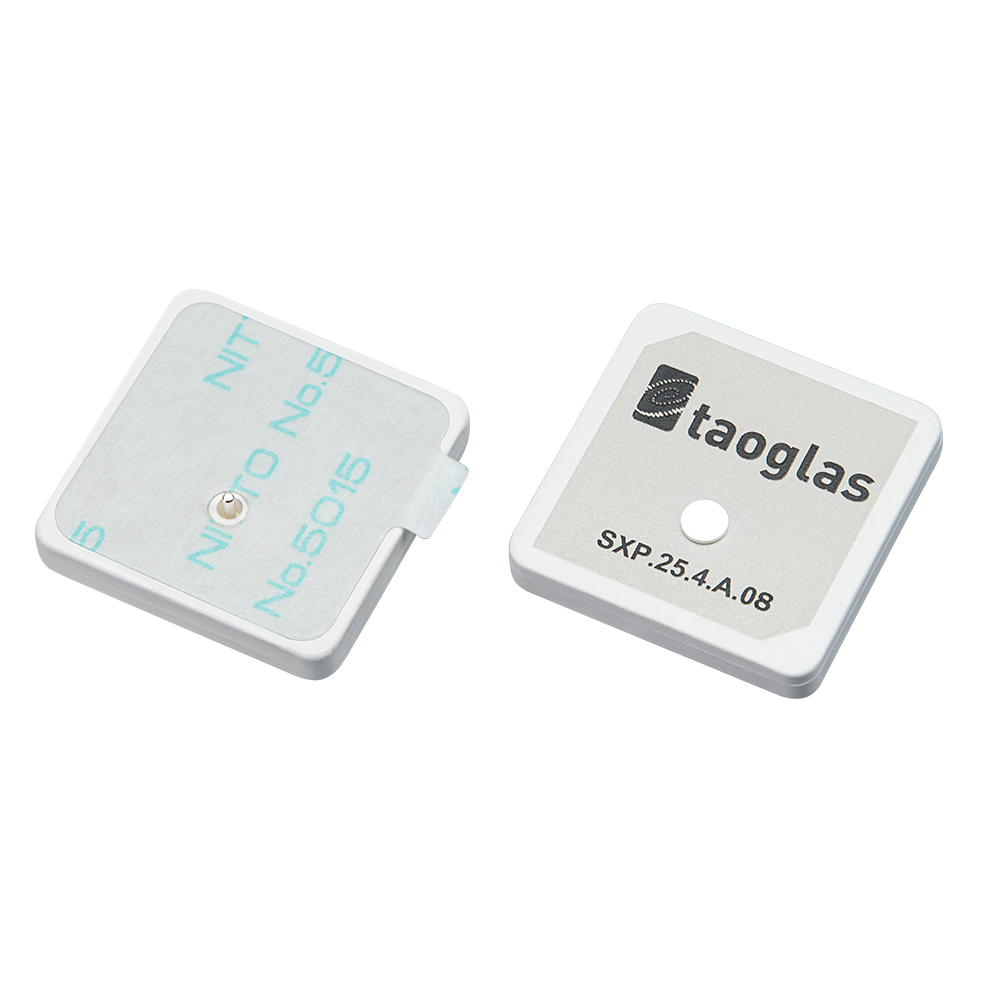

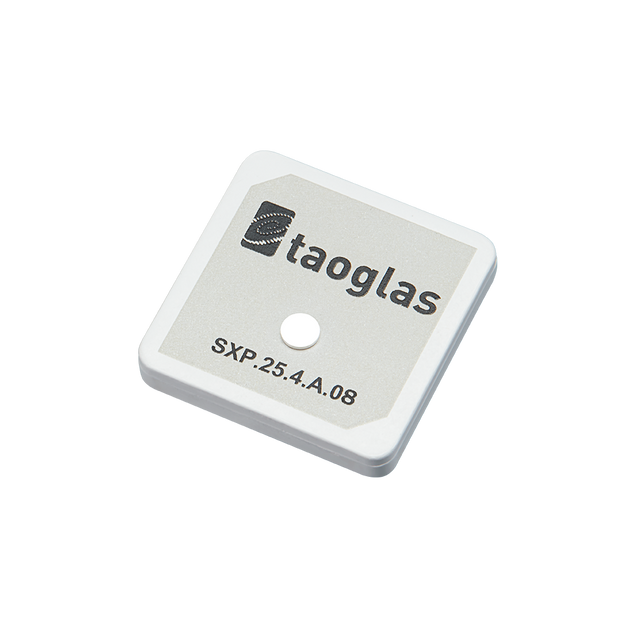

The SXP.25 is a compact, impact-resistant SDARS patch antenna designed for Satellite Digital Audio Radio Services (SDARS). Built with Terrablast polymer dielectric material, it is engineered to withstand drops, crashes, and physical shock while maintaining strong performance in the SDARS band.
- Rugged patch design: Ultra-impact resistant and optimized for demanding environments
- High performance: Designed for strong zenith gain with excellent efficiency
- Compact and lightweight: Low-profile form factor suited to space-constrained device designs
- Polarization: Left-hand circular polarization (LHCP) for SDARS reception
Commonly suited to automotive designs requiring compatibility with popular satellite radio services.
Technical Specifications
Operating Temperature: -40°C to 85°C
Antenna Technologies: Patch
Location: Internal
Mounting: Pin/Adhesive Mount
Type: Single
Frequency: 2320MHz - 2345MHz
Impedance: 50Ω
Polarization: LHCP
VSWR: <2
Dimensions: 25mm x 25mm x 4mm Ultra Impact Resistant Left Hand Circularly Polarised Manufact
Weight: 5.6g
Gain (Max): 9
