Description

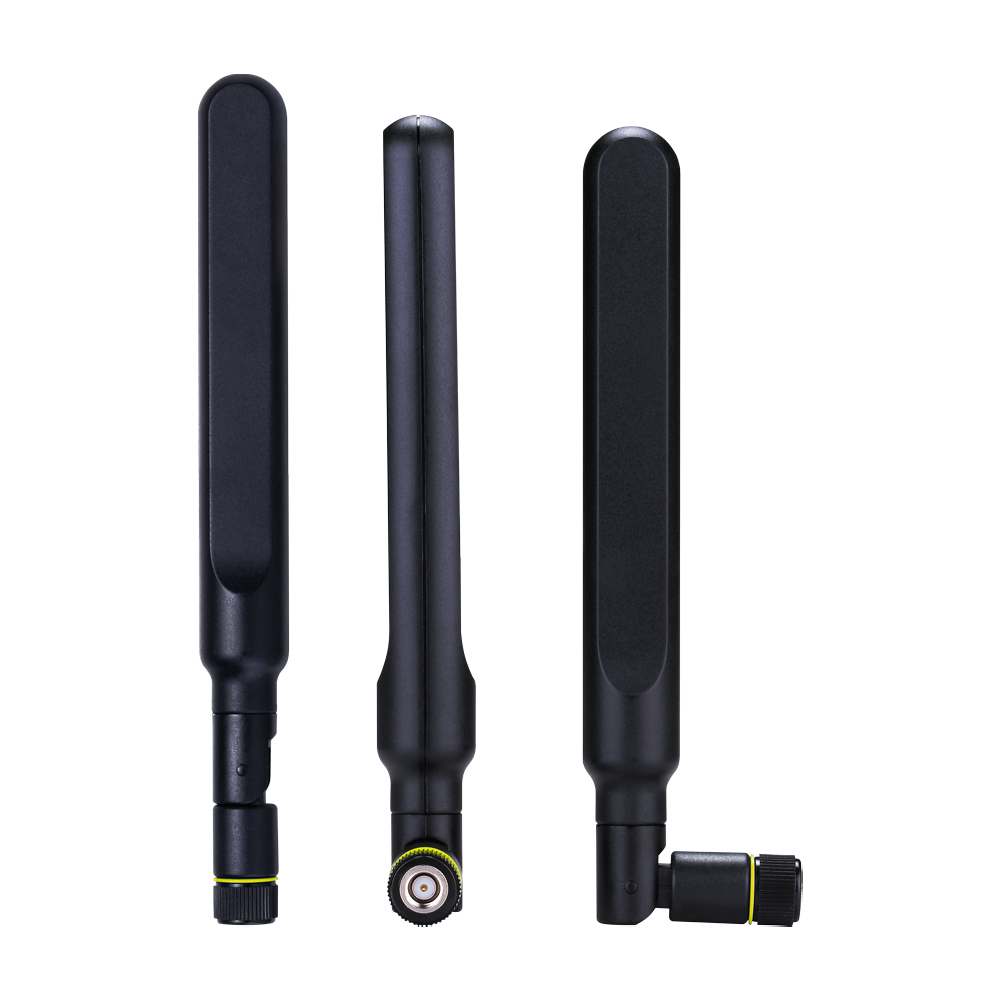

The TD.10 Triton is a compact, high-performance terminal-mounted dipole antenna designed for 5.9GHz DSRC / C-V2X communications.

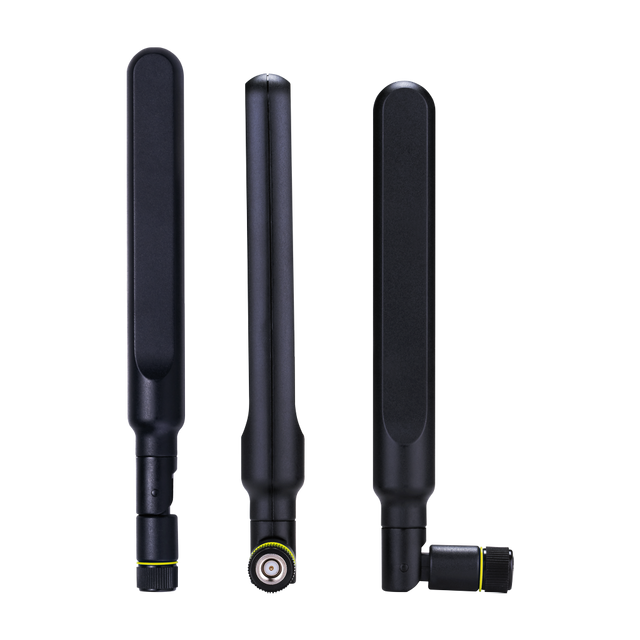

It is optimized for short-range, low-latency links and is well suited to vehicle safety and other V2X use cases. The design does not require a ground plane, and the hinged connector can be positioned straight, at 45 degrees, or at a right angle to support flexible device integration.
- Designed for: 5.9GHz DSRC / C-V2X
- Form factor: Compact terminal-mount dipole
- Integration benefit: No ground-plane required
- Mechanical benefit: Hinged connector for adjustable orientation
Connector & Cable
- Connector Type: SMA-M
Technical Specifications
Operating Temperature: -40°C to 85°C
Antenna Technologies: Dipole
Location: External
Mounting: Terminal Mount
Type: Single
Frequency: 5850-5925MHz
Impedance: 50 Ω
Polarization: Linear
VSWR: < 2:1
Dimensions: 169*18*13mm RoHS and REACH Compliant
Weight: 21.75 g
Recommended Torque for Mounting: 0.9 N•m
Max Torque for Mounting: 1.176 N•m
Connector: Hinged SMA Male
