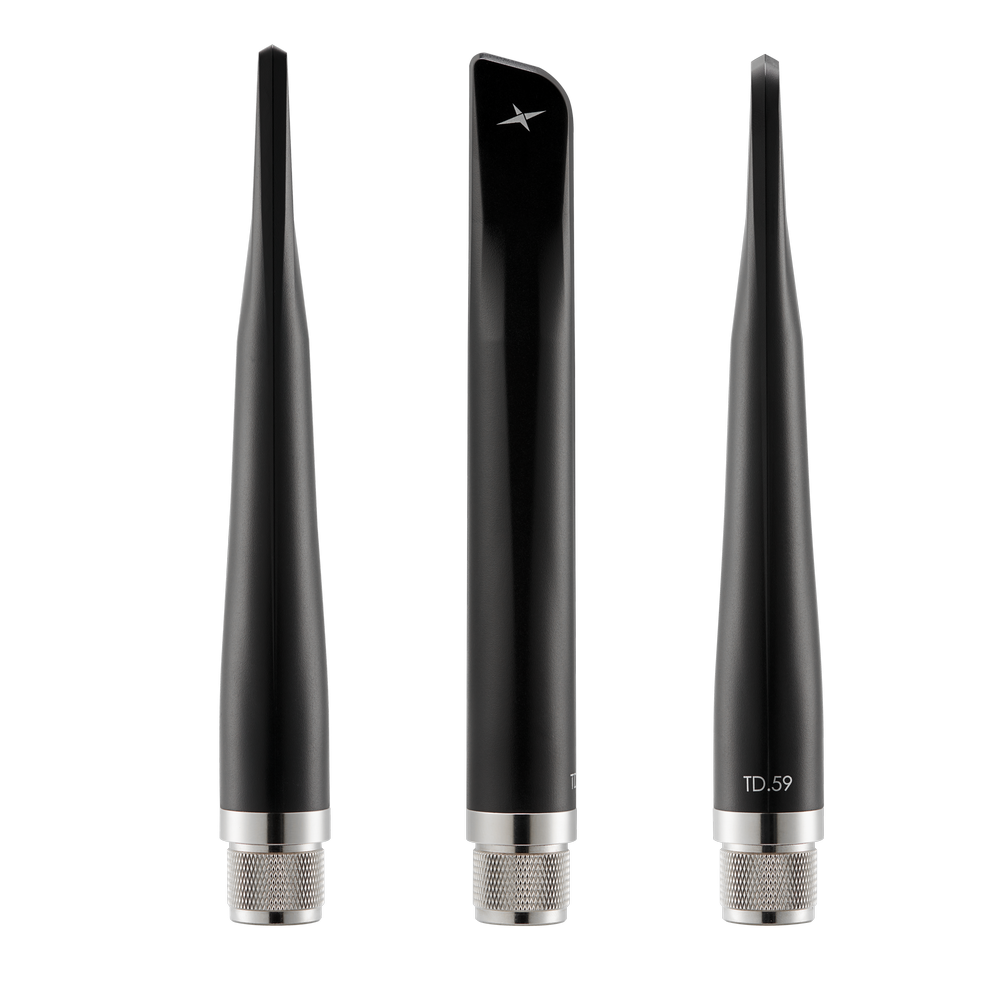

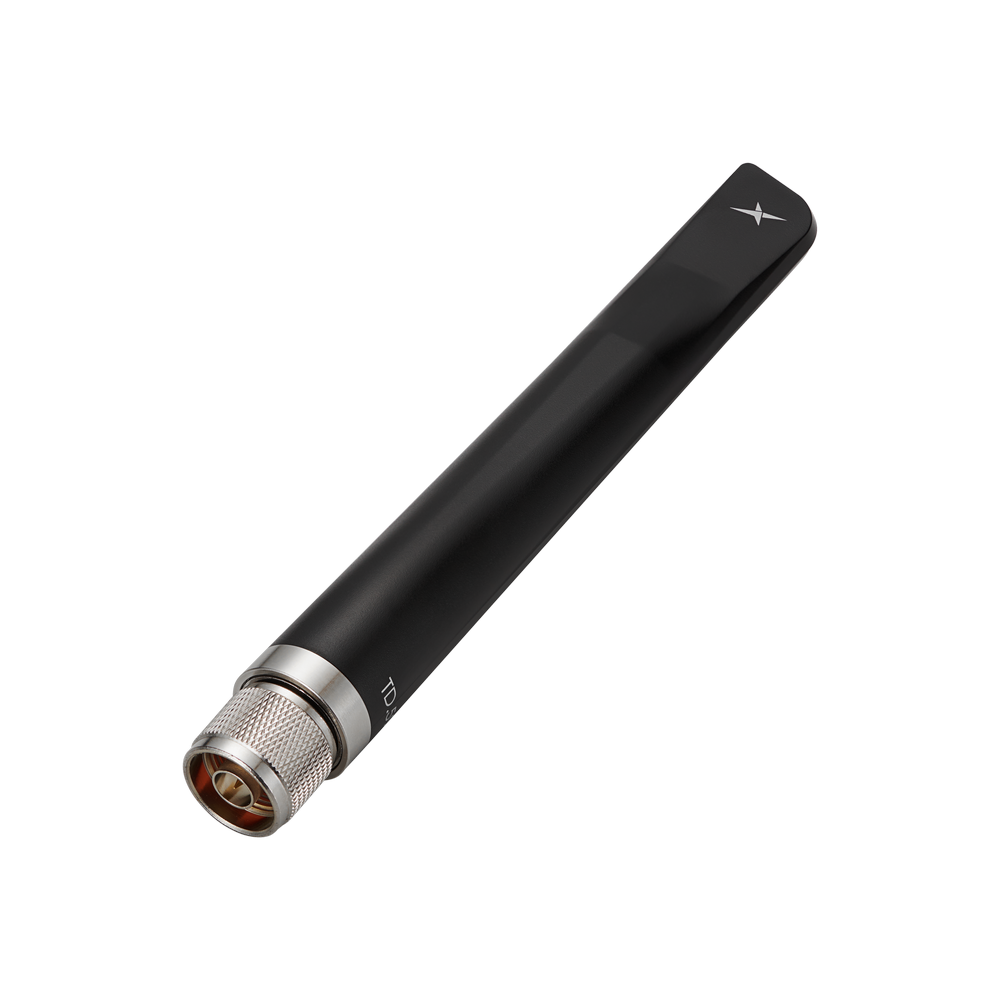

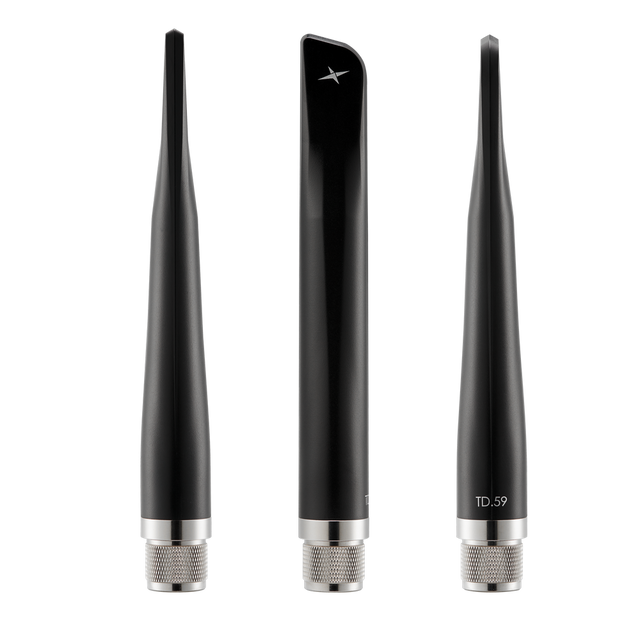

TD.59.6H31 Antenna Outdoor External C-V2X, DSRC terminal mount dipole N-Type Male IP67 for Public Safety & Smart Cities, Traffic Management, Connected Transportation

This high-performance omnidirectional dipole antenna is designed for DSRC systems across the 5.9GHz band. Its dipole design is ground-plane independent, making it well-suited to a wide range of vehicle and infrastructure installations where consistent, all-around coverage is needed.

• Optimized for DSRC / C-V2X: Designed to cover the DSRC 5.9GHz band used in connected transportation deployments.
• Omnidirectional coverage: Supports reliable reception and transmission in mobile and fixed installations.
• Rugged outdoor design: IP67-rated enclosure and durable construction for demanding environments.

Typical use cases include: Public Safety & Smart Cities, Traffic Management, and Connected Transportation.

Connector & Cable

• Connector Type: N-Type Male

Technical Specifications

Operating Temperature: -40°C to 85°C
Antenna Technologies: Dipole
Location: External
Mounting: Terminal Mount
Type: Single
IP Rating: IP67
Dimensions: Ø22.8 x 180.20 mm
Weight: 62.5 g

DSRC / C-V2X

Frequency: 5850-5925 MHz
Standards: DSRC, C-V2X
Connector Type: N-Type Male
Impedance: 50Ω
Polarization: Linear
VSWR: <2
Efficiency (%): 90.5
Average Gain (dB): -0.43
Peak Gain (dBi): 6.88
Radiation Pattern: Omnidirectional
Max. Input Power: 10W
Material: PC+ABS
