Description

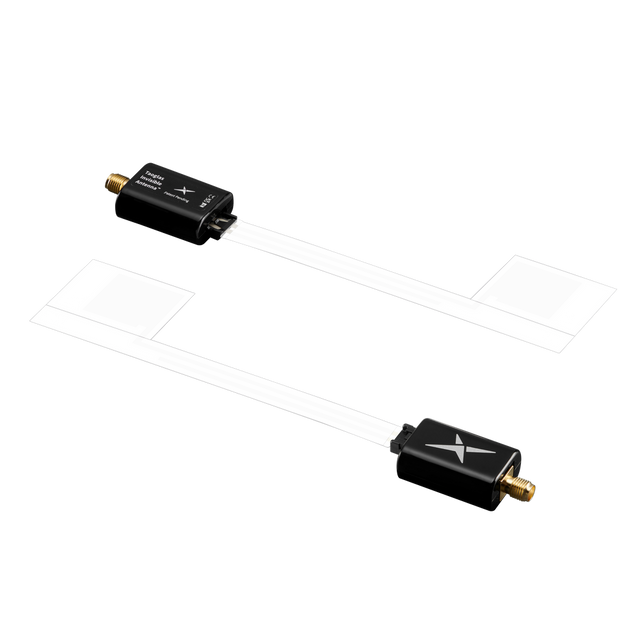

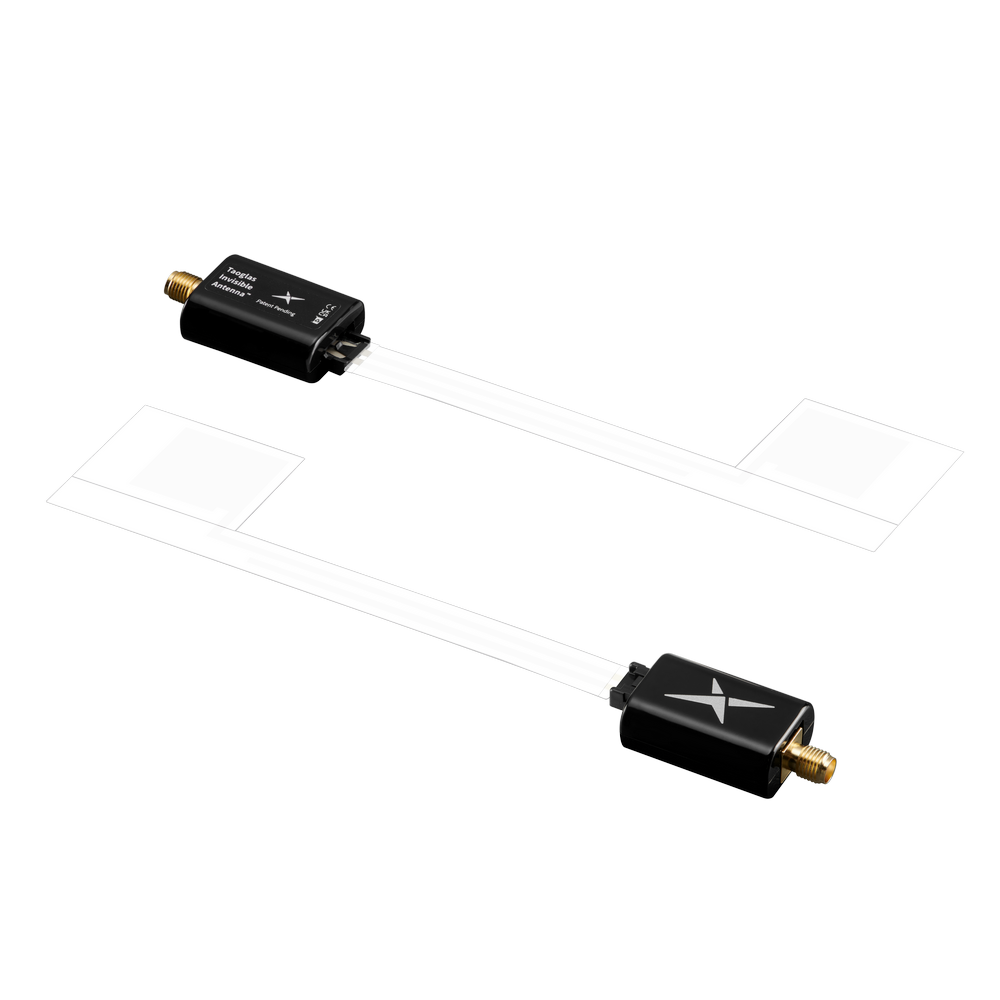

This invisible, transparent polymer antenna is designed for discreet multiband GNSS reception in applications where the antenna must remain hidden or mounted behind visible surfaces.
- Covert installation: transparent polymer design helps keep the antenna out of sight
- Multiband GNSS support: designed to cover multiple GNSS bands for broad compatibility
- Easy mounting: supplied with pre-adhered adhesive to simplify placement on target surfaces
- Flexible construction: alternative to standard flexible PCB antennas for clean, low-visibility installs
Typical applications include:
- Automotive and Commercial Transportation
- EV Charging and Parking Bays
- Digital Signage and Display screens
- Point Of Sale Kiosks
Connector & Cable
- Connector Type: SMA-F
- Cable Length: None
Installation / Environmental
The installation of the Invisible Antenna® series follows a similar installation method to flexible PCB antennas. Installing a transparent material may show obvious flaws/debris, take care to wipe the area clean before adhering the antenna. The flexible antenna can be disconnected from the body to make installation easier. Where support may be an issue, we would advise using a double-sided adhesive on the housing to ensure the housing body installation does not add any additional pull force to the antenna as this will affect the antennas performance and the adhesive’s performance. The feed is not designed to be load bearing and loads of over 0.5Kg can break or damage the feed resulting in the antenna disconnecting.
The TFX125.B is connected via a SMA(F) connector for ease of installation. If a custom connector is required, please contact your regional customer support team.
Technical Specifications
Operating Temperature: -40°C to 85°C
Location: Internal
Mounting: Adhesive Mount
Satellite Navigation: GNSS
Type: Single
Impedance: 50 Ω
Polarization: Linear
VSWR: <2:1
Length: 172 mm
Width: 37 mm
Height: 13 mm
Weight: 5g
GNSS (Passive)
Frequency: 1176.45MHz - 1603MHz
GNSS Bands: L1/L2/L5/L6
Constellations: GPS, GLONASS, Galileo, BeiDou, QZSS, IRNSS, SBAS, L-Band
Gain (Max): 4.3
Connector Type: SMA(F)
Cable Length: None
