Description

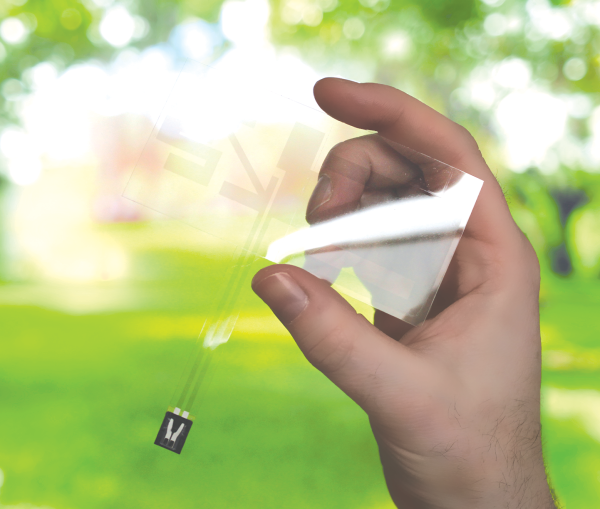

TFX62.A is a transparent, ultra-low-profile “invisible” antenna designed for wideband cellular coverage and discreet integration on visible surfaces. It is supplied with pre-adhered adhesive for quick placement and is well-suited for installations where conventional antennas are undesirable or cannot be seen.
- Invisible / transparent form factor: ideal for covert placement on glass or display surfaces
- Wideband cellular support: designed to cover worldwide 5G/4G bands
- Designed for real-world installs: placement guidance to help reduce detuning from nearby metal
- Suitable for NTN devices: recommended for Band 255 (Global), Band 256 (Europe), and Band 23 (North America)
Typical applications include: Automotive and Commercial Transportation, EV Charging and Parking Bays, Digital Signage and Display screens, Point Of Sale Kiosks.
Connector & Cable
- Connector Type: FAKRA Code D (M) Violet
Installation / Environmental
The installation of the Invisible Antenna series follows a similar installation method to flexible PCB antennas, as detailed in this application note. As installing a transparent material may show obvious flaws/debris, take care to wipe the area clean before adhering the antenna. The flexible antenna can be disconnected from the body to make installation easier. Where support may be an issue, we would advise using a double-sided adhesive on the housing to ensure the housing body installation does not add any additional pull force to the antenna as this will affect the antennas performance and the adhesive’s performance. The feed is not designed to be load bearing and loads of over 0.5Kg can break or damage the feed resulting in the antenna disconnecting.

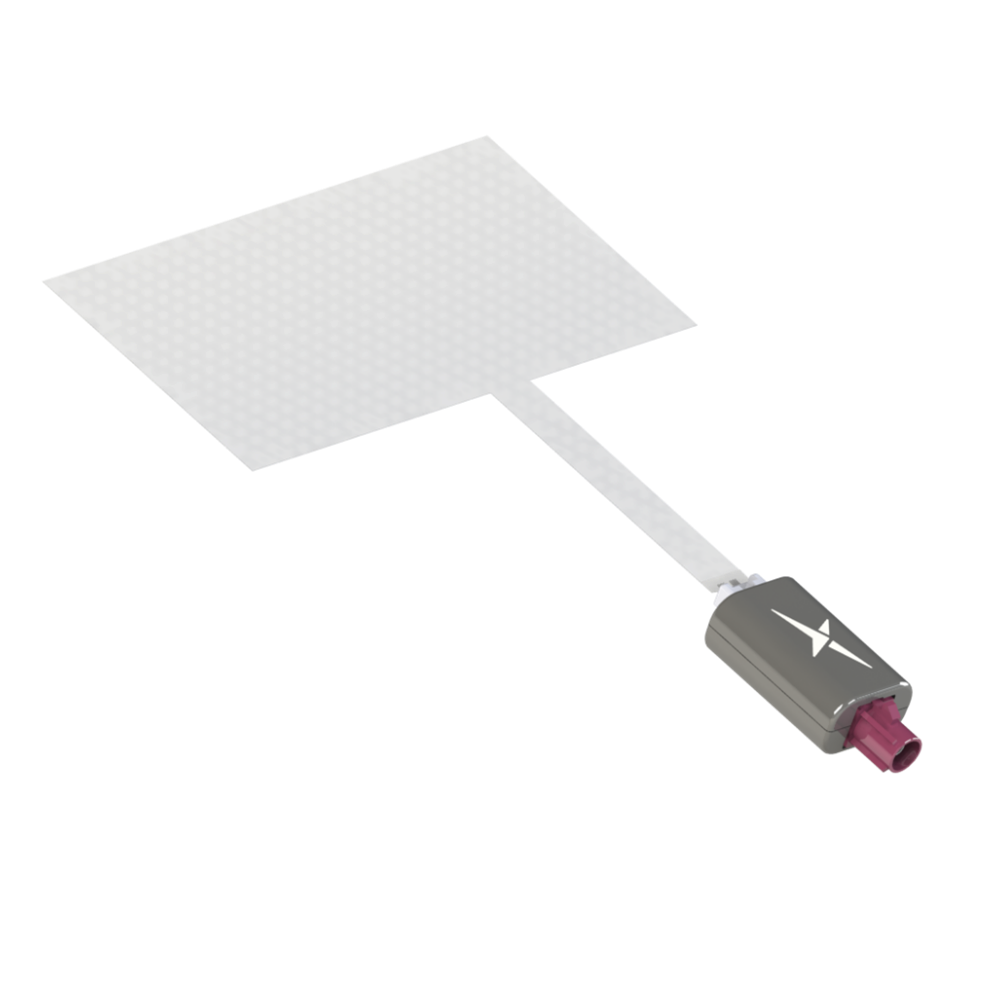

The TFX62 is connected via a FAKRA Code D male connector for ease of installation. If a custom connector is required please contact your regional customer support team.
Technical Specifications
Operating Temperature: -40°C to 85°C
Cellular Technologies: 5G
Location: Internal
LPWAN & IoT Communication: NB-IoT, Cat-M
Mounting: Adhesive Mount
Type: Single
Dimensions: 110mm * 160mm
Weight: 5g
5GNR/4G/3G/NB-IoT/NTN
Frequency: 600MHz - 6000MHz
Standards: 5GNR/4G/3G/NB-IoT/Cat M, NTN (Band 255/256/23)
Impedance: 50 Ω
Polarization: Linear
VSWR: <2:1
Radiation Pattern: Omni
Max. Input Power: 2W
Gain (Max): 3.29
Efficiency: up to 60%
Connector Type: FAKRA Code D (M) Violet
Cable Length: None
