THDR19PP Antenna Outdoor External 5G, GNSS, Wi-Fi 6E/7, ISM directional panel Thunder Ericsson R1900 IP67 for Critical Communications and Public Safety, Transportation & Fleet Management, Industrial and Rugged Environments, Enterprise & IoT Deployments

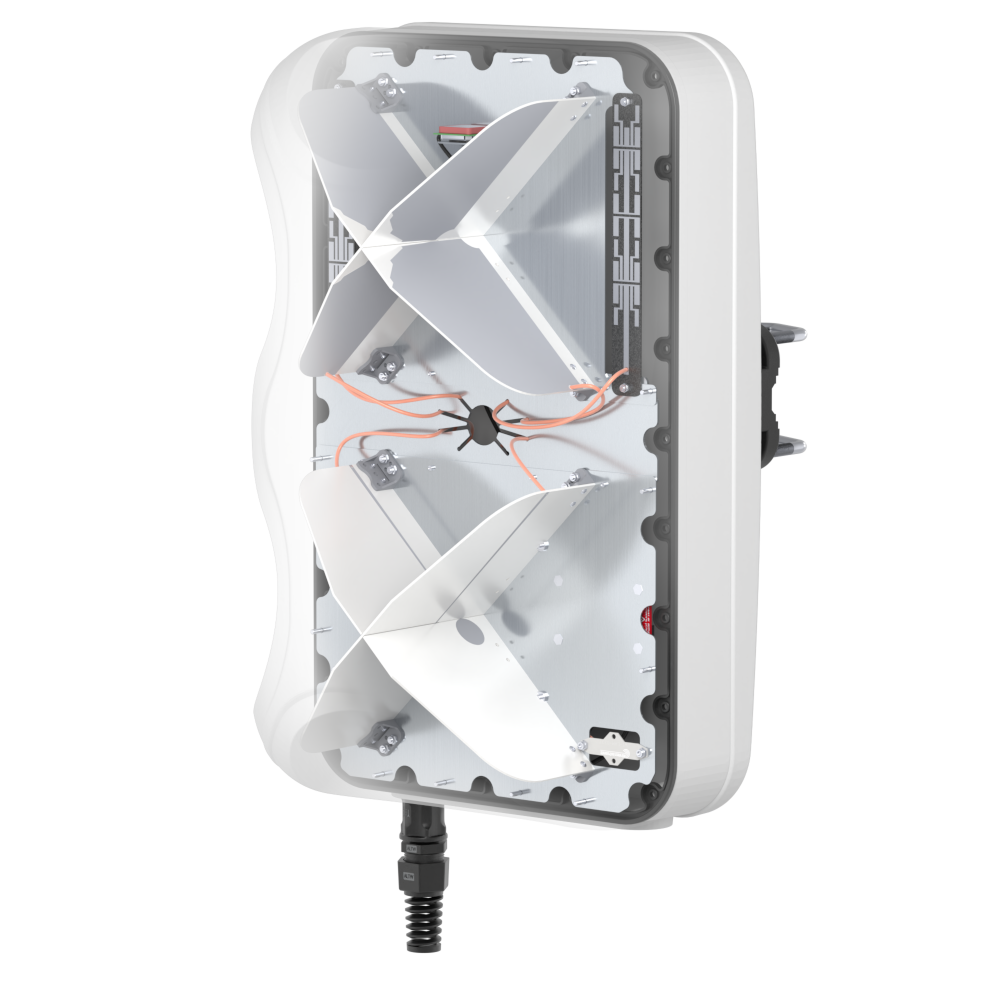

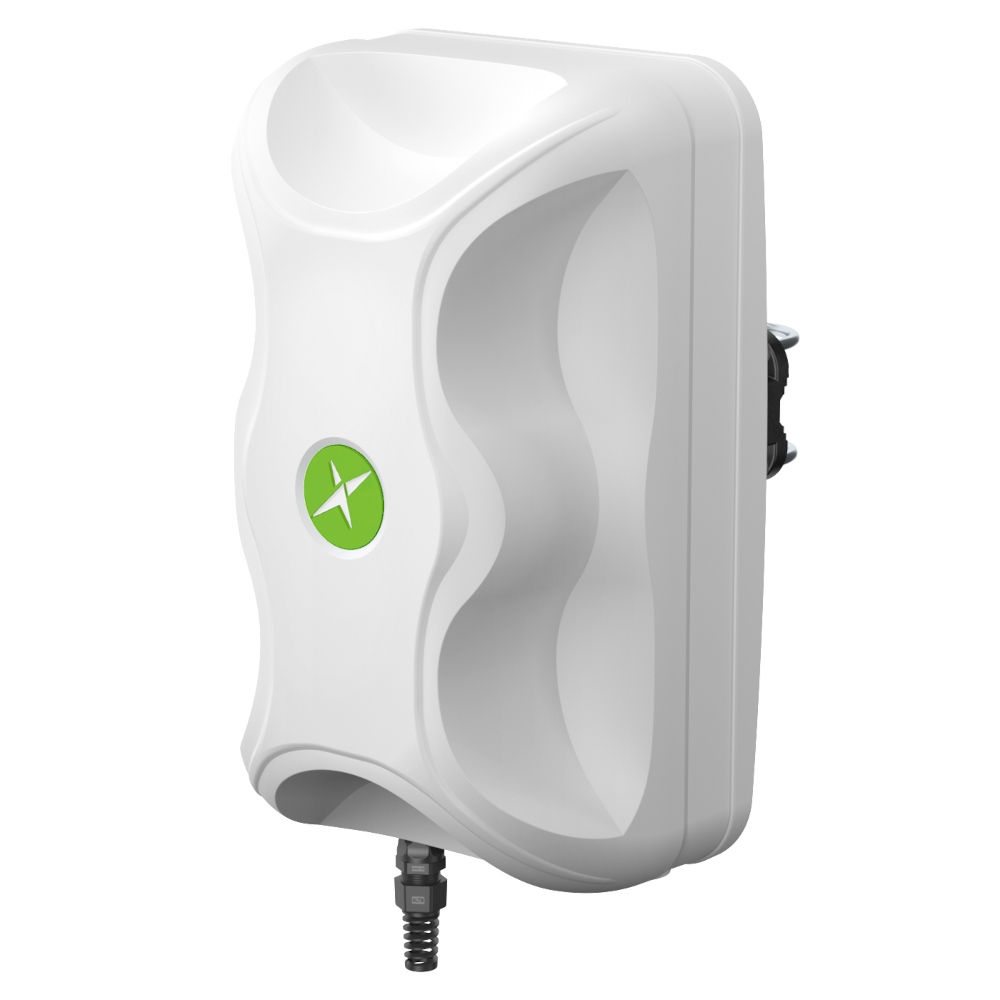

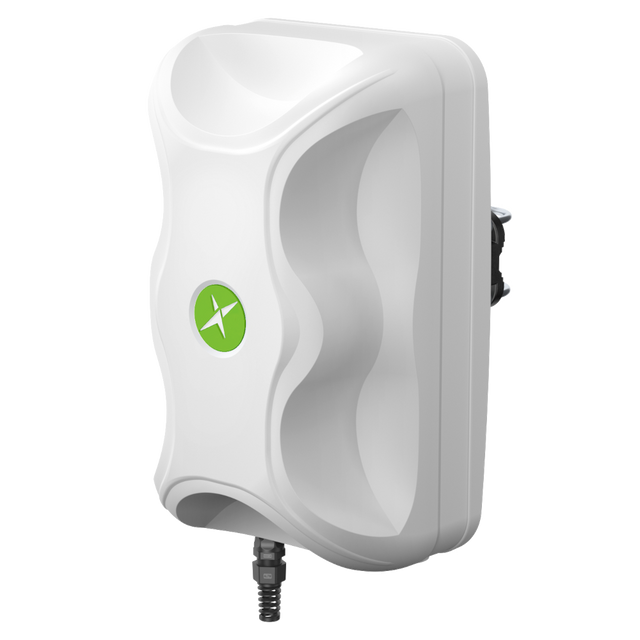

THDR19PP is an all-in-one integrated directional panel antenna enclosure designed for Ericsson (Cradlepoint) R1900 routers, built to support long-distance connectivity to the base station. It combines multi-band 5G/LTE directional MIMO antennas with embedded Wi-Fi, Bluetooth, and GNSS in a single rugged outdoor housing.

• All-in-one integration: antenna system plus cavity to install the Ericsson R1900 router
• Multi-technology coverage: supports 5G/LTE, Wi-Fi, Bluetooth, and GNSS in one enclosure
• Built for fixed outdoor deployments: robust waterproof enclosure for harsh industrial environments
• Included accessory: passive PoE splitter to separate data and power from a single Ethernet cable while maintaining gigabit transfer speeds and protecting the LAN port

Typical applications include Critical Communications and Public Safety, Transportation & Fleet Management, Industrial and Rugged Environments, and Enterprise & IoT Deployments.

Connections

4x 5G/LTE Antennas (617 - 960 MHz, 1.7 - 2.7 GHz, 3.3 - 4.6 GHz, 4.7 - 6.0 GHz)
2x Wi-Fi® Antennas (2.4 - 2.5 GHz, 5.0 - 7.2 GHz)
1x Bluetooth® Antenna
1x GNSS Antenna

Technical Specifications

Operating Temperature: -40°C to 75°C
Antenna Technologies: MIMO
Cellular Technologies: 5G
Location: External

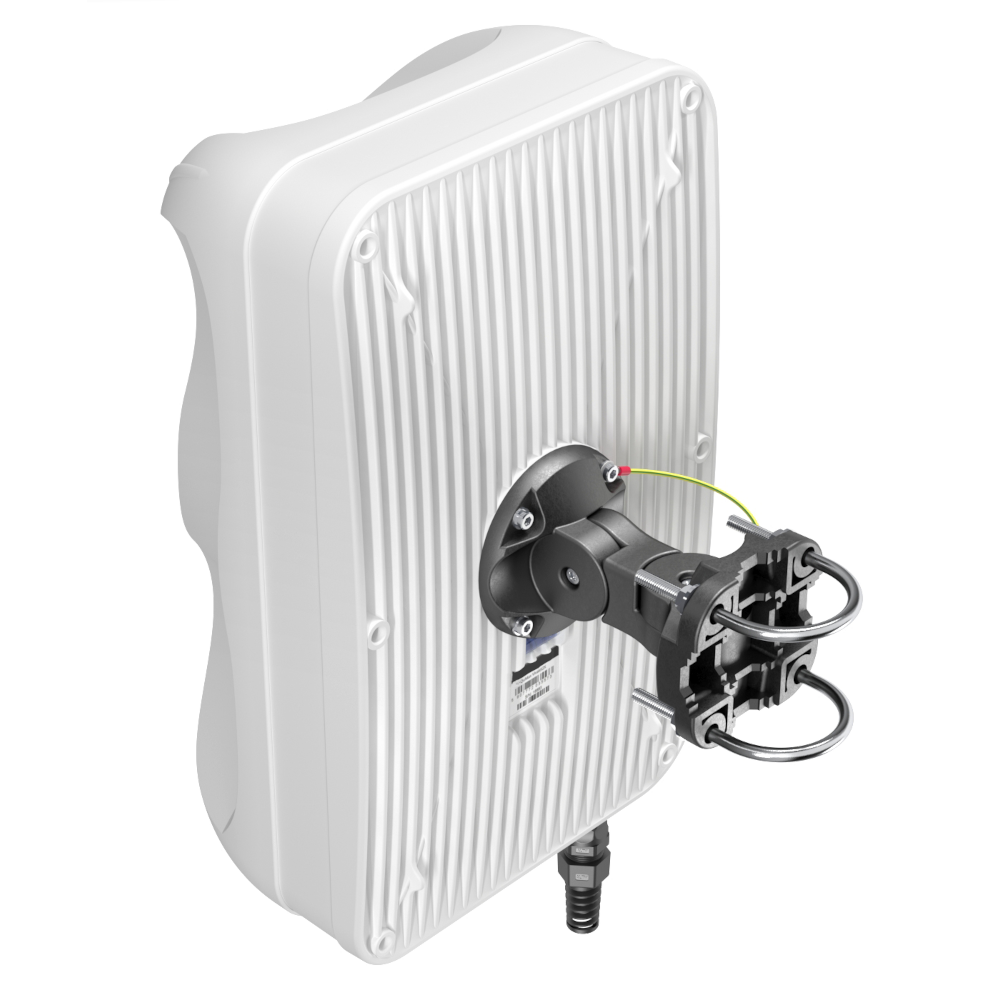

Mounting: Wall/Pole
Satellite Navigation: GNSS
Short-Range Wireless Standards: Wi-Fi, Bluetooth
Type: Combination
IP Rating: IP67
Frequency Range: 600MHz - 7125MHz
Impedance: 50
Dimensions: 486 x 292.2 x 210mm RoHS and Reach Compliant
Weight: 1800g
Connector Type: RJ45

5G/LTE (Directional MIMO)

Quantity: 4x
Frequency: 617 - 960 MHz, 1.7 - 2.7 GHz, 3.3 - 4.6 GHz, 4.7 - 6.0 GHz
Supported LTE Bands: 1, 2, 3, 4, 5, 7, 8, 9, 10, 12, 13, 14, 17, 18, 19, 20, 22, 25, 26, 27, 28, 29, 30, 33, 34, 35, 36, 37, 38, 39, 40, 41, 42, 43, 44, 46, 47, 48, 49, 52, 53, 65, 66, 67, 68, 69, 71, 85, 103, 106
Supported 5G Bands: n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n34, n38, n39, n40, n41, n46, n47, n48, n53, n65, n66, n67, n71, n77, n78, n79, n80, n81, n82, n83, n84, n85, n86, n89, n90, n95, n97, n98, n100, n101, n256
Gain: 617 - 960 MHz : 6 dBi; 1.7 - 2.7 GHz : 7 dBi; 3.3 - 4.6 GHz : 7 dBi; 4.7 - 6.0 GHz : 5.5dBi
VSWR: <2.00, max <3.00
Beamwidth: 80° / 80° ± 15°
Polarization: Vertical
Impedance: 50

Wi-Fi

Quantity: 2x
Frequency: 2.4 - 2.5 GHz, 5.0 - 7.2 GHz
Gain: 2.4 - 2.5 GHz: 6dBi; 5 GHz: 7.5dBi; 7 GHz: 7.5dBi
VSWR: < 1.50, max < 2.00
Beamwidth: 360°/25° +/- 5°
Polarization: Vertical
Impedance: 50

Bluetooth

Quantity: 1x
Standards: Bluetooth

GNSS

Quantity: 1x
Standards: GNSS
Polarization: RHCP
