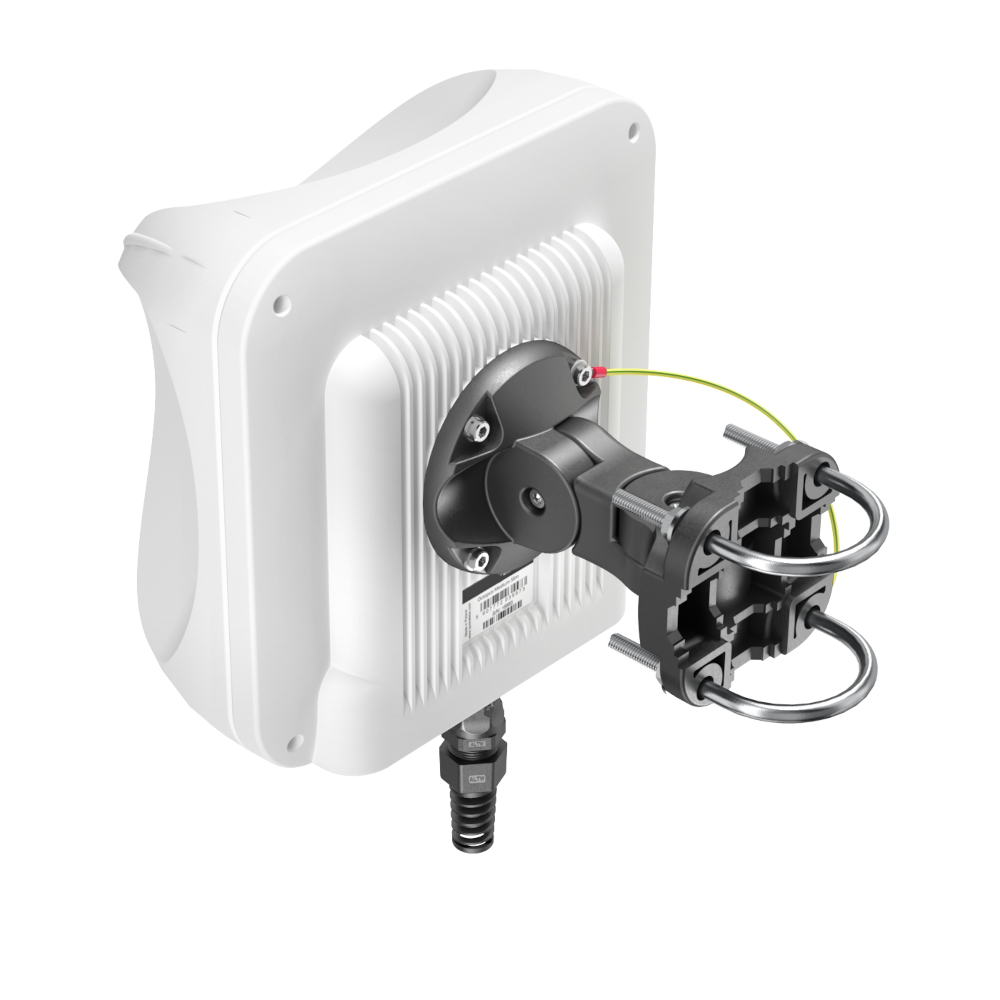

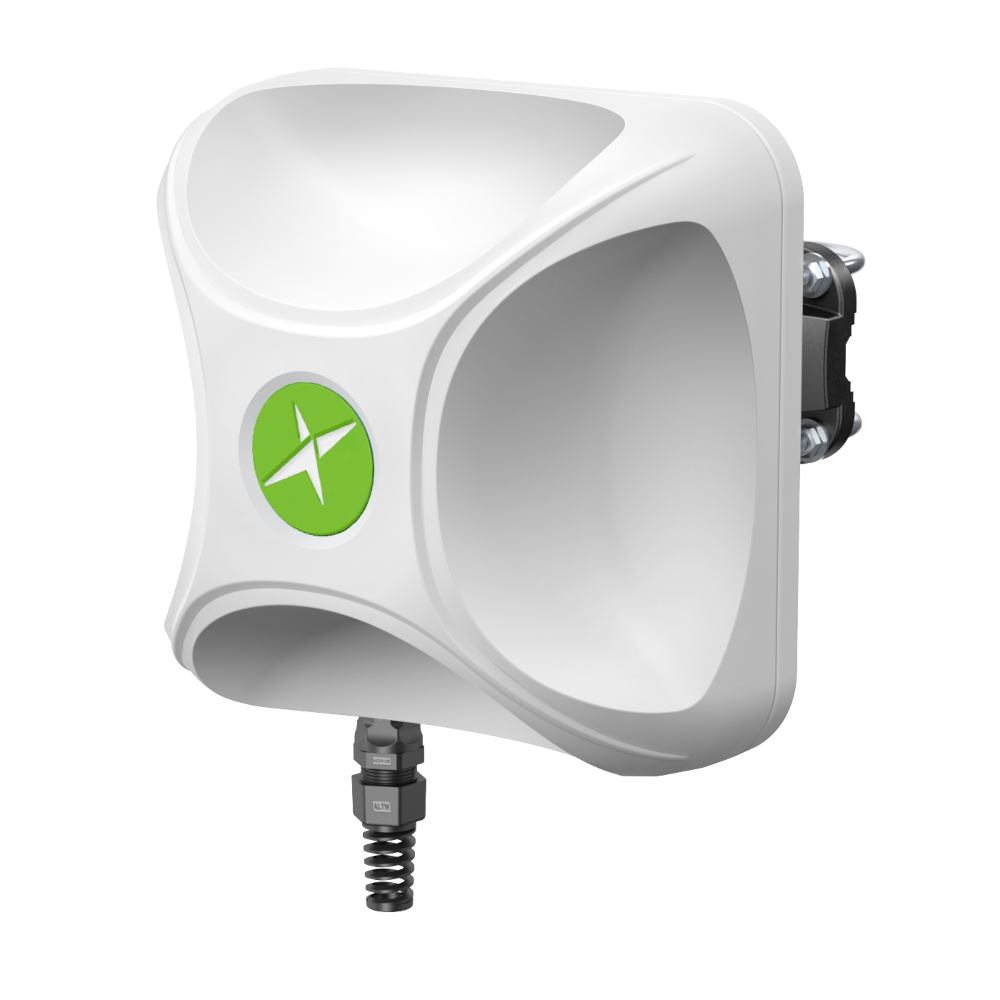

THDR40 Antenna Outdoor Router 5G, Wi-Fi 6E/7, GNSS wall/pole mount directional Thunder for Critical Communications and Public Safety, Transportation & Fleet Management, Industrial and Rugged Environments, Enterprise & IoT Deployments

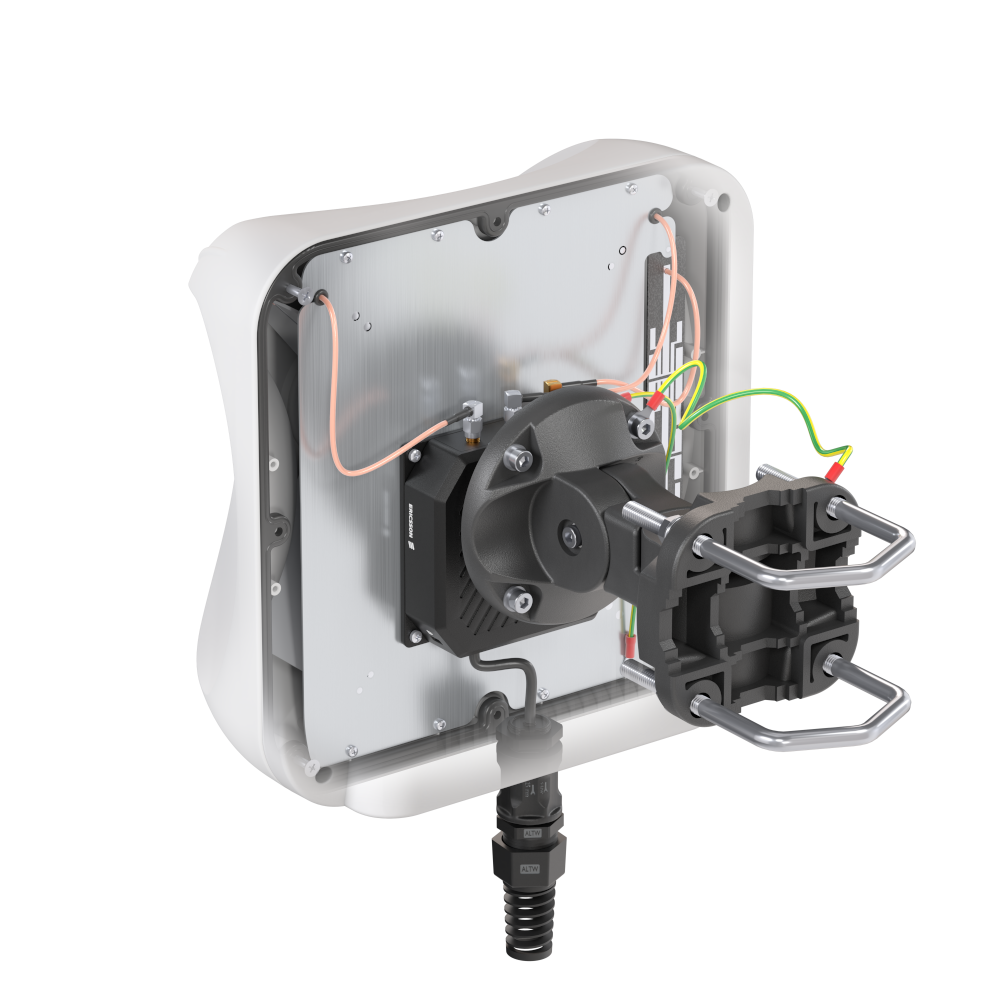

This integrated outdoor directional antenna enclosure is designed for use with Ericsson (Cradlepoint) S400 routers to help improve connectivity in rural/suburban areas and other locations with weak mobile signal. It combines embedded multi-band cellular, Wi-Fi, and GNSS antennas in a single rugged, waterproof housing, creating a clean all-in-one installation concept with an internal cavity for the router.

• Improves weak-signal performance: directional cellular design to help boost link quality where coverage is challenging
• Integrated multi-antenna platform: cellular + Wi-Fi + GNSS in one enclosure for streamlined deployments
• Rugged outdoor housing: suitable for harsh external environments where a waterproof enclosure is required

Typical applications include:

• Critical Communications and Public Safety
• Transportation & Fleet Management
• Industrial and Rugged Environments
• Enterprise & IoT Deployments

Connections

2x 5G/LTE Directional 617-960, 1700-2700, 3300-4600, 4700-6000 MHz
1x Wi-Fi® 6E Omni 2400-2500, 5000-7200 MHz
1x GNSS

Technical Specifications

Operating Temperature: -40°C to 80°C
Cellular Technologies: 5G
Location: External
Mounting: Wall/Pole
Satellite Navigation: GNSS
Short-Range Wireless Standards: Wi-Fi
Type: Combination
IP Rating: IP67
Impedance: 50Ω
VSWR: <3
Frequency Range: 600MHz - 7125MHz
Connector Type: RJ45
Dimensions: 269 x 270 x 177 mm RoHS and Reach Compliant
Weight: 2800g
Materials: ABS, aluminum, PTFE, fiberglass

5G / LTE (Directional)

Frequency: 617 - 960 MHz; 1.7 - 2.7 GHz; 3.3 - 4.6 GHz; 4.7 - 6.0 GHz
Supported LTE Bands: 1, 2, 3, 4, 5, 7, 8, 9, 10, 12, 13, 14, 17, 18, 19, 20, 22, 25, 26, 27, 28, 29, 30, 33, 34, 35, 36, 37, 38, 39, 40, 41, 42, 43, 44, 46, 47, 48, 49, 52, 53, 65, 66, 67, 68, 69, 71, 85, 103, 106
Supported 5G Bands: n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n34, n38, n39, n40, n41, n46, n47, n48, n53, n65, n66, n67, n71, n77, n78, n79, n80, n81, n82, n83, n84, n85, n86, n89, n90, n95, n97, n98, n100, n101, n256
Gain: 617 - 960 MHz : 6 dBi; 1.7 - 2.7 GHz : 7 dBi; 3.3 - 4.6 GHz : 7 dBi; 4.7 - 6.0 GHz : 5.5dBi
VSWR: <2.00, max <3.00
Beamwidth: 80°/80° ±15°
Polarization: X (+-45degrees)
Impedance: 50Ω

Wi-Fi 6E (Omni)

Frequency: 2.4 - 2.5 GHz; 5.0 - 7.2GHz
Gain: 2.4 - 2.5 GHz: 6dBi; 5 GHz: 7.5dBi; 7 GHz: 7.5dBi
VSWR: < 1.50, max < 2.00
Beamwidth: 360°/25°
Polarization: Vertical
Impedance: 50Ω

GNSS

Polarization: RHCP
