THDR60PP Antenna Outdoor Router 5G, GNSS, Wi-Fi 6E/7 directional panel Thunder for Remote and Hybrid Work Environments, Branch and Retail Locations, Industrial and Rugged Environments, High-Bandwidth Applications

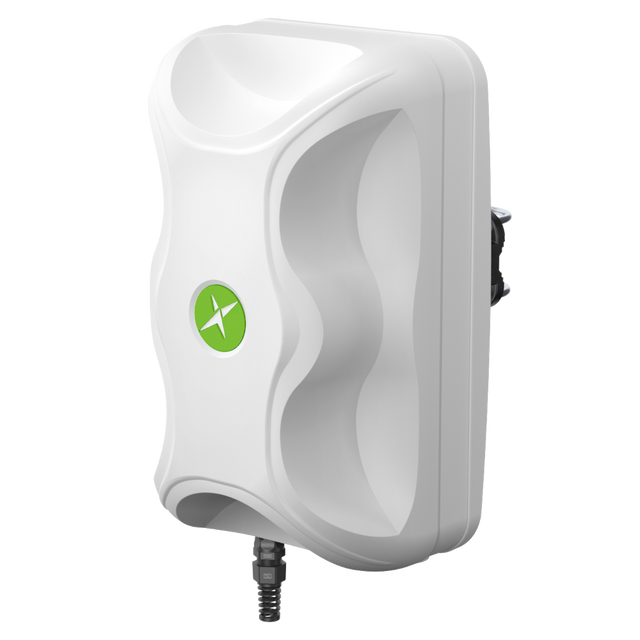

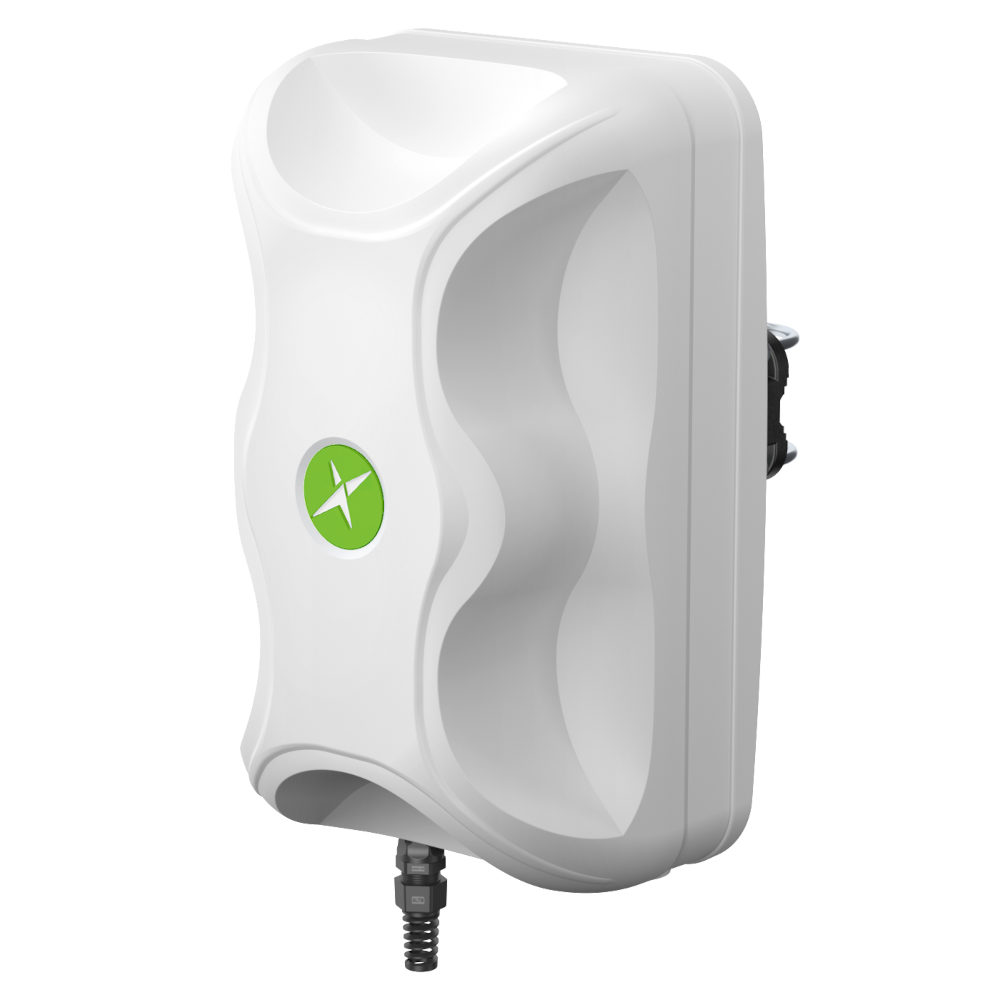

Thunder Integrated Directional Antenna for Semtech XR60 is an all-in-one outdoor antenna enclosure that combines multi-band 5G/LTE, Wi-Fi®, and GNSS antennas with an integrated cavity to install a Semtech XR60 router. Designed for demanding installations, it supports wideband connectivity for both urban and rural deployments.

• All-in-one outdoor solution: integrated 5G/LTE, Wi-Fi®, and GNSS antennas plus router installation space
• Directional cellular performance: wide beam width and strong gain for reliable wideband coverage
• Rugged enclosure: built for harsh external environments with an IP67-rated waterproof housing
• PoE support: includes a passive PoE splitter to combine/split power and data over a single Ethernet cable while maintaining gigabit transfer speeds

Typical applications include: Remote and Hybrid Work Environments; Branch and Retail Locations; Industrial and Rugged Environments; High-Bandwidth Applications; Critical Communications and Public Safety.

Connections

4x 5G/LTE Antennas 600-6000 MHz
2x Wi-Fi® 2.40-2.50 GHz, 5.0-7.125 GHz
1x GNSS

Technical Specifications

Operating Temperature: -40°C to 75°C
Cellular Technologies: 5G
Location: External

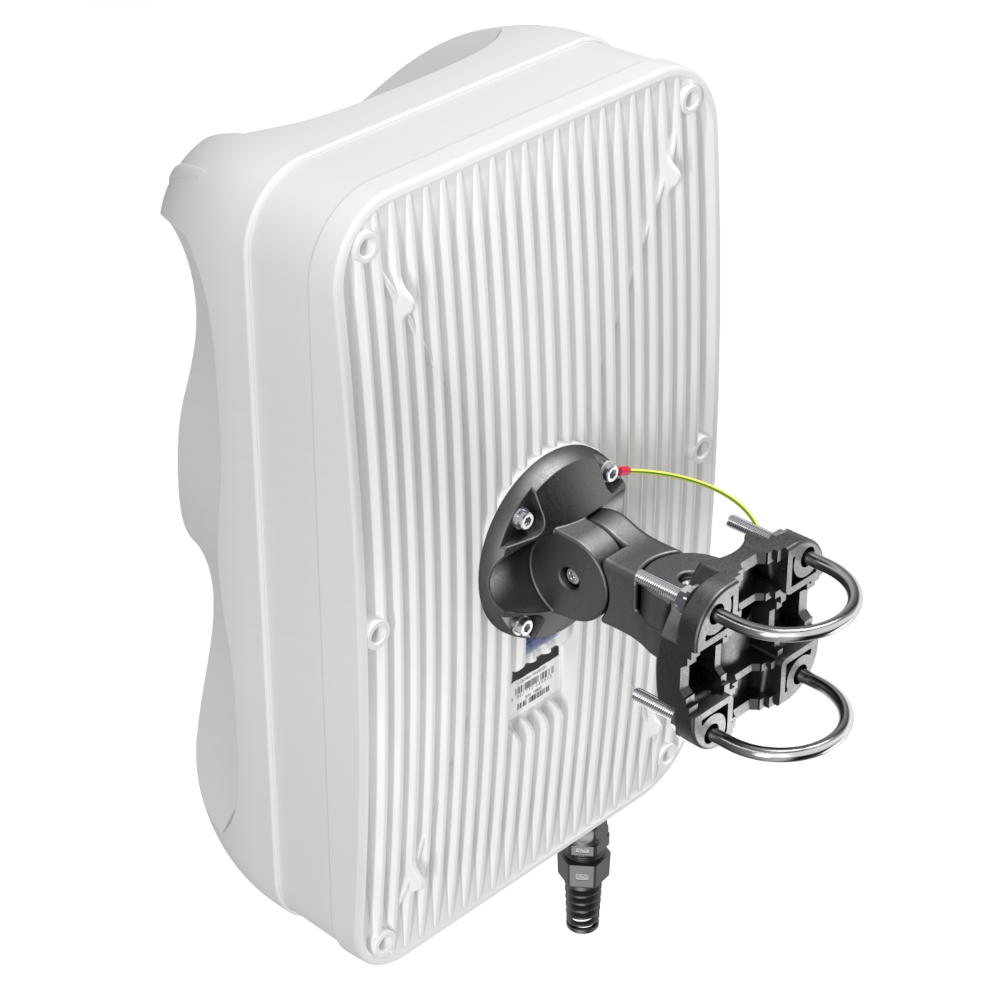

Mounting: Wall/Pole
Satellite Navigation: GNSS
Short-Range Wireless Standards: Wi-Fi, ISM
Type: Combination
IP Rating: IP67
Impedance: 50 Ω
VSWR: <3
Dimensions: 480 x 296 x 175 mm RoHS and Reach Compliant
Weight: 1800 g
Frequency Range: 600MHz - 7125MHz

5G / LTE (Directional MIMO)

Frequency: 617-960, 1700-2700, 3300-4600, 4700-6000 MHz
Gain: 617-960 MHz: 6 dBi; 1700-2700 MHz: 7 dBi; 3300-4600 MHz: 7 dBi; 4700-6000 MHz: 5.5 dBi
Supported LTE Bands: 1, 2, 3, 4, 5, 7, 8, 9, 10, 12, 13, 14, 17, 18, 19, 20, 22, 25, 26, 27, 28, 29, 30, 33, 34, 35, 36, 37, 38, 39, 40, 41, 42, 43, 44, 46, 47, 48, 49, 52, 53, 65, 66, 67, 68, 69, 71, 85, 103, 106
Supported 5G Bands: n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n34, n38, n39, n40, n41, n46, n47, n48, n53, n65, n66, n67, n71, n77, n78, n80, n81, n82, n83, n84, n85, n86, n89, n90, n95, n97, n98, n100, n101, n256
Beamwidth: 80°/80° ±15°
Polarization: X [+-45 degrees]
Connector Type: 4x SMA
Cable Type: RG316

Wi-Fi (Omni)

Frequency: 2400-2500, 5000-7125 MHz
Gain: 2400-2500 MHz: 6 dBi; 5000-7125 MHz: 7.5 dBi
VSWR: <1.70, max <2.00
Beamwidth: 360°/25° ±5°
Polarization: Vertical
Impedance: 50 Ω
Connector Type: 2x RPSMA
Cable Type: RG316

GNSS (Active)

Polarization: RHCP
