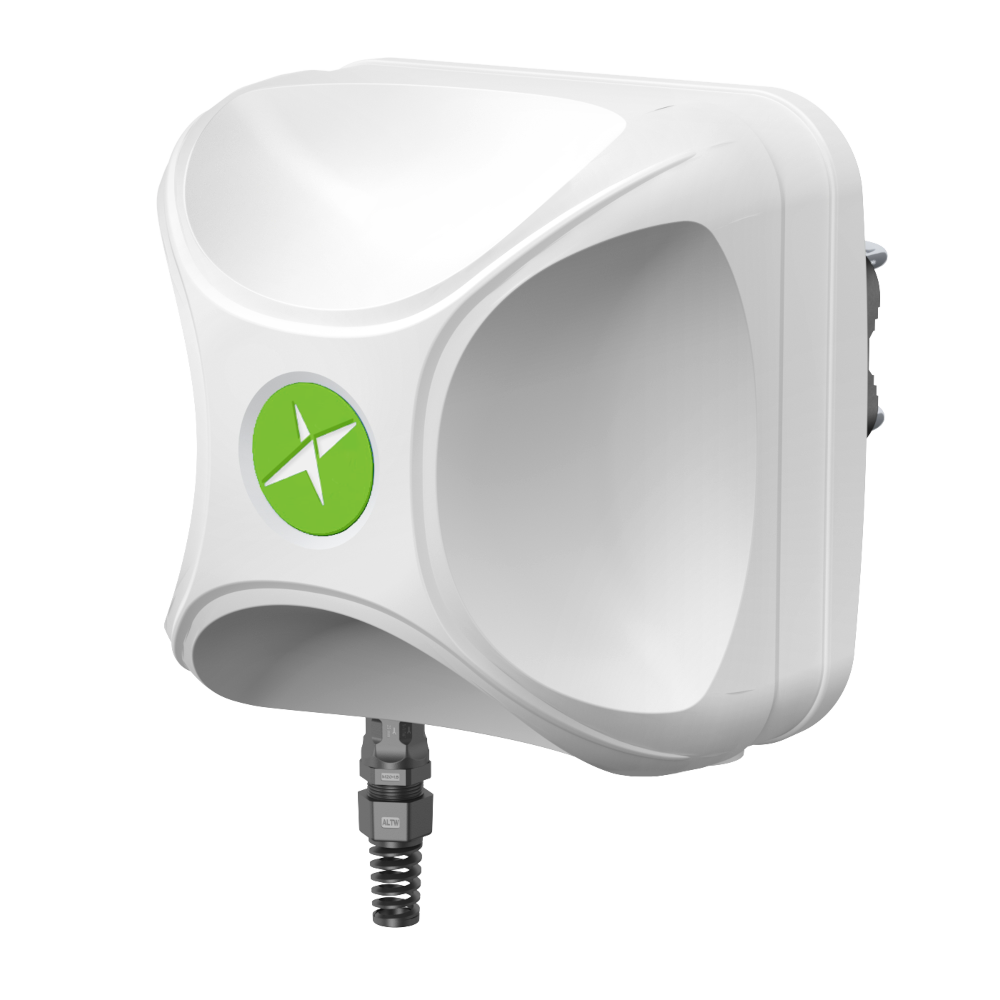

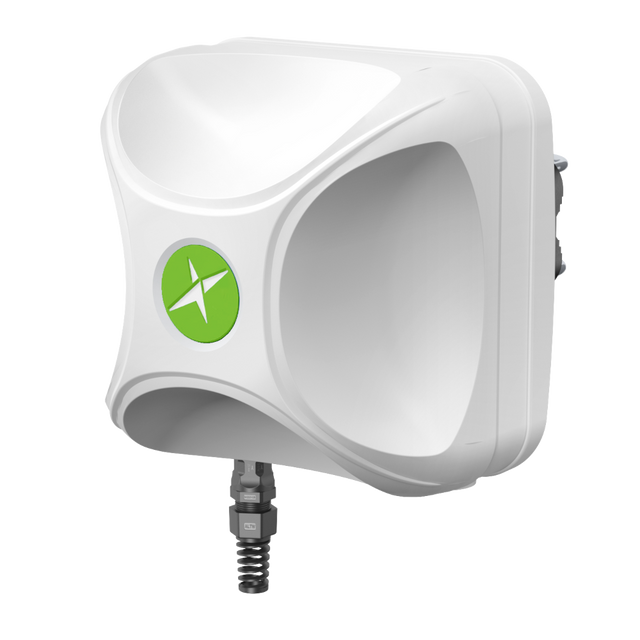

THDR92PP Antenna Outdoor External 5G, Wi-Fi 6E/7, GNSS, ISM directional panel wall / pole mount Thunder IP67 for Critical Communications and Public Safety, Transportation & Fleet Management, Industrial and Rugged Environments, Enterprise & IoT Deployments

Thunder Integrated Directional is an all-in-one outdoor panel antenna enclosure designed for Ericsson (Cradlepoint) R920 routers, combining directional cellular performance with integrated Wi‑Fi, Bluetooth, and GNSS antennas in a single rugged housing. It is intended to improve connectivity in rural/suburban areas and other locations where mobile signal is weak.

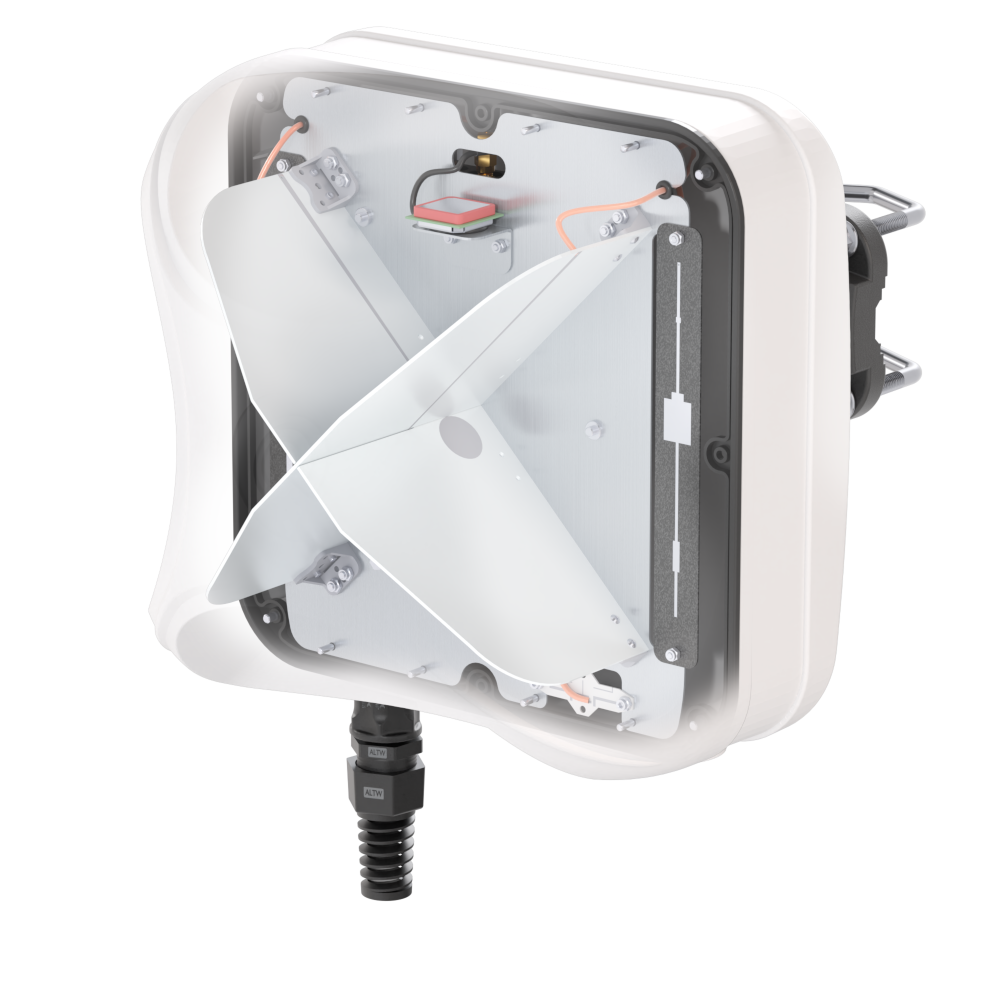

• All-in-one integrated solution: embedded antennas plus a cavity to install the Ericsson R920 router.
• Outdoor-ready design: built for harsh external environments with a waterproof enclosure.
• PoE support accessory included: passive PoE splitter to carry power and data over one Ethernet cable while helping protect the LAN port from electrical faults.

Typical applications include: Critical Communications and Public Safety, Transportation & Fleet Management, Industrial and Rugged Environments, Enterprise & IoT Deployments.

Connections

2x 5G/LTE (Directional) 617-960 MHz, 1.7-2.7 GHz, 3.3-4.6 GHz, 4.7-6.0 GHz
2x Wi‑Fi 2.4-2.5 GHz, 5.0-7.2 GHz
1x GNSS
1x Bluetooth

Technical Specifications

Operating Temperature: From -40°C to 80°C
Cellular Technologies: 5G
Location: External

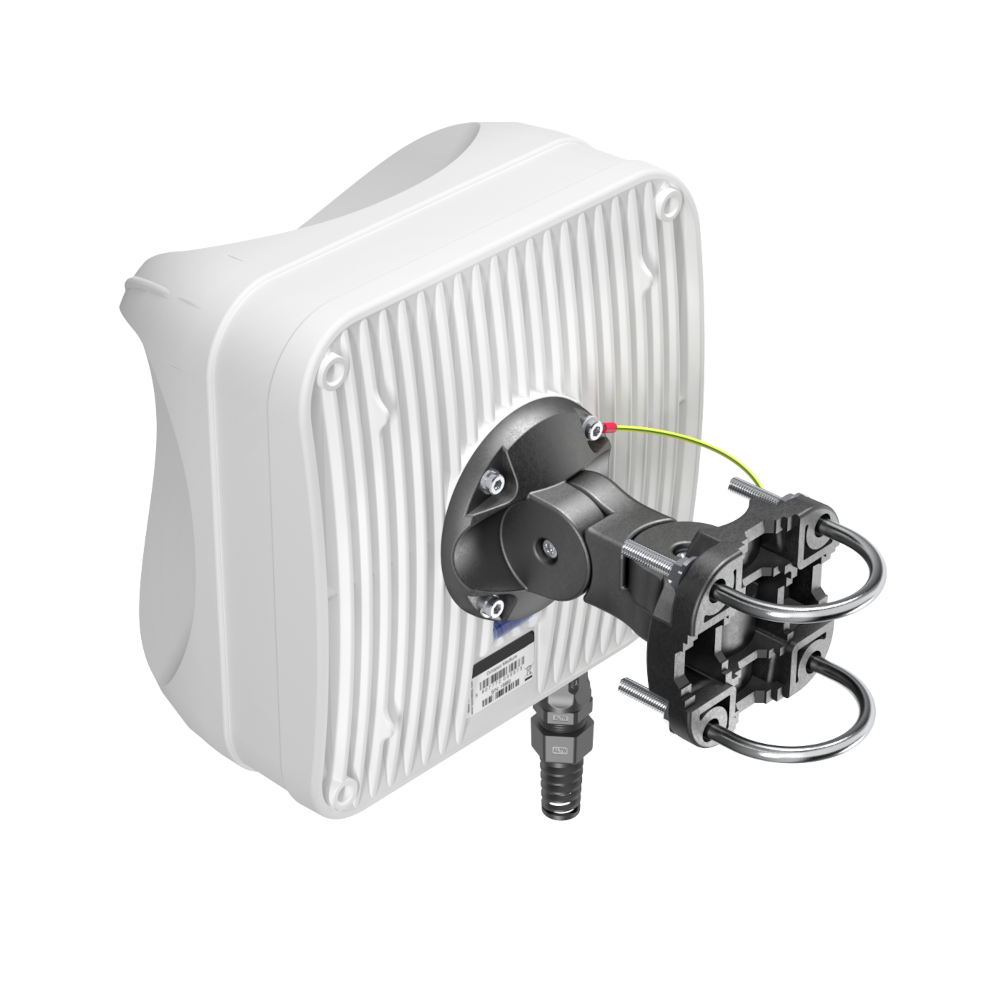

Mounting: Wall/Pole
Satellite Navigation: GNSS
Short-Range Wireless Standards: Wi-Fi, Bluetooth, ISM
Type: Combination
IP Rating: IP67
Frequency Range: 600MHz - 7125MHz
Impedance: 50 Ω
VSWR: <2
Dimensions: 269 x 270 x 177 mm RoHS and Reach Compliant
Weight: 2800g

5G / LTE (Directional)

Frequency: 617 - 960 MHz; 1.7 - 2.7 GHz; 3.3 - 4.6 GHz; 4.7 - 6.0 GHz
Supported LTE Bands: 1, 2, 3, 4, 5, 7, 8, 9, 10, 12, 13, 14, 17, 18, 19, 20, 22, 25, 26, 27, 28, 29, 30, 33, 34, 35, 36, 37, 38, 39, 40, 41, 42, 43, 44, 46, 47, 48, 49, 52, 53, 65, 66, 67, 68, 69, 71, 85, 103, 106
Supported 5G Bands: n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n34, n38, n39, n40, n41, n46, n47, n48, n53, n65, n66, n67, n71, n77, n78, n79, n80, n81, n82, n83, n84, n85, n86, n89, n90, n95, n97, n98, n100, n101, n256
Gain: 617 - 960 MHz : 6 dBi; 1.7 - 2.7 GHz : 7 dBi; 3.3 - 4.6 GHz : 7 dBi; 4.7 - 6.0 GHz : 5.5dBi
VSWR: <2.00, max <3.00
Beamwidth: 80°/80° ±15°
Polarization: X (+-45degrees)
Impedance: 50 Ω
Connector Type: 2x SMA
Cable Type: RG316

Wi-Fi (Omnidirectional)

Frequency: 2.4 - 2.5 GHz; 5.0 - 7.2 GHz
Gain: 2.4 - 2.5 GHz: 6dBi; 5 GHz: 7.5dBi; 7 GHz: 7.5dBi
VSWR: < 1.50, max < 2.00
Beamwidth: 360°/25°
Polarization: Vertical
Impedance: 50 Ω
Connector Type: 2x RPSMA
Cable Type: RG316

GNSS

Polarization: RHCP

Bluetooth

Standards: Bluetooth
