Description

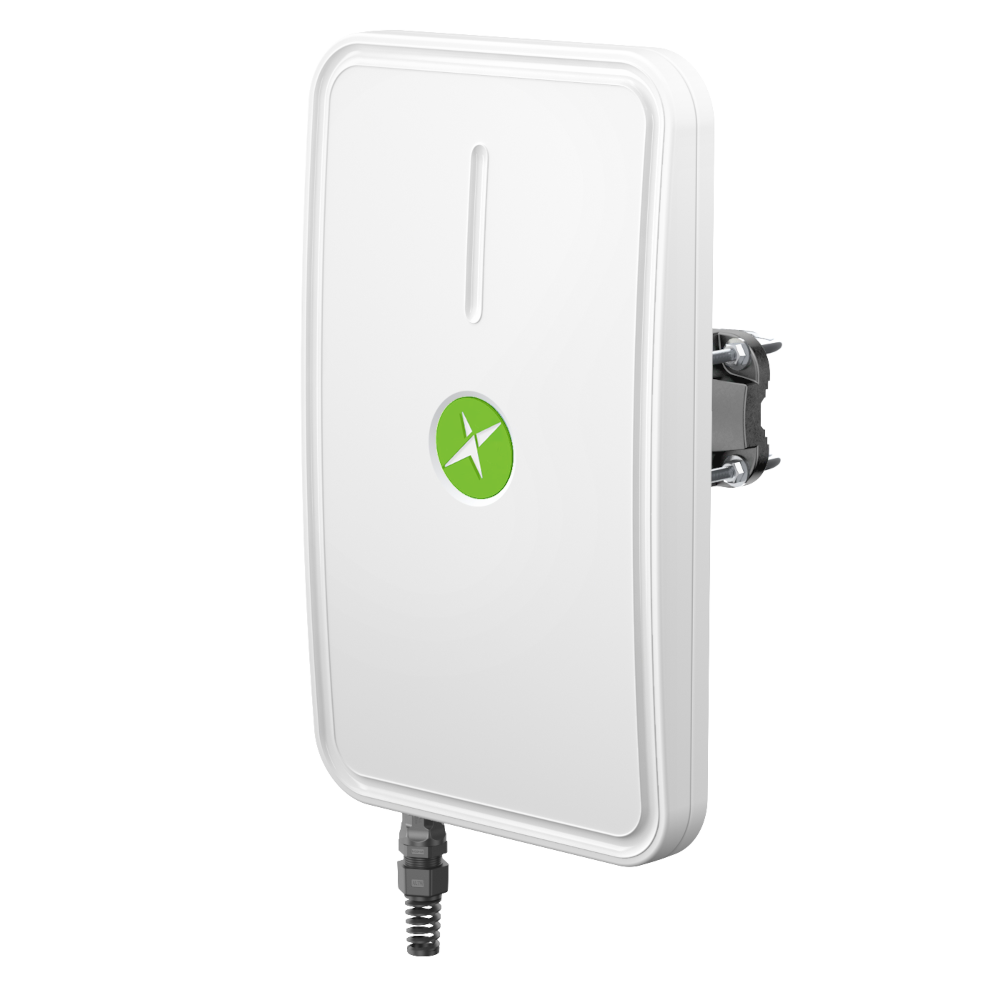

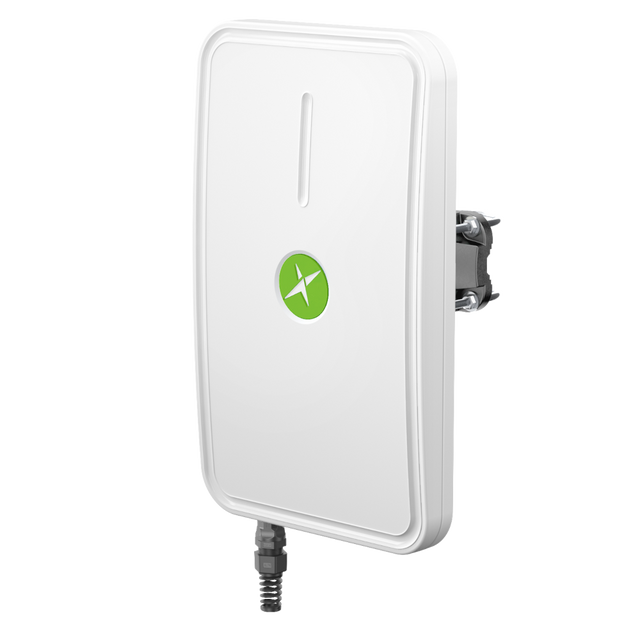

THDRLR8 is an integrated directional 868 MHz antenna system designed to boost LoRa device coverage with focused, long-distance performance in challenging outdoor environments. Its directional design helps extend range and reduce interference compared with omnidirectional antennas, while the robust enclosure is built for harsh weather exposure.

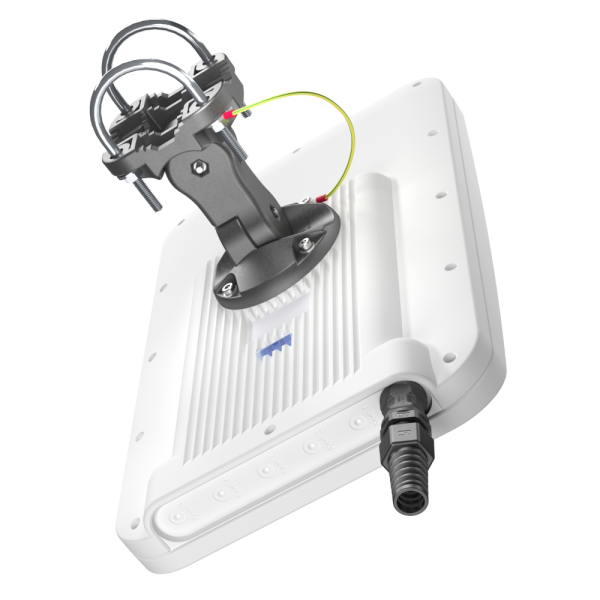

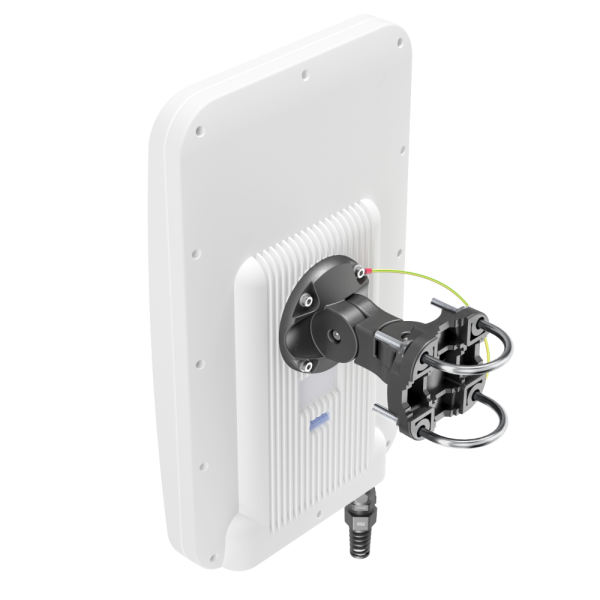

The enclosure includes a dedicated cavity to house a LoRa device, helping create a compact, all-in-one outdoor installation. An advanced mounting system supports wall or pole mounting and allows alignment adjustment (up to +/-35° in two planes) to optimize link performance.
Typical applications include:
- Smart Cities
- Smart Public Transit
- Infrastructure Management
- Enterprise & IoT Deployments
Connector & Cable
- Connector Type: RP-SMA
Technical Specifications
Operating Temperature: -40°C to 75°C
Location: External
LPWAN & IoT Communication: LoRa
Mounting: Wall/Pole
Short-Range Wireless Standards: ISM
Type: Single
IP Rating: IP67
Dimensions: 290 x 480 x 76 mm RoHS and Reach Compliant
Weight: 2.0 kg
ISM / LoRa (868 MHz)
Frequency: 868 MHz (EU868, IN865, RU864)
Gain (Max): 12.5 dBi
VSWR: <1.80 (Max <2.00)
Impedance: 50Ω
Polarization: Vertical
Front to Back: >24 dB
Beamwidth: 900 / 300 ±300
Connector Type: RP-SMA
