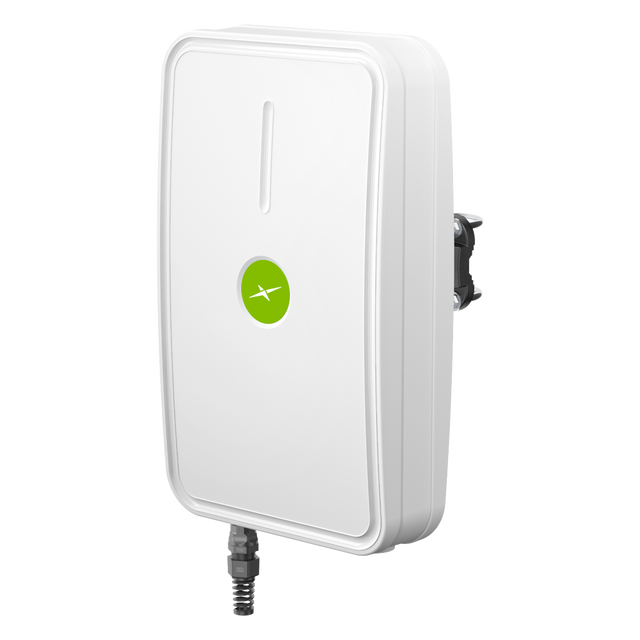

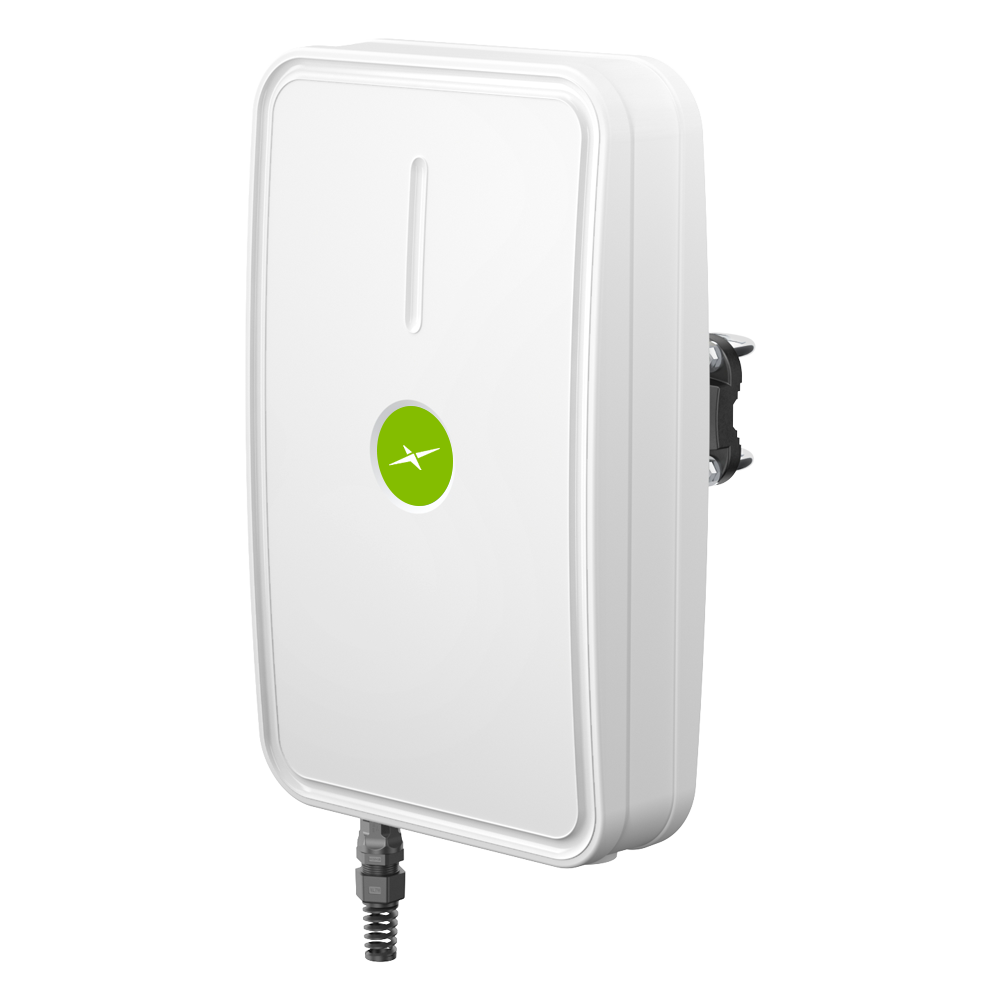

THDRLR89 Antenna Outdoor External High-Gain ISM wall/pole mount Thunder RP-SMA IP67 for Smart Cities, Smart Public Transit, Infrastructure Management, Enterprise & IoT Deployments

THDRLR89 is an integrated, high-gain directional antenna system designed for LoRa devices operating on 868 MHz and 915 MHz regional bands. Its directional performance helps extend communication distance and reduce interference versus omnidirectional antennas, making it well-suited to demanding outdoor deployments.

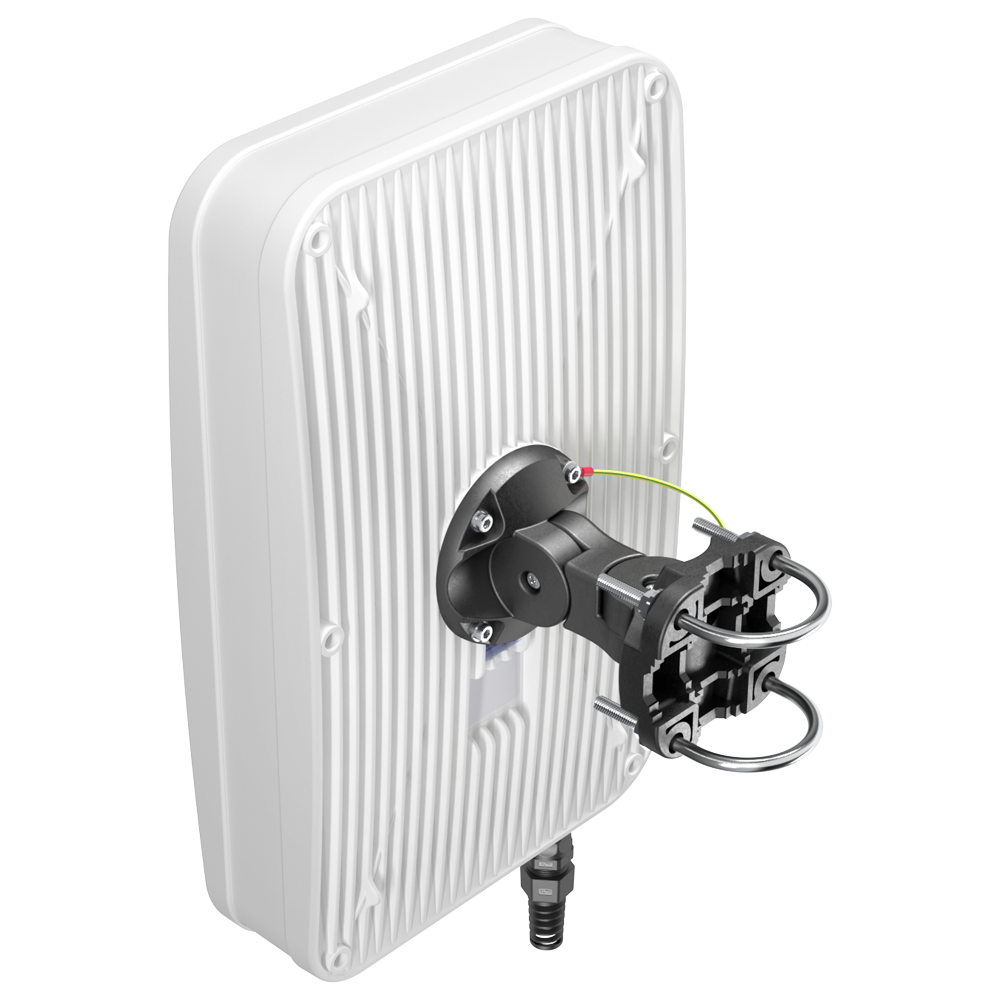

The enclosure includes internal space to install compatible LoRaWAN/IoT gateway electronics inside the housing, and the adjustable mounting system supports alignment adjustment up to +/-35 degrees in two planes.

• Directional, high-gain performance for extended LoRa network reach
• Outdoor-ready enclosure for challenging environments

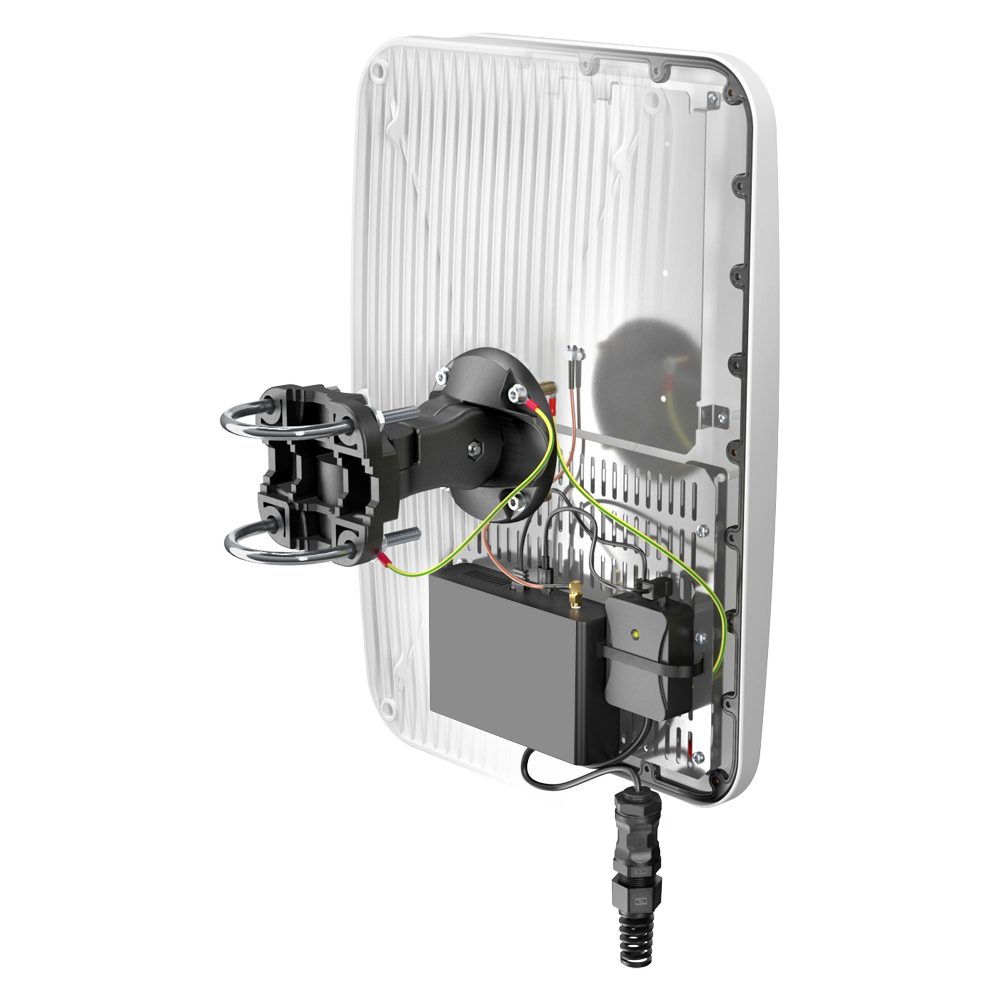

• Internal cavity to house compatible gateway electronics
• Adjustable mounting for easier aiming and installation

Typical applications include: Smart Cities, Smart Public Transit, Infrastructure Management, Enterprise & IoT Deployments

Connections

1x ISM/LoRa 868 - 915 MHz

Connector & Cable

• Connector Type: RP-SMA

Technical Specifications

Operating Temperature: -40°C to 75°C
Location: External
LPWAN & IoT Communication: LoRaWAN
Mounting: Wall Mount, Pole Mount
Short-Range Wireless Standards: ISM
Type: Single
IP Rating: IP67
Dimensions: 292 x 486 x 110 mm RoHS and Reach Compliant
Weight: 1500g

ISM/LoRa (Directional)

Frequency: 840 - 940 MHz [EU868, IN865, RU864, US915, AU915, AS923, KR920]
Gain (Max): 12.5 dBi
VSWR: <1.80, MAX <2.00
Beamwidth: 90° / 30° ±30°
Polarization: Vertical
Impedance: 50
Front to Back: >17 dB
Connector Type: RP-SMA
