Description

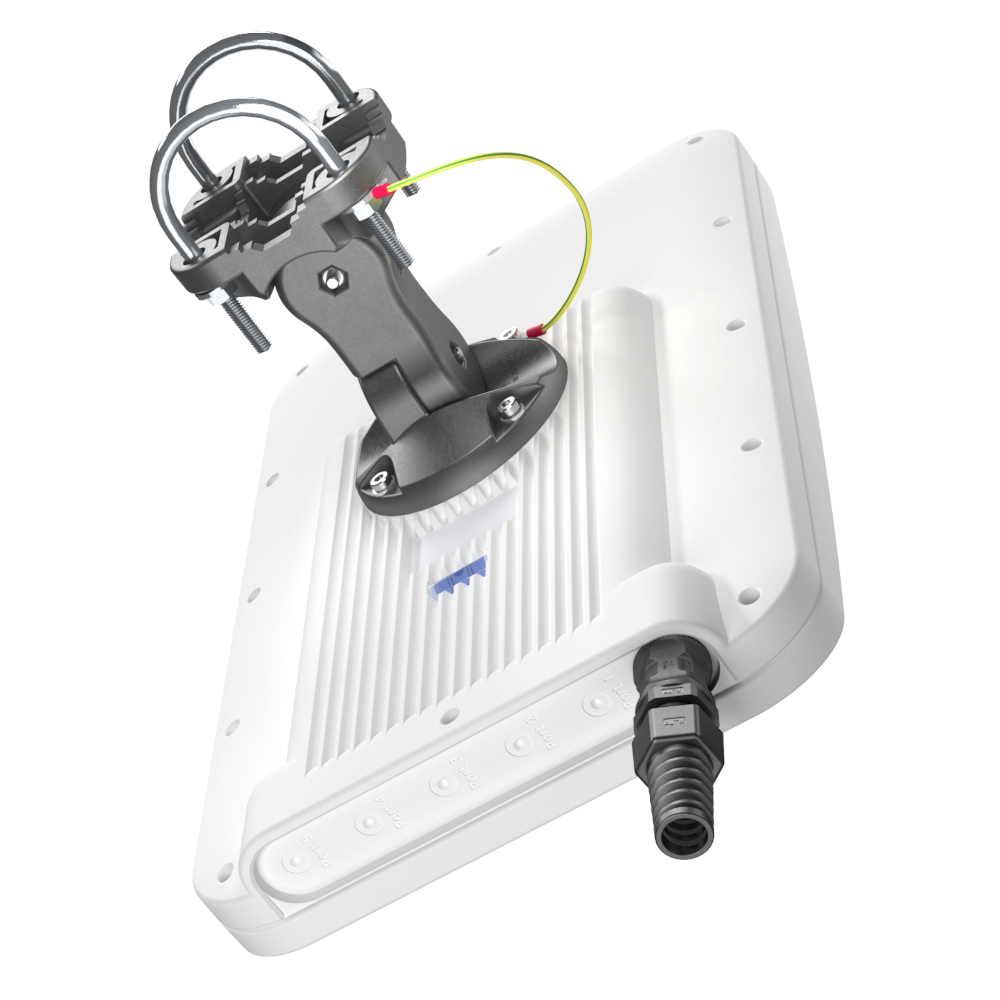

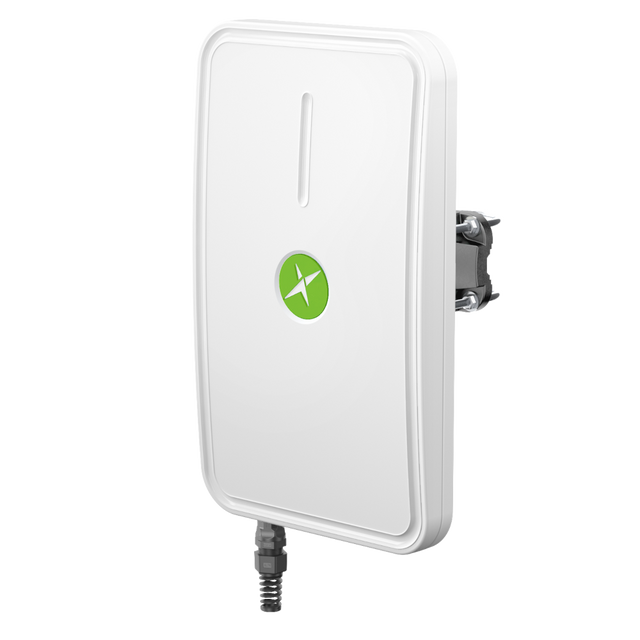

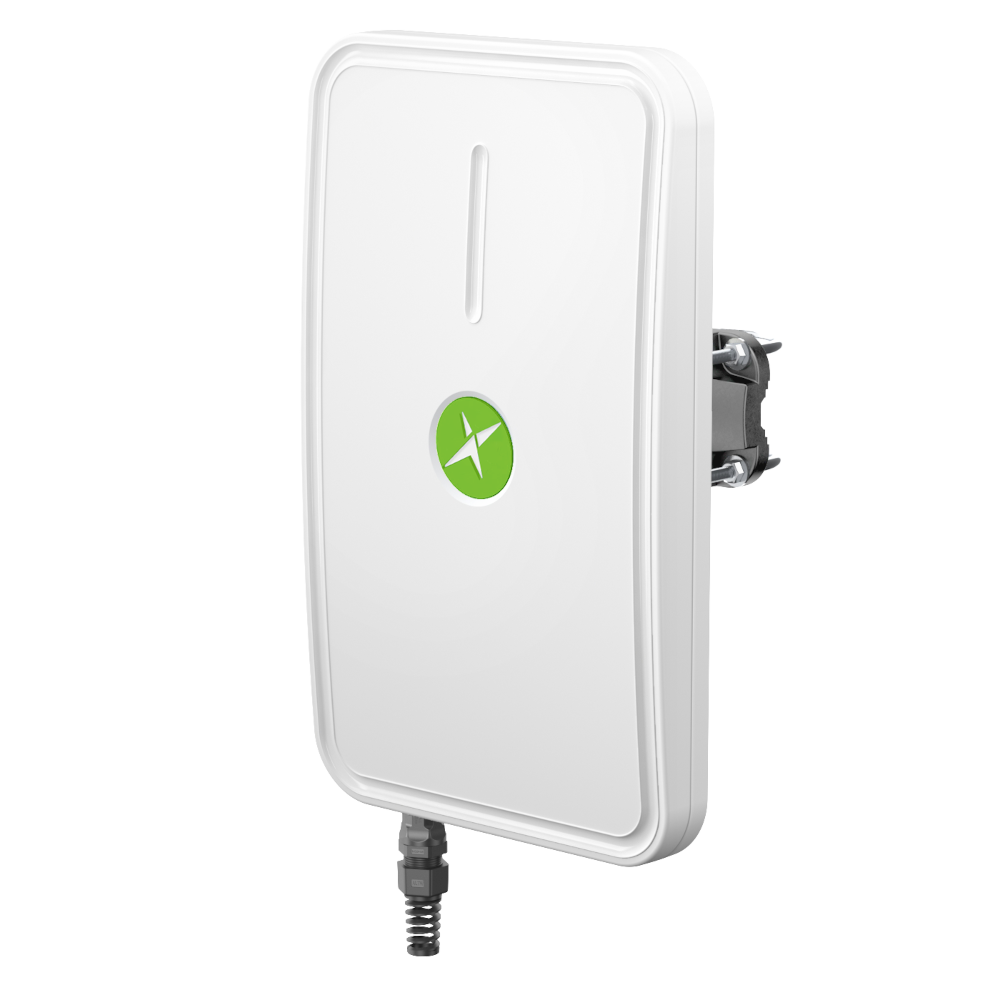

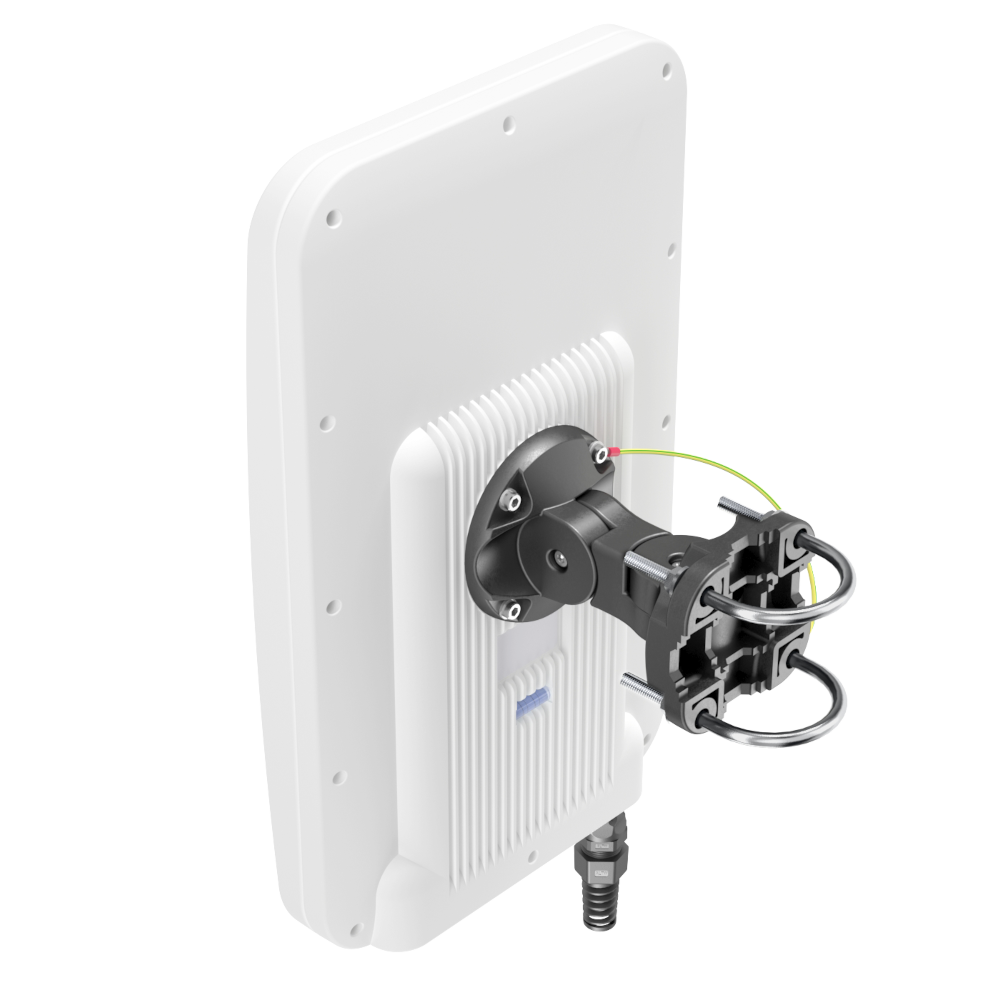

Thunder Series THOR19PP is an all-in-one outdoor antenna enclosure designed to integrate an Ericsson (Cradlepoint) R1900 router with embedded omnidirectional antennas for cellular, Wi-Fi, Bluetooth, and GNSS. It is built for harsh environments where a robust, waterproof external solution is required and suits both mobile and fixed installations.
Typical use cases include industrial and rugged deployments, public safety/critical communications, transportation and fleet management, and enterprise/IoT deployments. The included passive PoE splitter allows data and power to be delivered over a single Ethernet cable while maintaining gigabit transfer speeds and protecting the LAN port from damage caused by over-voltage, short circuit, or improper connection.
Connections
4x 5G/LTE Antennas
2x Wi-Fi® Antennas
1x Bluetooth® Antenna
1x GNSS Antenna
Technical Specifications
Operating Temperature: -40°C to 75°C
Antenna Technologies: MIMO
Cellular Technologies: 5G
Location: External
Mounting: Wall/Pole
Satellite Navigation: GNSS
Short-Range Wireless Standards: Wi-Fi, Bluetooth, ISM
Type: Combination
IP Rating: IP67
Frequency Range: 600MHz - 7125MHz
Impedance: 50
VSWR: <2
Gain (Max): 7.5
Dimensions: 290 x 480 x 76 mm RoHS and Reach Compliant
Weight: 1800 g
Connector Type: RJ45
5G/LTE (Omnidirectional MIMO)
Frequency: 617 - 960 MHz; 1700 - 2700 MHz; 3300 - 4700 MHz; 5200 - 6000 MHz
Supported LTE Bands: 1, 2, 3, 4, 5, 7, 8, 9, 10, 12, 13, 14, 17, 18, 19, 20, 22, 25, 26, 27, 28, 29, 30, 33, 34, 35, 36, 37, 38, 39, 40, 41, 42, 43, 44, 47, 48, 49, 52, 53, 65, 66, 67, 68, 69, 71, 85, 103, 106
Supported 5G Bands: n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n34, n38, n39, n40, n41, n47, n48, n53, n65, n66, n67, n71, n77, n78, n80, n81, n82, n83, n84, n85, n86, n89, n90, n95, n97, n98, n100, n101, n256
Gain: 617 - 960 MHz : 3 dBi; 1.7 - 2.2 GHz : 4 dBi; 3.3 - 4.7 GHz : 4.5 dBi; 5.2 - 6.0 GHz : 2.5dBi
VSWR: <1.80, max <2.00
Beamwidth: 360°/35° ±5°
Polarization: Vertical
Impedance: 50
Wi-Fi
Frequency: 2.4 - 2.5 GHz; 5.0 - 7.2 GHz
Gain: 2.4 - 2.5 GHz: 6dBi; 5 GHz: 7.5dBi; 7 GHz: 7.5dBi
VSWR: < 1.50, max < 2.00
Beamwidth: 360°/25° +/- 5°
Polarization: Vertical
Bluetooth
Polarization: Vertical
GNSS
Polarization: RHCP
