Description

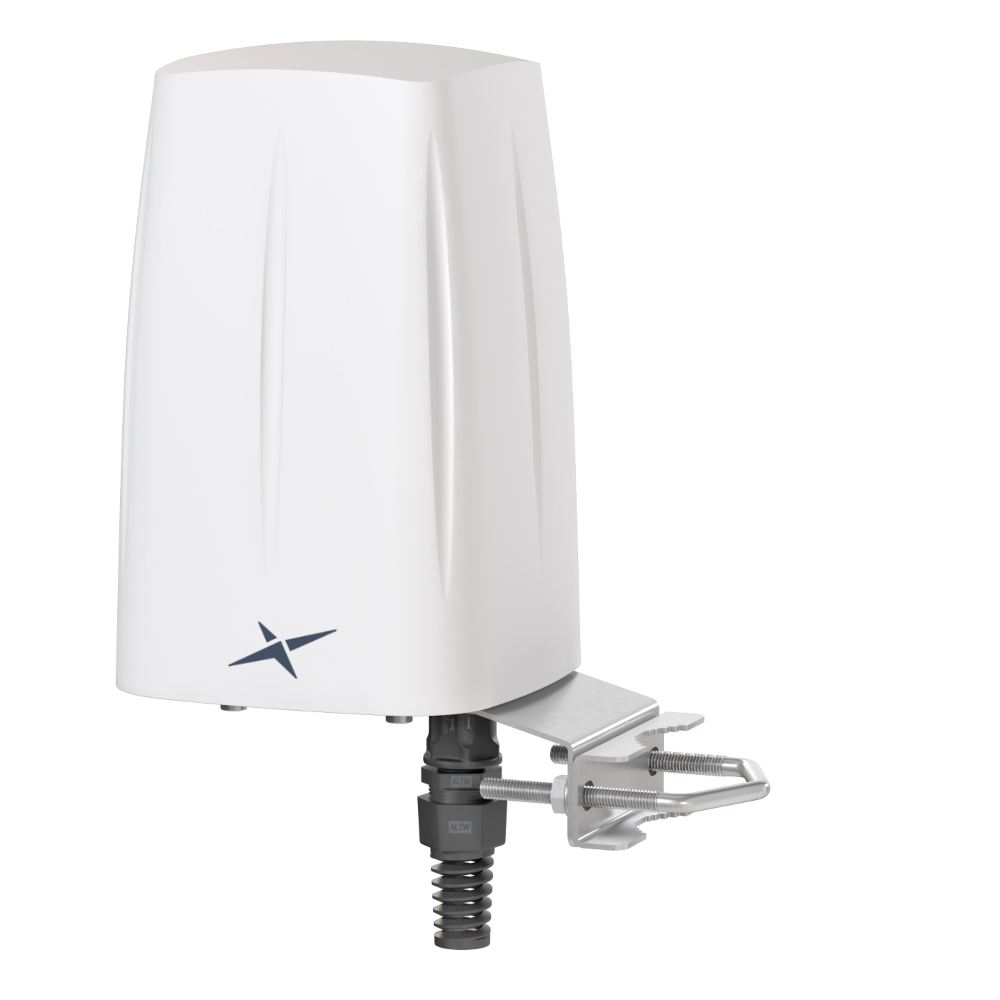

This all-in-one outdoor omnidirectional antenna enclosure is designed to integrate multi-band 5G/LTE and Wi-Fi connectivity and provide space to install an Ericsson (Cradlepoint) S400 router. Built for harsh environments, it supports reliable outdoor connectivity for mobile and fixed installations where a rugged, waterproof solution is required.

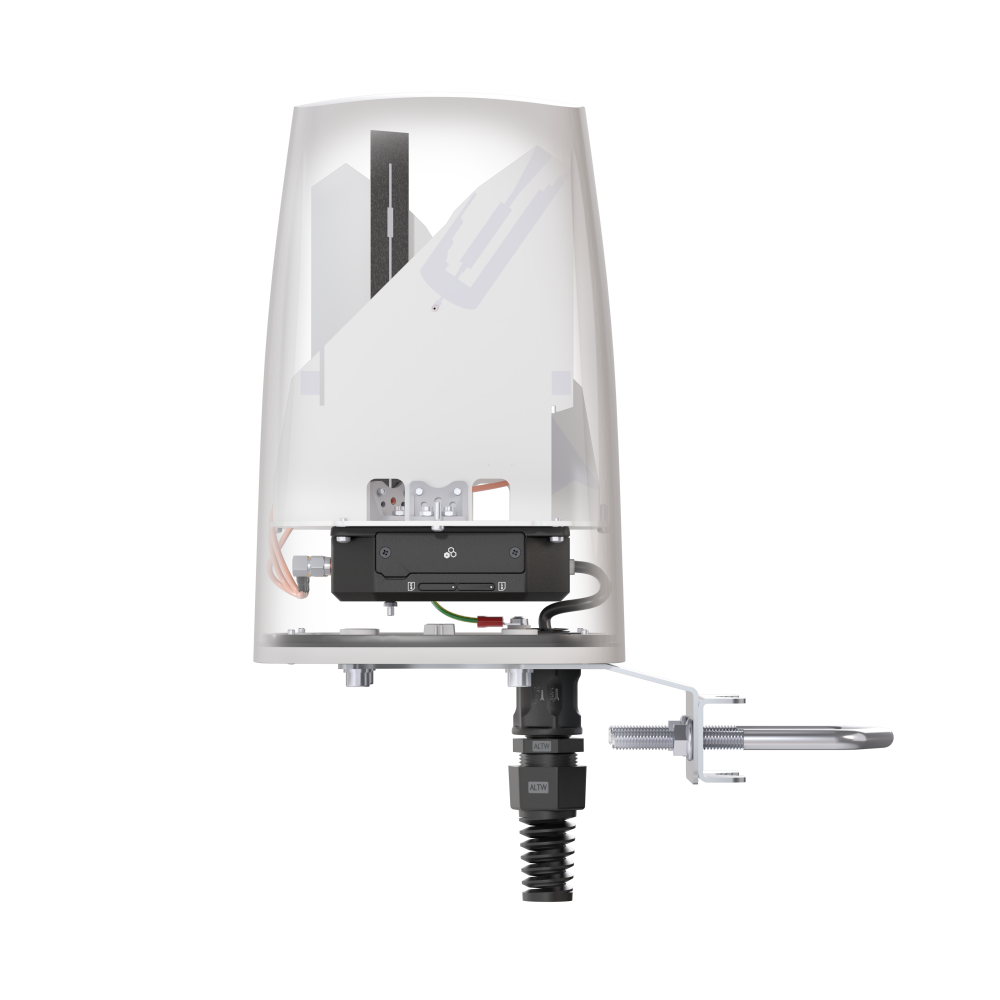

- All-in-one integration: Combines multi-band 5G/LTE and Wi-Fi antennas with an integrated router cavity for the Ericsson (Cradlepoint) S400.
- Rugged outdoor enclosure: Fully weatherproof design suited to demanding environments.
- Versatile deployments: Ideal for moving and high-density environments such as transportation use cases and city centers.
Typical applications include: Transportation, yachting, boats, camping, critical communications and public safety, transportation & fleet management, industrial and rugged environments, enterprise & IoT deployments.
Connections
1x GNSS
1x Wi-Fi®
2x 5G/LTE
Installation / Environmental
ENCLOSURE RECOMMENDED
0,5 - 0,7 Nm
TIGHTENING TORQUE
40-66 mm
MAST DIAMETER
1.57-2.60 inch
Technical Specifications
Operating Temperature: From -40°C to 75°C
Cellular Technologies: 5G
Location: External

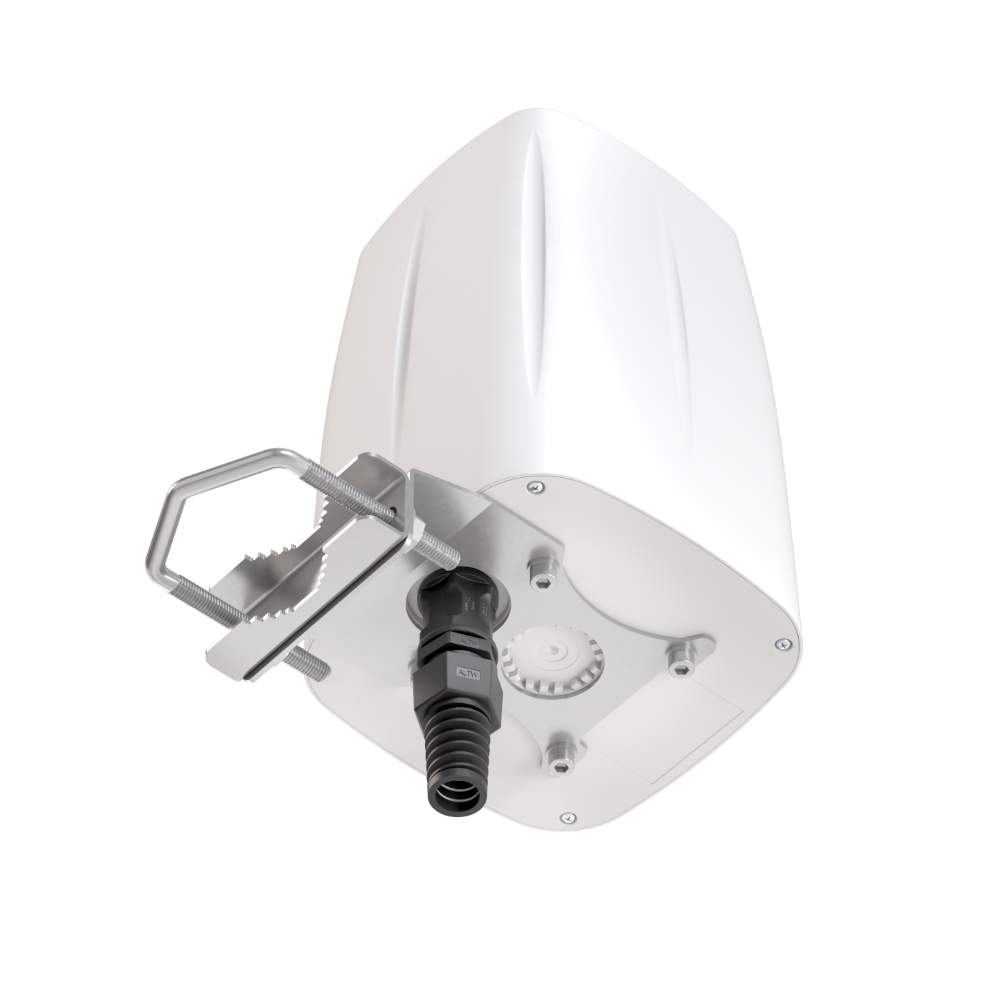

Mounting: Wall/Pole
Satellite Navigation: GNSS
Short-Range Wireless Standards: Wi-Fi
Type: Combination
IP Rating: IP67
Frequency Range: 600MHz - 7125MHz
Impedance: 50
VSWR: <2.5
Gain (Max): 7.5
Dimensions: 160 x 160 x 240 mm RoHS and Reach Compliant
Weight: 1500 g
Connector Type: RJ45
5G/LTE (Omnidirectional)
Frequency: 617 - 960 MHz; 1.7 - 2.7 GHz; 3.3 - 4.7 GHz; 5.2 - 6.0 GHz
Supported LTE Bands: 1, 2, 3, 4, 5, 7, 8, 9, 10, 12, 13, 14, 17, 18, 19, 20, 22, 25, 26, 27, 28, 29, 30, 33, 34, 35, 36, 37, 38, 39, 40, 41, 42, 43, 44, 48, 49, 52, 53, 65, 66, 67, 68, 69, 71, 85, 103, 106
Supported 5G Bands: n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n34, n38, n39, n40, n41, n48, n53, n65, n66, n67, n71, n77, n78, n80, n81, n82, n83, n84, n85, n86, n89, n90, n95, n97, n98, n100, n101, n256
Gain: 617 - 960 MHz : 2 dBi; 1.7 - 2.7 GHz : 4 dBi; 3.3 - 4.7 GHz : 4.5 dBi; 5.2 - 6.0 GHz : 2 dBi
VSWR: <2.00, max <2.50
Beamwidth: 360°/25° ±5°
Polarization: Vertical
Impedance: 50
Connector Type: 2x SMA
Cable Type: RG316
Wi-Fi (Omnidirectional)
Frequency: 2.4 - 2.5 GHz; 5.0 - 7.2 GHz
Gain: 2.4 - 2.5 GHz : 6 dBi; 5.0 - 7.2 GHz : 7.5 dBi
VSWR: VSWR <1.50, max <2.00
Beamwidth: 360°/25° ±5°
Polarization: Vertical
Impedance: 50
Connector Type: 1x RPSMA
Cable Type: RG316
GNSS
Polarization: RHCP
