THOR50 Antenna Outdoor External Router 5G, 4G/LTE wall/pole mount Thunder IP67 for Remote and Hybrid Work Environments, Branch and Retail Locations, Industrial and Rugged Environments, High-Bandwidth Applications

This integrated, all-in-one omnidirectional antenna enclosure is designed to house a DIGI EX50 router and deliver wideband 5G/LTE coverage in a single outdoor-ready solution. It is built for harsh environments where a rugged, waterproof enclosure is required and supports mobile or fixed installations across a wide range of use cases.

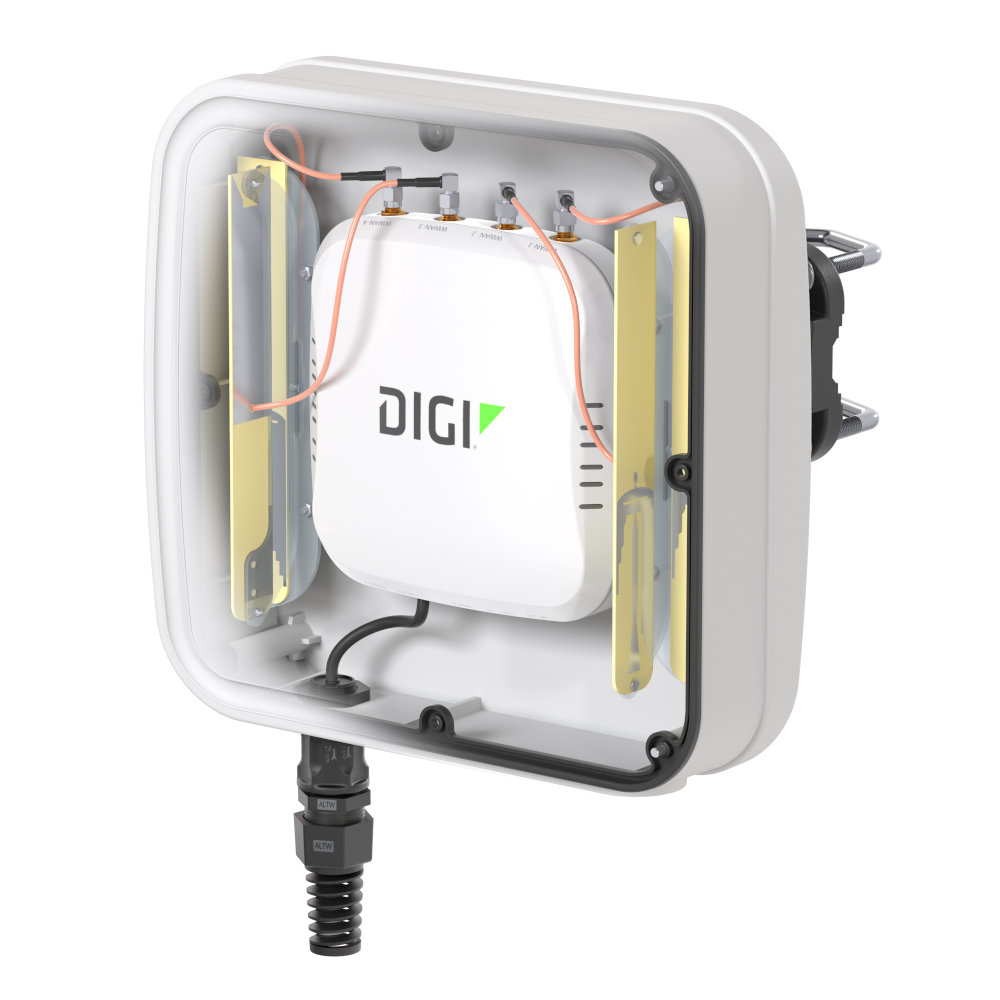

• Integrated router enclosure: cavity to install a DIGI EX50 router
• Wideband cellular coverage: multi-band operation across 600–6000 MHz
• Outdoor durability: IP67-rated waterproof enclosure for all-weather installations
• Omnidirectional performance: designed for consistent 360° coverage

Typical applications include:

• Remote and Hybrid Work Environments
• Branch and Retail Locations
• Industrial and Rugged Environments
• High-Bandwidth Applications
• Critical Communications and Public Safety

Connections

4x 5G/LTE Antenna 600-6000 MHz

Technical Specifications

Operating Temperature: -40°C to 75°C
Cellular Technologies: 5G
Location: External

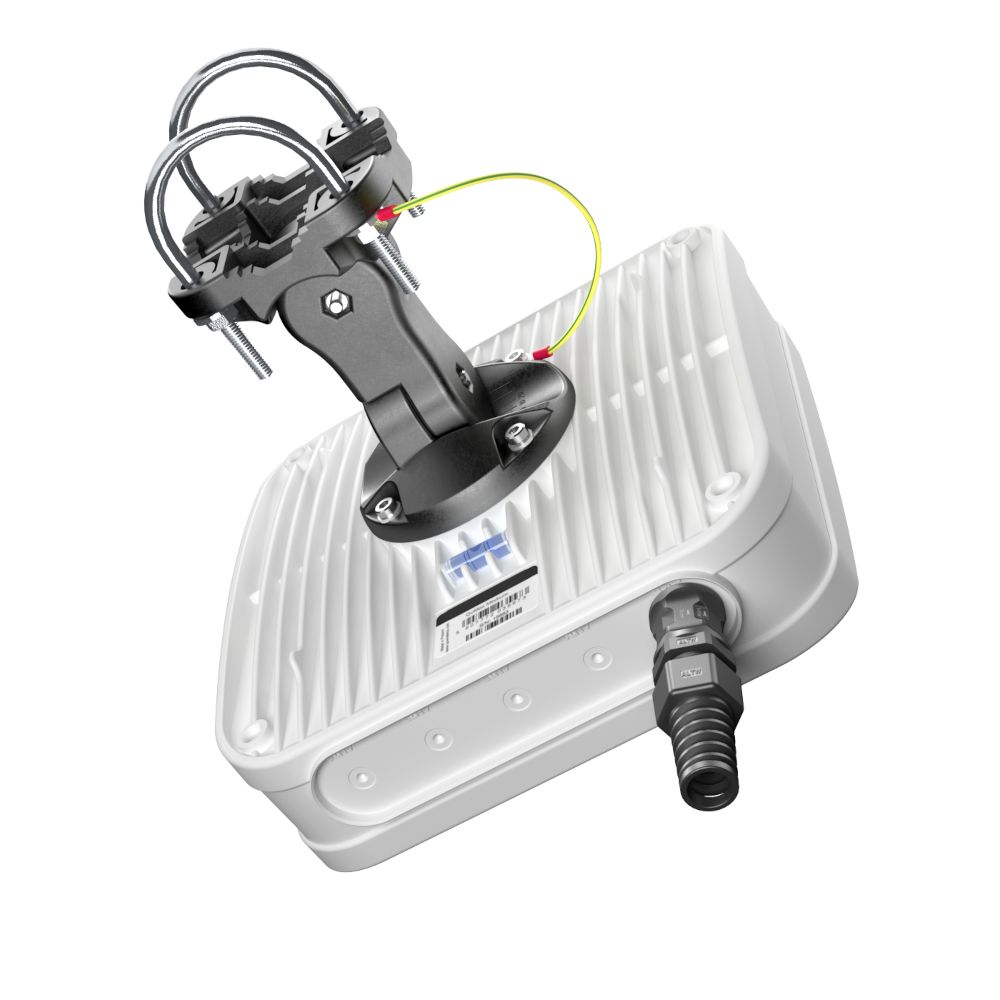

Mounting: Wall/Pole
Type: Combination
IP Rating: IP67
Dimensions: 272 x 279 x 96 mm RoHS and Reach Compliant
Weight: 1800g

5G / LTE

Frequency: 617 - 960 MHz; 1.7 - 2.7 GHz; 3.3 - 4.7 GHz; 5.2 - 6.0 GHz
Gain: 617 - 960 MHz: 3 dBi; 1.7 - 2.7 GHz: 4 dBi; 3.3 - 4.7 GHz: 4.5 dBi; 5.2 - 6.0 GHz: 2.5 dBi
Supported LTE Bands: 1, 2, 3, 4, 5, 7, 8, 9, 10, 12, 13, 14, 17, 18, 19, 20, 22, 25, 26, 27, 28, 29, 30, 33, 34, 35, 36, 37, 38, 39, 40, 41, 42, 43, 44, 47, 48, 49, 52, 53, 65, 66, 67, 68, 69, 71, 85, 103, 106
Supported 5G Bands: n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n34, n38, n39, n40, n41, n47, n48, n53, n65, n66, n67, n71, n77, n78, n80, n81, n82, n83, n84, n85, n86, n89, n90, n95, n97, n98, n100, n101, n256
VSWR: <1.80, max <2.00
Impedance: 50Ω
Polarization: Vertical
Beamwidth: 360°/35° +/- 5°
Connector Type: RJ45
Cable Type: n/a
