Description

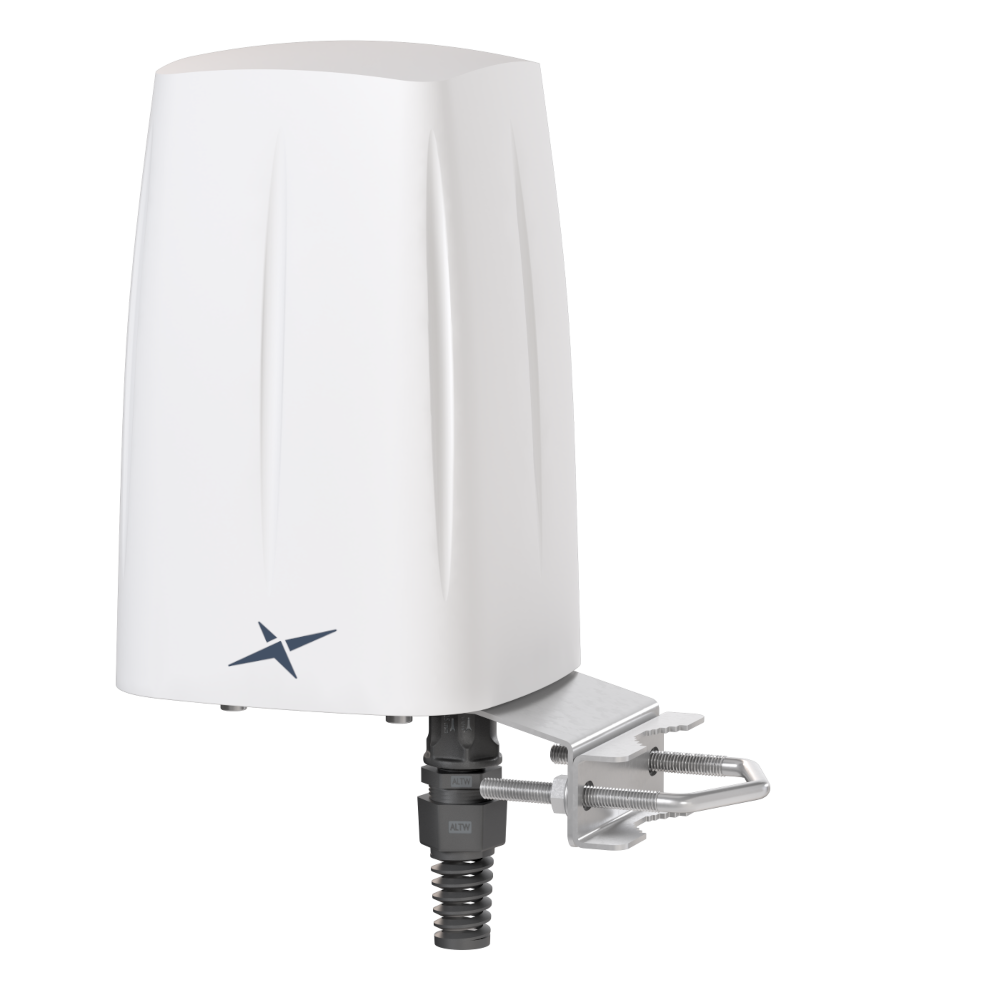

An integrated, all-in-one outdoor omnidirectional antenna enclosure designed to house a Semtech XR60 router, combining wideband cellular, Wi-Fi, and GNSS capability in a single rugged solution. The IP67-rated enclosure and included passive PoE splitter help simplify outdoor deployments by carrying data and power over one Ethernet run while supporting reliable connectivity in urban and rural environments.
- All-in-one integration: Multi-band cellular + Wi-Fi + GNSS antennas with a dedicated cavity for the Semtech XR60 router
- Outdoor-ready design: Robust IP67 waterproof enclosure for harsh environments

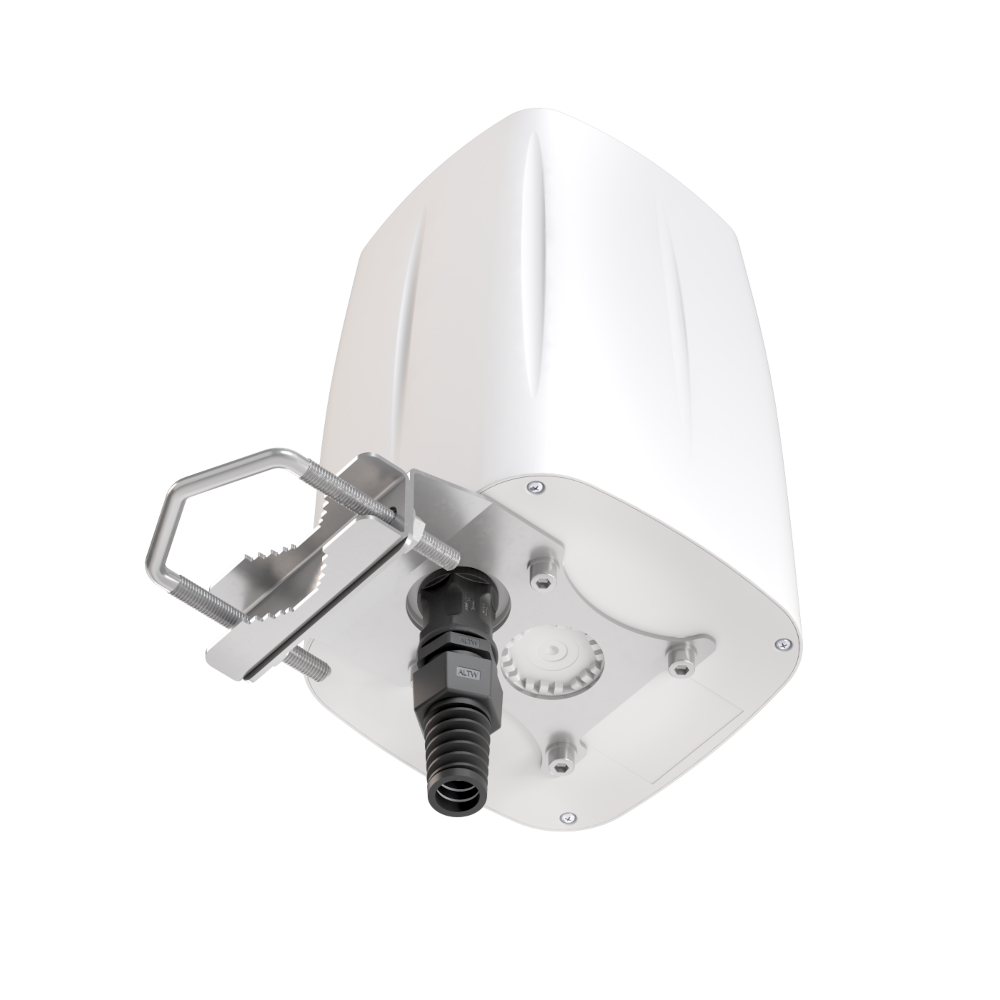

- Deployment flexibility: Wall / pole mounting support for fixed installations
- PoE support: Passive PoE splitter included to split data and power from a single Ethernet cable
Typical applications include: Remote and Hybrid Work Environments, Branch and Retail Locations, Industrial and Rugged Environments, High-Bandwidth Applications, Critical Communications and Public Safety, public transportation, energy, mining, and IoT.
Connections
4x 5G/LTE 617-6000MHz
2x Wi-Fi 2.4-2.5GHz / 5.0-7.2GHz
1x GNSS
Technical Specifications
Operating Temperature: From -40°C to 80°C
Antenna Technologies: MIMO
Cellular Technologies: 5G
Location: External
Mounting: Wall/Pole
Satellite Navigation: GNSS
Short-Range Wireless Standards: Wi-Fi
Type: Combination
IP Rating: IP67
Frequency Range: 600MHz - 7125MHz
Impedance: 50Ω
VSWR: <2
Dimensions: 160 x 160 x 240 mm RoHS and Reach Compliant
Weight: 1500g
5G/LTE (Omnidirectional MIMO)
Frequency: 617 - 960 MHz; 1.7 - 2.7 GHz; 3.3 - 4.7 GHz; 5.2 - 6.0 GHz
Gain: 617 - 960 MHz : 3 dBi
1.7 - 2.2 GHz : 4 dBi
3.3 - 4.7 GHz : 4.5 dBi
5.2 - 6.0 GHz : 2.5 dBi
Supported LTE Bands: 1, 2, 3, 4, 5, 7, 8, 9, 10, 12, 13, 14, 17, 18, 19, 20, 22, 25, 26, 27, 28, 29, 30, 33, 34, 35, 36, 37, 38, 39, 40, 41, 42, 43, 44, 47, 48, 49, 52, 53, 65, 66, 67, 68, 69, 71, 85, 103, 106
Supported 5G Bands: n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n34, n38, n39, n40, n41, n47, n48, n53, n65, n66, n67, n71, n77, n78, n80, n81, n82, n83, n84, n85, n86, n89, n90, n95, n97, n98, n100, n101, n256
VSWR: <1.80, max <2.00
Beamwidth: 360°/35° ±5°
Polarization: Vertical
Connector Type: 4x SMA
Cable Type: RG316
Wi-Fi (Wi-Fi 6E)
Frequency: 2.4 - 2.5 GHz; 5.0 - 7.2 GHz
Gain: 2.4 - 2.5 GHz: 6 dBi
5 GHz: 7.5 dBi
7 GHz: 7.5 dBi
VSWR: < 1.50, max < 2.00
Beamwidth: 360°/25°
Polarization: Vertical
Connector Type: 2x RPSMA
Cable Type: RG316
GNSS
Polarization: RHCP
Ethernet / PoE Interface
Connector Type: RJ45
