THOR70PP Antenna Outdoor 5G, GNSS, Wi-Fi 6E/7 wall/pole mount Thunder IP67 for Critical Communications and Public Safety, Transportation & Fleet Management, Industrial and Rugged Environments, Enterprise & IoT Deployments

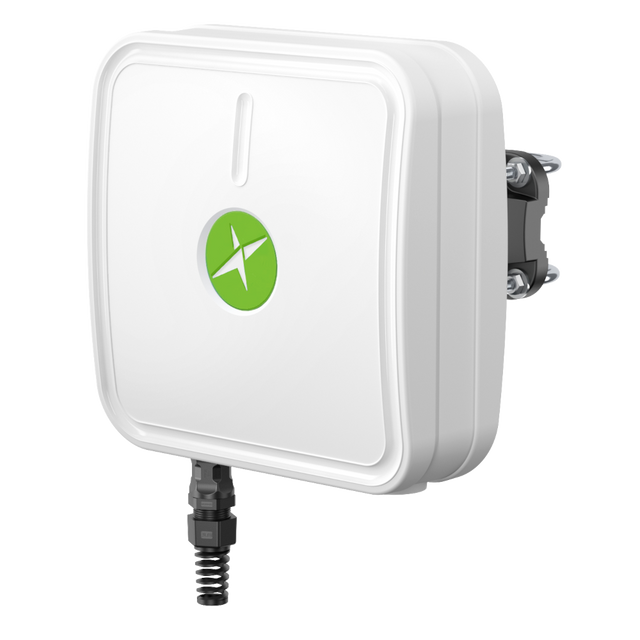

THOR70PP is an all-in-one outdoor omnidirectional antenna enclosure designed to integrate with the Ericsson (Cradlepoint) S700 router, combining multi-band 5G/LTE, Wi-Fi, and GNSS antenna performance in a single rugged housing.

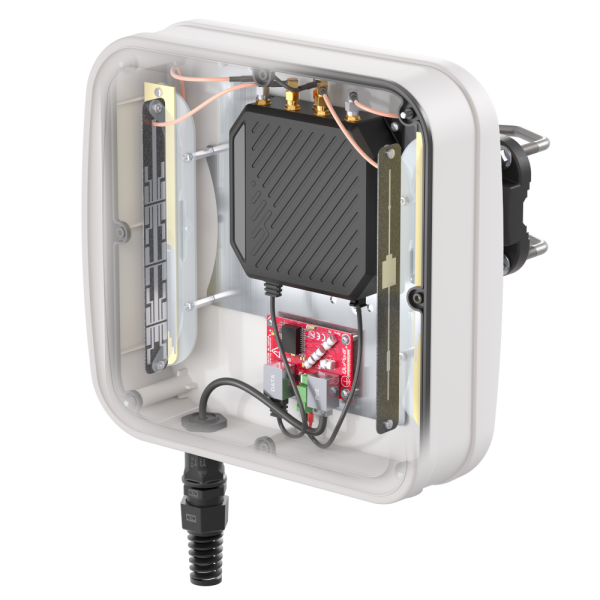

• All-in-one integration: Multi-band cellular, Wi-Fi, and GNSS antennas in one enclosure with space to install the Ericsson (Cradlepoint) S700.
• Outdoor-ready durability: Heavy-duty, fully waterproof enclosure built for harsh environments.
• Broad coverage: Designed to support wide frequency operation across cellular and Wi-Fi bands for mobile and fixed deployments.
• Included PoE accessory: Passive PoE splitter supports combining power and data over a single Ethernet run while maintaining gigabit transfer speeds and adding protection against faults.

Typical uses include mobile and fixed installations such as industrial and public deployments, CCTV, hotspots, yachts/boats, campers, and RVs.

Connections

1x GNSS
2x Wi-Fi®
2x 5G/LTE

Technical Specifications

Operating Temperature: From -40°C to 75°C
Cellular Technologies: 5G
Location: External

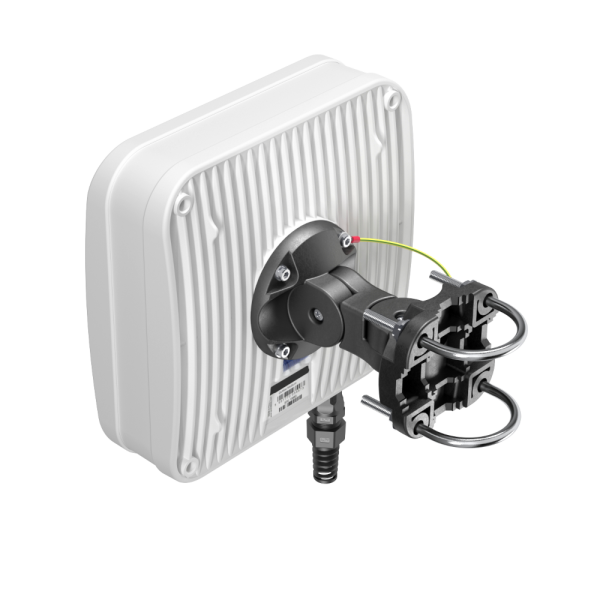

Mounting: Wall/Pole
Satellite Navigation: GNSS
Short-Range Wireless Standards: Wi-Fi
Type: Combination
IP Rating: IP67
Frequency Range: 600MHz - 7125MHz
Impedance: 50Ω
Connector Type: RJ45
Dimensions: 272 x 276 x 100 mm RoHS and Reach Compliant
Weight: 1.8 kg
Materials: ABS, aluminum, PTFE, Fiberglass
Tightening Torque: 0,6 - 0,8 Nm

5G / LTE

Quantity: 2x
Frequency: 617 - 960 MHz; 1.7 - 2.7 GHz; 3.3 - 4.7 GHz; 5.2 - 6.0 GHz
Supported LTE Bands: 1, 2, 3, 4, 5, 7, 8, 9, 10, 12, 13, 14, 17, 18, 19, 20, 22, 25, 26, 27, 28, 29, 30, 33, 34, 35, 36, 37, 38, 39, 40, 41, 42, 43, 44, 47, 48, 49, 52, 53, 65, 66, 67, 68, 69, 71, 85, 103, 106
Supported 5G Bands: n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n34, n38, n39, n40, n41, n47, n48, n53, n65, n66, n67, n71, n77, n78, n80, n81, n82, n83, n84, n85, n86, n89, n90, n95, n97, n98, n100, n101, n256
Gain: 617 - 960 MHz : 3 dBi; 1.7 - 2.2 GHz : 4 dBi; 3.3 - 4.7 GHz : 4.5 dBi; 5.2 - 6.0 GHz : 2.5 dBi
VSWR: <1.80, max <2.00
Beamwidth: 360°/35° ±5°
Polarization: Vertical

Wi-Fi

Quantity: 2x
Frequency: 2.4 - 2.5 GHz; 5.0 - 7.2 GHz
Gain: 2.4 - 2.5 GHz: 6 dBi; 5 GHz: 7.5 dBi; 7 GHz: 7.5 dBi
VSWR: < 1.50, max < 2.00
Beamwidth: 360°/25° +/- 5°
Polarization: Vertical

GNSS

Quantity: 1x
Polarization: RHCP
