Taoglas | SKU: TI.08.C.0111

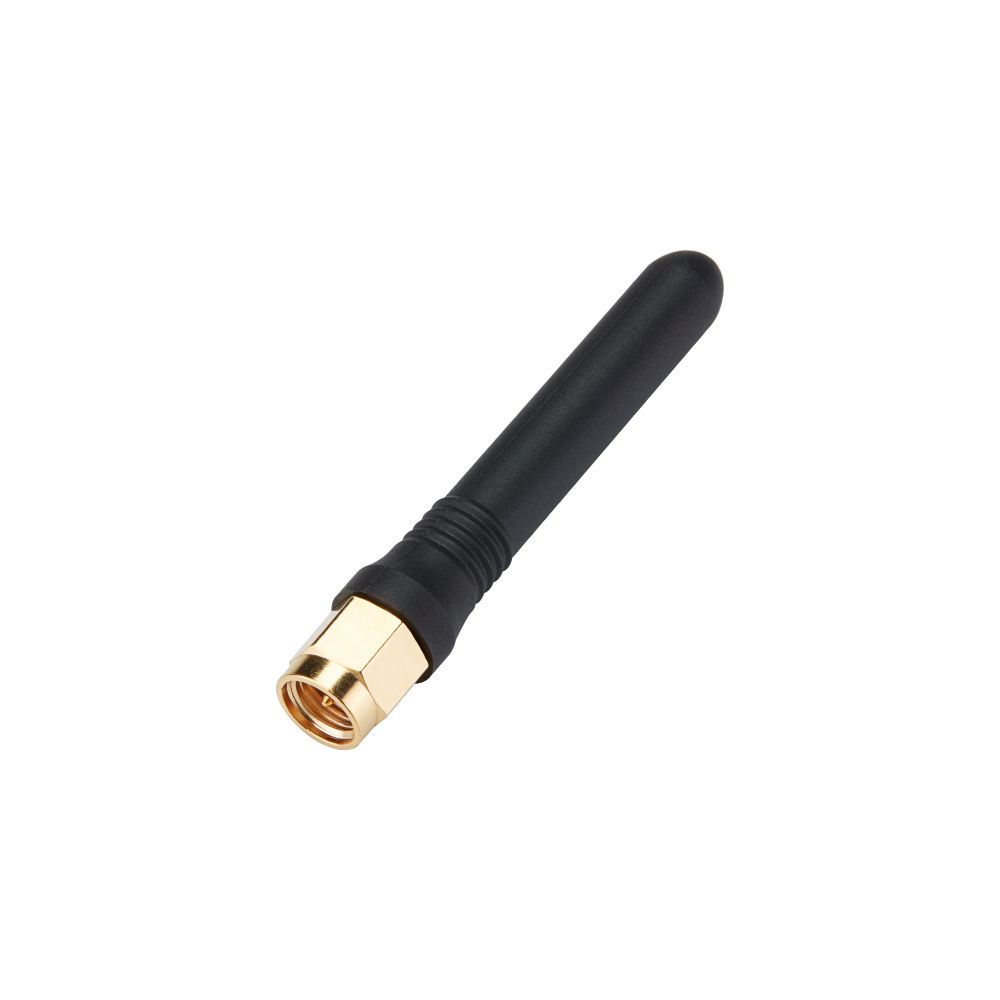

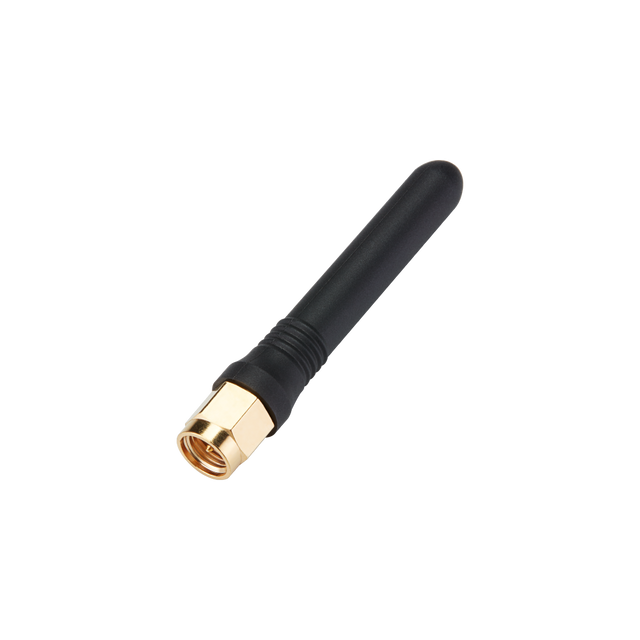

TI.08.C.0111 Antenna External ISM, LoRa terminal mount SMA-M for Remote Monitoring, Smart Metering, Mesh Networks, Helium Networks

Name: TI.08.C.0111 Antenna External ISM, LoRa terminal mount SMA-M for Remote Monitoring, Smart Metering, Mesh Networks, Helium Networks
Brand: Taoglas
SKU: TI.08.C.0111
Availability: OutOfStock

Unit Price excluding VAT. Shipping calculated at checkout.

Datasheet

PDF Download

Description

The TI.08.C.0111 is a compact ISM-band terminal-mount antenna designed for 868–915MHz LPWA deployments, including LoRa and Helium. It features an omni-directional radiation pattern and a robust, lightweight TPEE enclosure for use in demanding environments.

Typical use cases include remote monitoring, smart metering, mesh networks, Helium networks, and smart home devices.

Connector & Cable

Connector Type: SMA-M

Technical Specifications

Operating Temperature: -40°C to 85°C
Location: External
LPWAN & IoT Communication: LoRa
Mounting: Terminal Mount
Type: Single
Dimensions: Ø7 x 54 mm
Weight: 7g

ISM/LoRa

Frequency: 860-928 MHz
Impedance: 50 Ω
Polarization: Linear
VSWR: 1.5:1
Radiation Pattern: Omni
Max. Input Power: 2W
Peak Gain (Max): 1.87 dBi
Connector Type: SMA Male
