Description

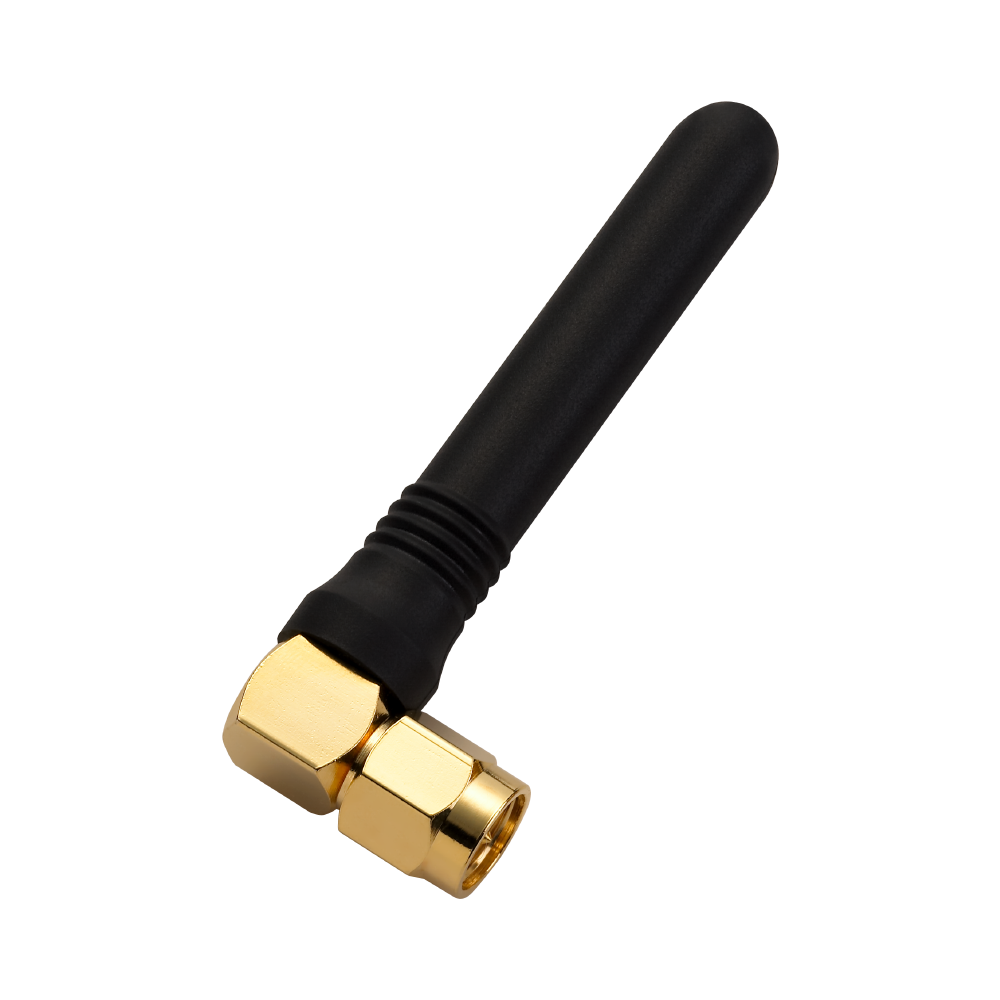

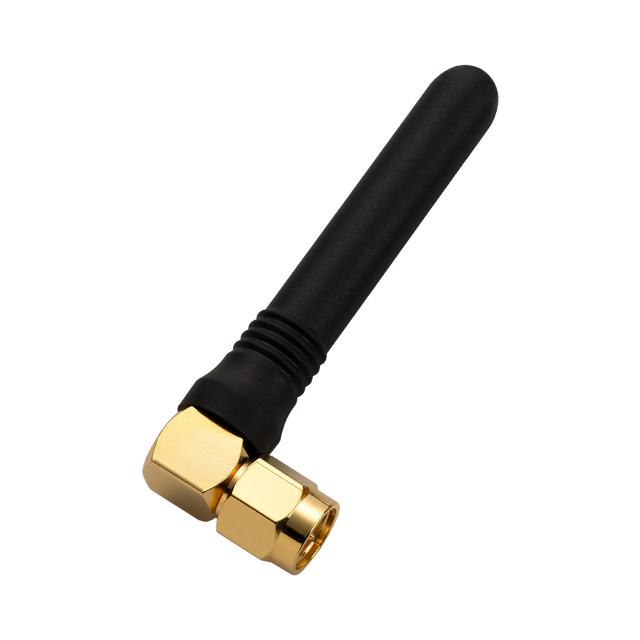

This compact terminal antenna is designed for reliable ISM-band connectivity in space-constrained devices. Its omni-directional dipole performance supports consistent links for a wide range of low-power wireless deployments, while the rugged housing helps suit demanding field installations.
Typical use cases include:
- Smart Lighting
- Remote Monitoring
- IoT (Internet of Things)
- Smart Metering
Connector & Cable
- Connector Type: SMA-Male Right Angle Connector
Technical Specifications
Operating Temperature: -40°C to +85°C
Antenna Technologies: Dipole
Location: External
LPWAN & IoT Communication: LoRa
Mounting: Terminal Mount
Type: Single
Dimensions: L:53mm Ø7mm
Weight: 7g
Casing: TPU
ISM / LoRa (868/915 MHz)
Frequency: 862-874 MHz; 910-920 MHz
Impedance: 50 Ω
Polarization: Linear
Radiation Pattern: Omni
VSWR: 1.5:1
Max. Input Power: 10W
Efficiency (%): 84.8 (862-874 MHz); 68.3 (910-920 MHz)
Average Gain (dB): -0.72 (862-874 MHz); -1.65 (910-920 MHz)
Peak Gain (dBi): 2.48 (862-874 MHz); 1.70 (910-920 MHz)
Connector Type: SMA(M) RA
Cable Length: n/a
