Description

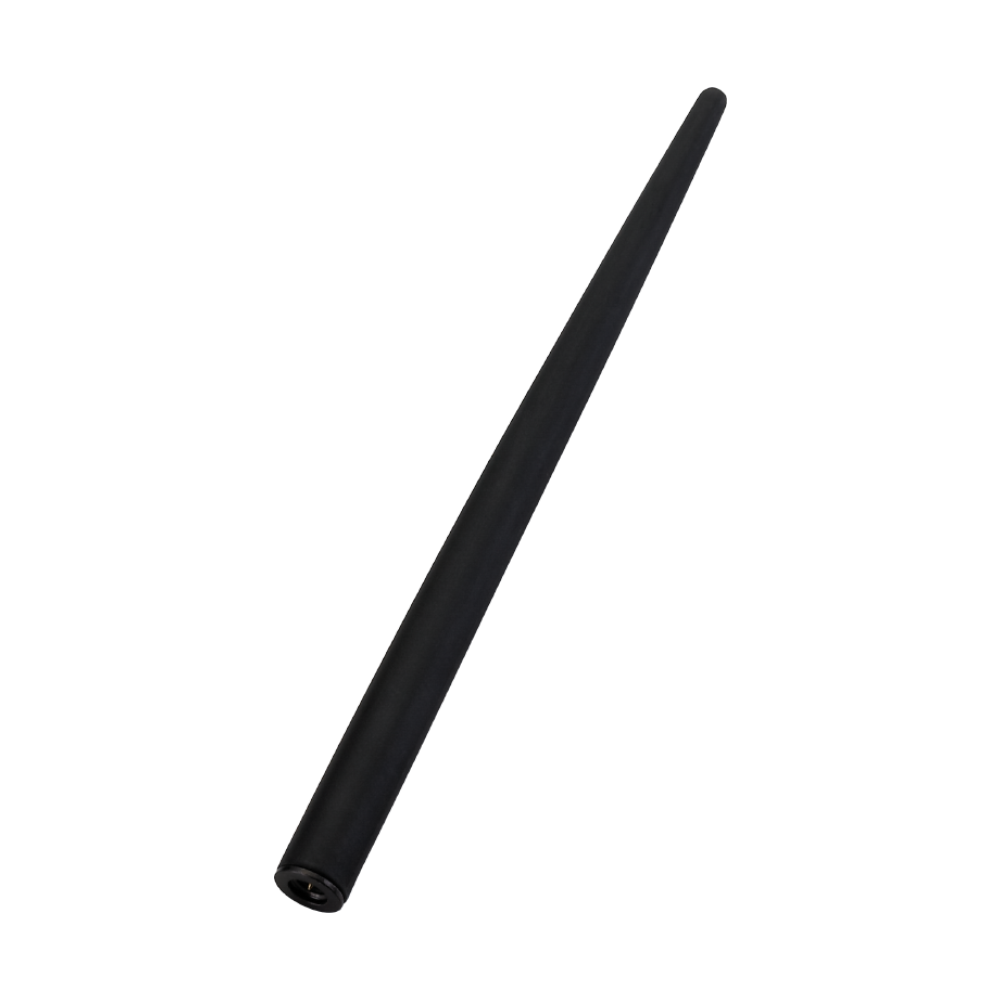

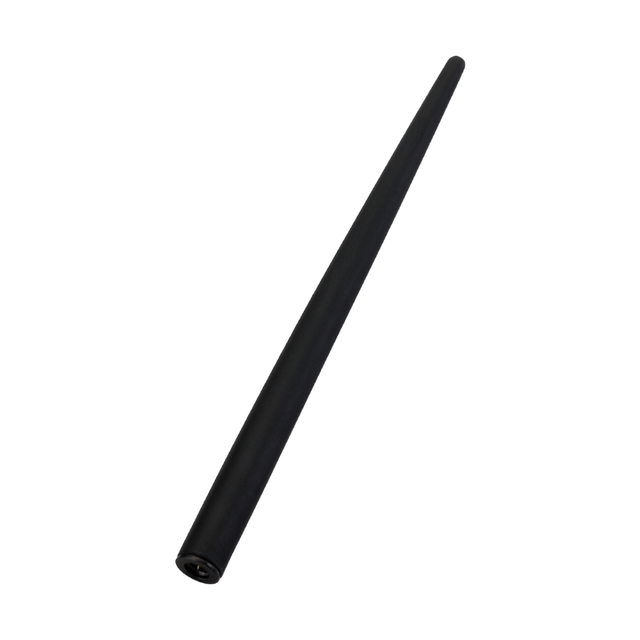

This 915MHz terminal-mount antenna is designed for ISM-band and LoRa deployments where reliable performance is needed in a compact, device-mounted form factor. Its dipole design delivers strong free-space performance and is well-suited for devices that may operate without an ideal ground plane.
- Optimized for 902–928MHz ISM band for LoRa networks
- High efficiency performance for consistent connectivity
- Rugged TPU construction suitable for outdoor use when required
- Omni-directional radiation pattern for broad coverage
Typical use cases: Smart Metering, Remote Monitoring, Industrial IoT, Connected Enterprise
Connector & Cable
- Connector Type: SMA-M
Technical Specifications
Operating Temperature: -40°C to +85°C
Antenna Technologies: Dipole
Location: External
LPWAN & IoT Communication: LoRa
Mounting: Terminal Mount
Short-Range Wireless Standards: ISM
Type: Single
Dimensions: 168*Ø12mm
Weight: 20.5g
Material: TPU
RoHS & REACH Compliant: Yes
ISM / LoRa (915MHz)
Frequency: 902-928 MHz
Impedance: 50 Ω
VSWR: 1.5:1
Polarization: Vertical
Radiation Pattern: Omni
Gain (Max): 0.1 dBi
Peak Gain (Free space): -0.89 dBi
Efficiency (Free space): 47.8%
Efficiency (On 9 x 15cm ground plane): 57.0%
Efficiency (On 15 x 9cm ground plane): 48.0%
Connector Type: SMA (M) ST
