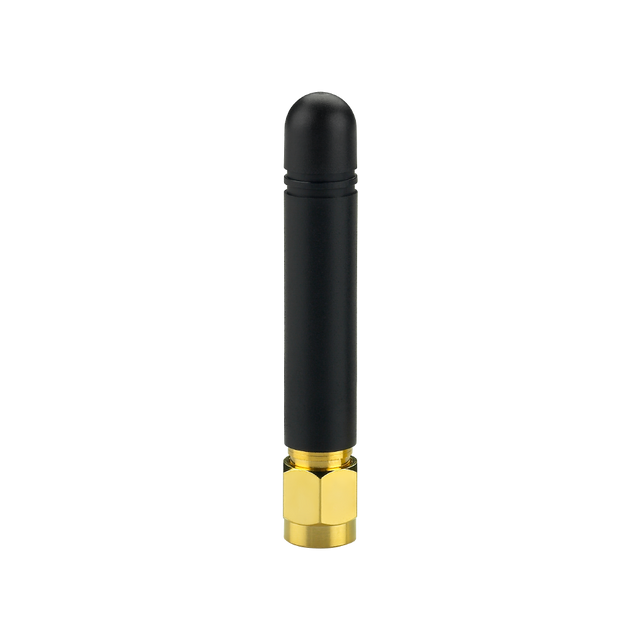

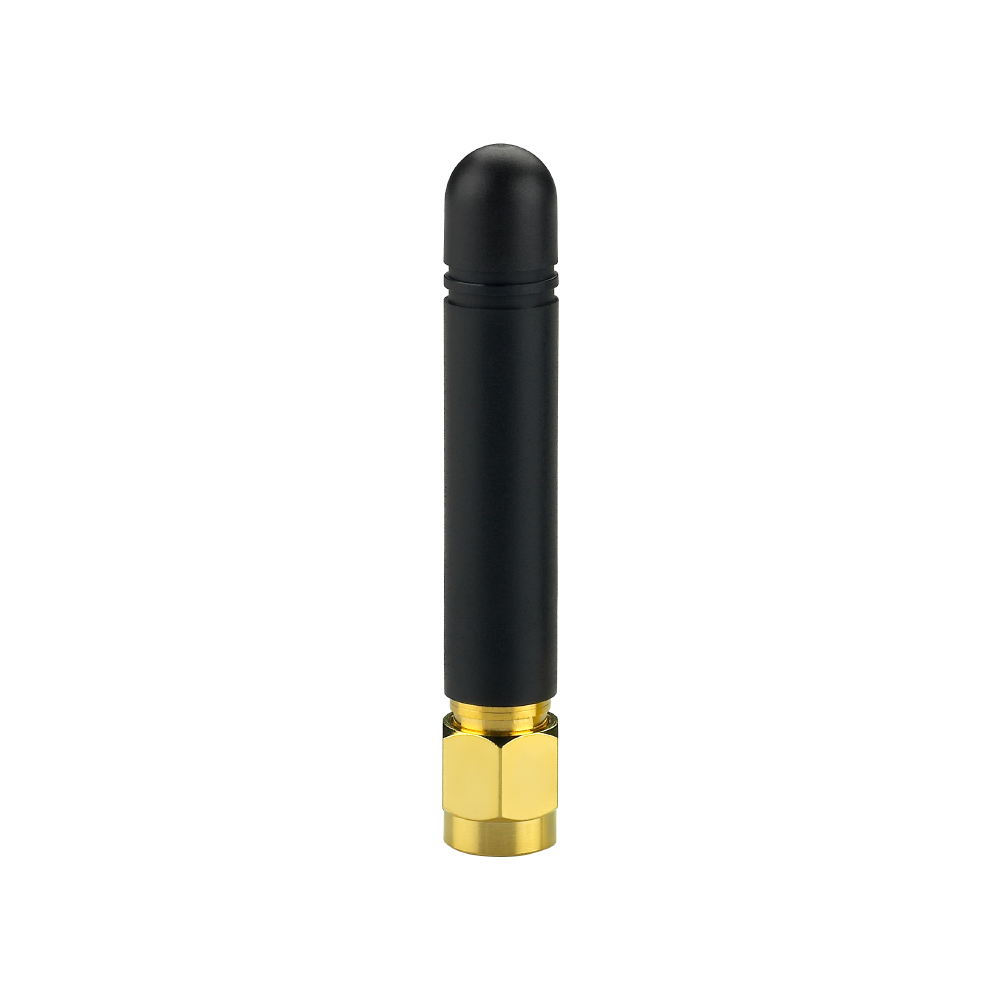

TI.10.0111 Antenna External ISM, LoRa terminal straight SMA-M IP65

This compact 433MHz terminal antenna is designed for reliable omni-directional performance in ISM/LoRa devices where rugged handling and a low-profile form factor are required.

• 433MHz ISM band coverage: suited to sub-GHz ISM applications, including LoRa deployments
• Omni-directional radiation pattern: helps maintain consistent link performance across orientations
• Robust construction: durable TPE housing for tougher operating environments
• Ingress protection: IP65-rated enclosure

Connector & Cable

• Connector Type: SMA-M

Technical Specifications

Operating Temperature: -40°C to +85°C
Location: External
LPWAN & IoT Communication: LoRa
Mounting: Terminal Mount
Type: Single
Frequency: 433.05~434.79 MHz
Impedance: 50Ω
VSWR: ≤1.5:1
Polarization: Linear
Radiation Pattern: Omni-Directional
Max. Input Power: 5W
Efficiency (%): 36
Average Gain (dB): -4.5
Peak Gain (dBi): -1.4
IP Rating: IP65
Dimensions: L:48mm Ø8mm RoHS and REACH Compliant
Weight: 8.5g
Housing: TPE
