Description

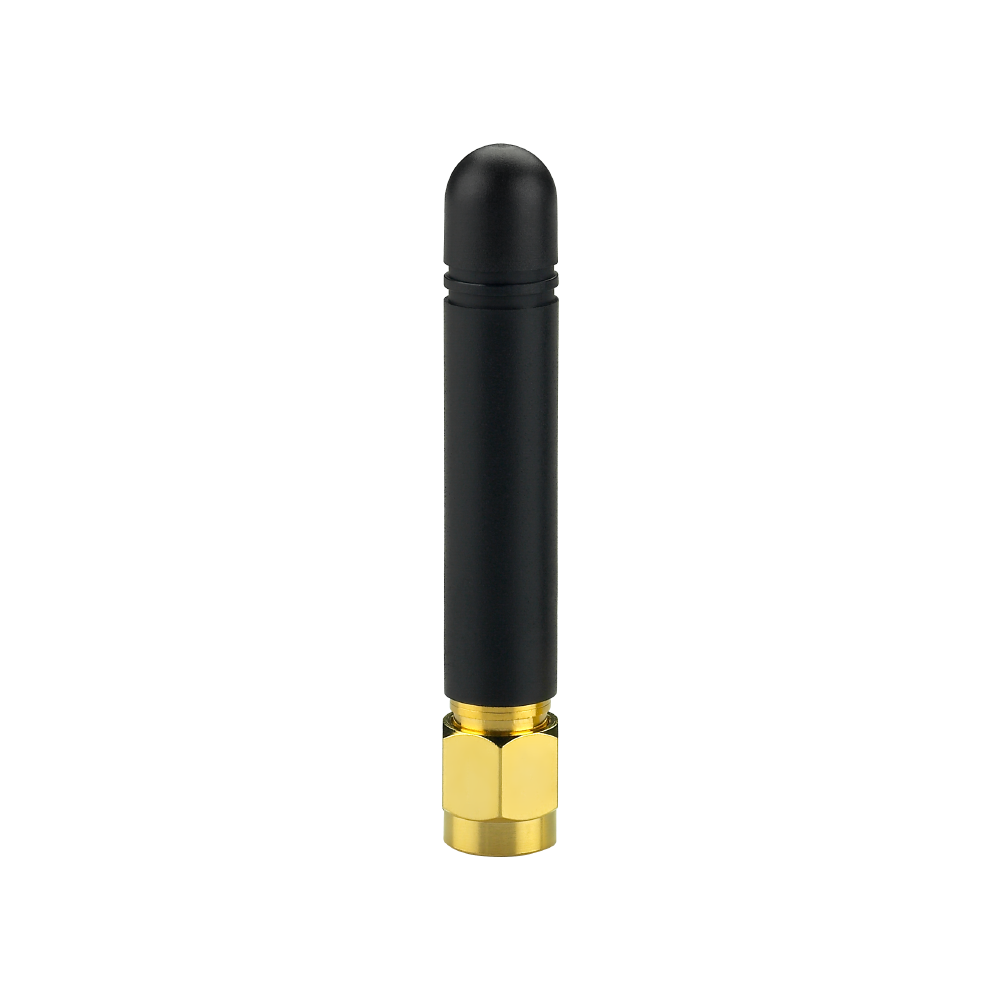

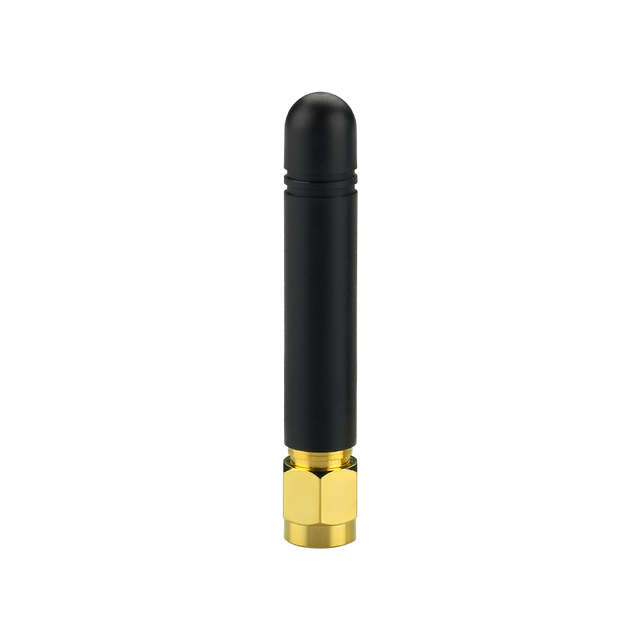

This robust miniature terminal antenna is designed for 433MHz ISM/LoRa operation in demanding high-temperature environments. Its low-profile, durable housing supports placement close to heat-generating components while maintaining an omni-directional radiation pattern for reliable reception and transmission.
- Designed for high-temperature installations with a rugged, low-profile form factor
- Optimized for 433MHz ISM/LoRa applications needing consistent coverage
- Ideal for space-constrained devices where a terminal-mounted antenna is preferred
Connector & Cable
- Connector Type: SMA-M
Technical Specifications
Operating Temperature: -40°C to +150°C
Location: External
LPWAN & IoT Communication: LoRa
Mounting: Terminal Mount, Connector Mount
Short-Range Wireless Standards: ISM
Type: Single
IP Rating: IP65
Storage Temperature: -40°C to +105°C
Relative Humidity: 40% to 95%
Dimensions: Length: 48.2mm; Ø7.8mm
Weight: 8.5g
ISM / LoRa (433 MHz)
Frequency: 433.05~434.79MHz
Standards: 433MHz ISM Band
Polarization: Linear
Impedance: 50 Ohms
VSWR: ≤1.5:1
Return Loss: -17dB
Peak Gain: 0dBi
Power handling: 5 W
Radiation Pattern: Omni-directional
Connector Type: SMA(M) plug (Straight)
