Description

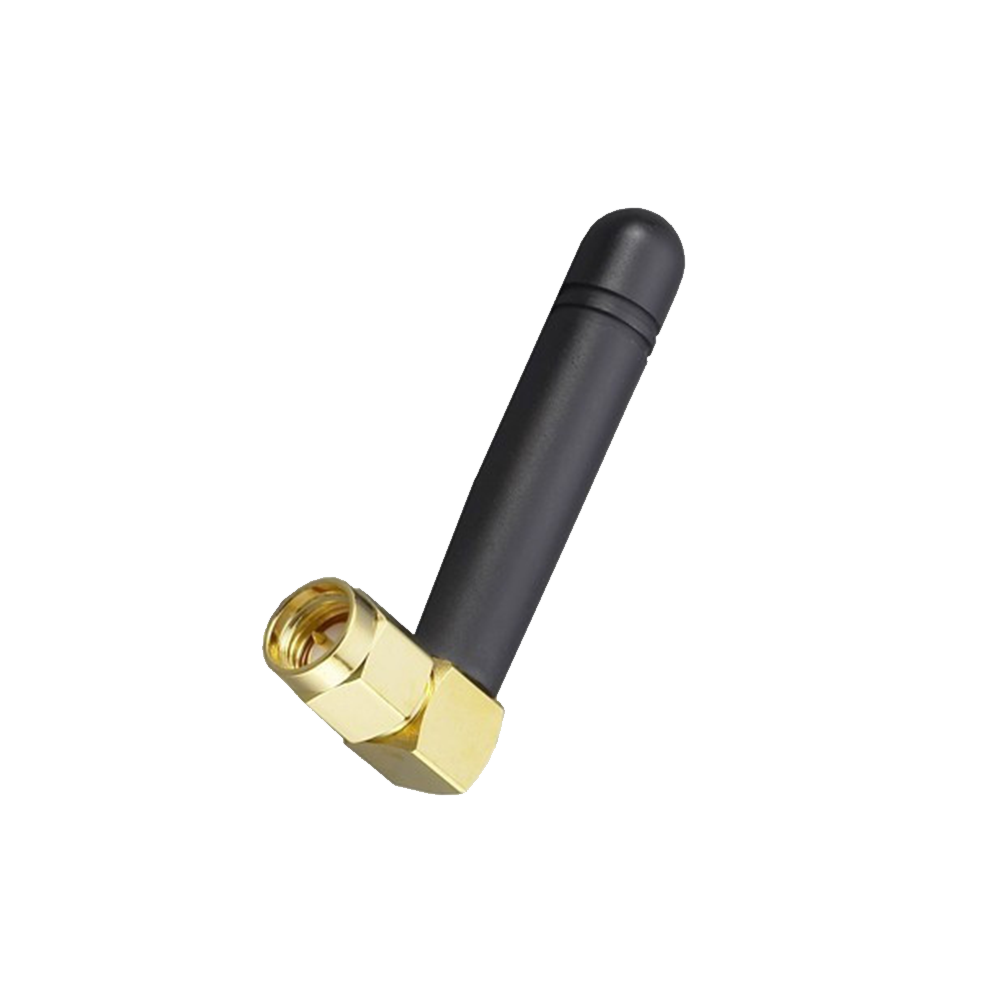

This compact 433MHz terminal antenna is designed for reliable omni-directional reception and transmission in mobile, small form factor devices. Its low-profile, robust design supports dependable performance in tough environments.
- Omni-directional performance for consistent connectivity
- Compact, low-profile form factor suited to space-constrained devices
- Rugged housing designed for robust handling
- Ingress protection suitable for harsher environments
Connector & Cable
- Connector Type: SMA-Male Right Angle (SMA(M)RA) Plug
Technical Specifications
Operating Temperature: -40°C to +85°C
Antenna Technologies: Monopole, Helical
Location: External
Mounting: Terminal Mount
LPWAN & IoT Communication: LoRa
Short-Range Wireless Standards: ISM
Type: Single
IP Rating: IP65
Dimensions: Length: 44.8mm
Weight: 8.5g
433MHz ISM Band
Frequency: 433.05-434.79MHz
Impedance: 50 Ohms
Peak Gain: 0dBi
Return Loss: -20dB
VSWR: ≤1.5:1
Polarization: Linear
Radiation Pattern: Omni-directional
Power Handling: 5 W
Connector Type: SMA(M)RA Plug
